DTC B15D0: MOST Communication Malfunction: Wiring Diagram

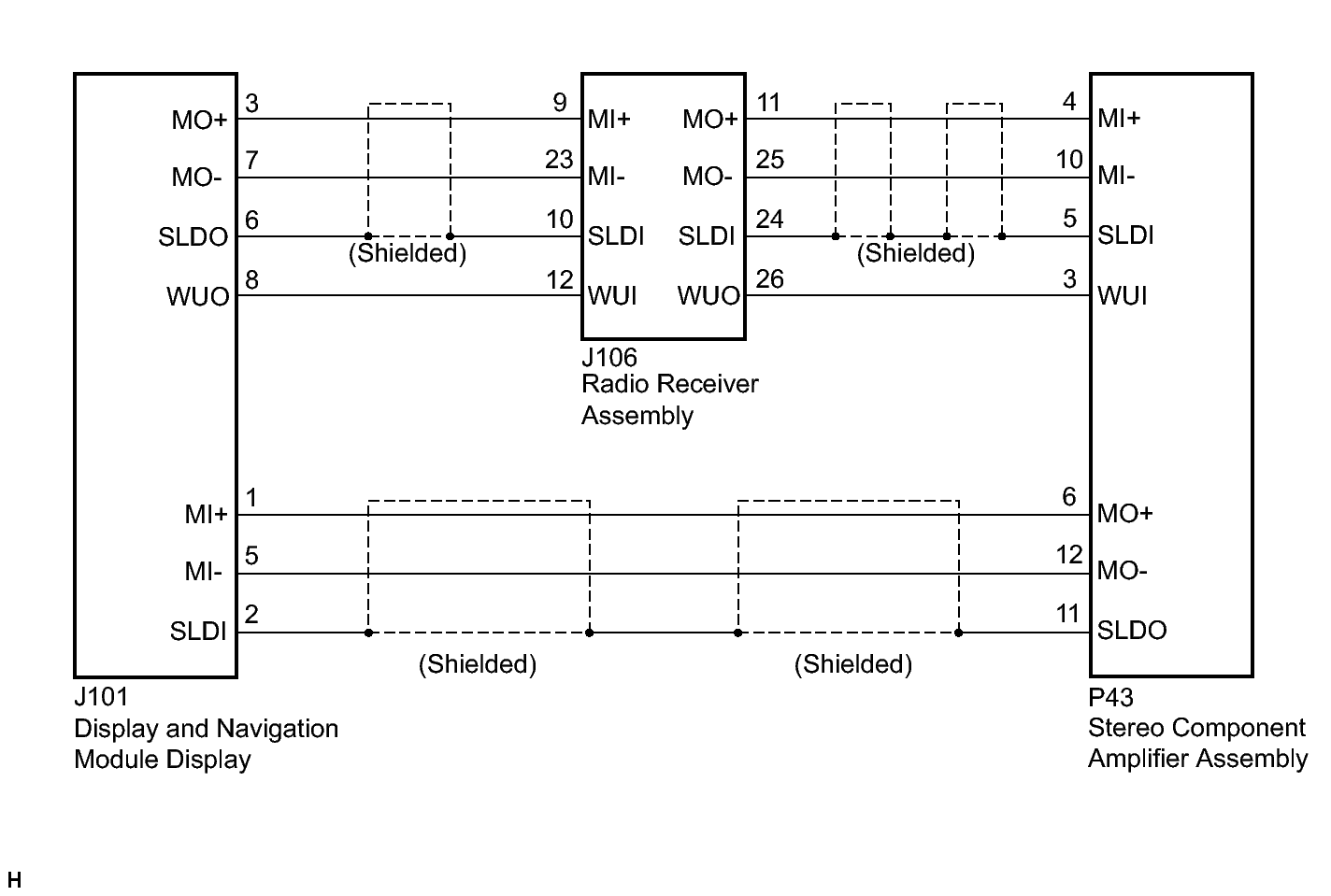

Fig 1: Identifying MOST Communication Line Circuit Wiring Diagram

GTY273686

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
