DTC B15C2: Speed Signal Malfunction: Wiring Diagram

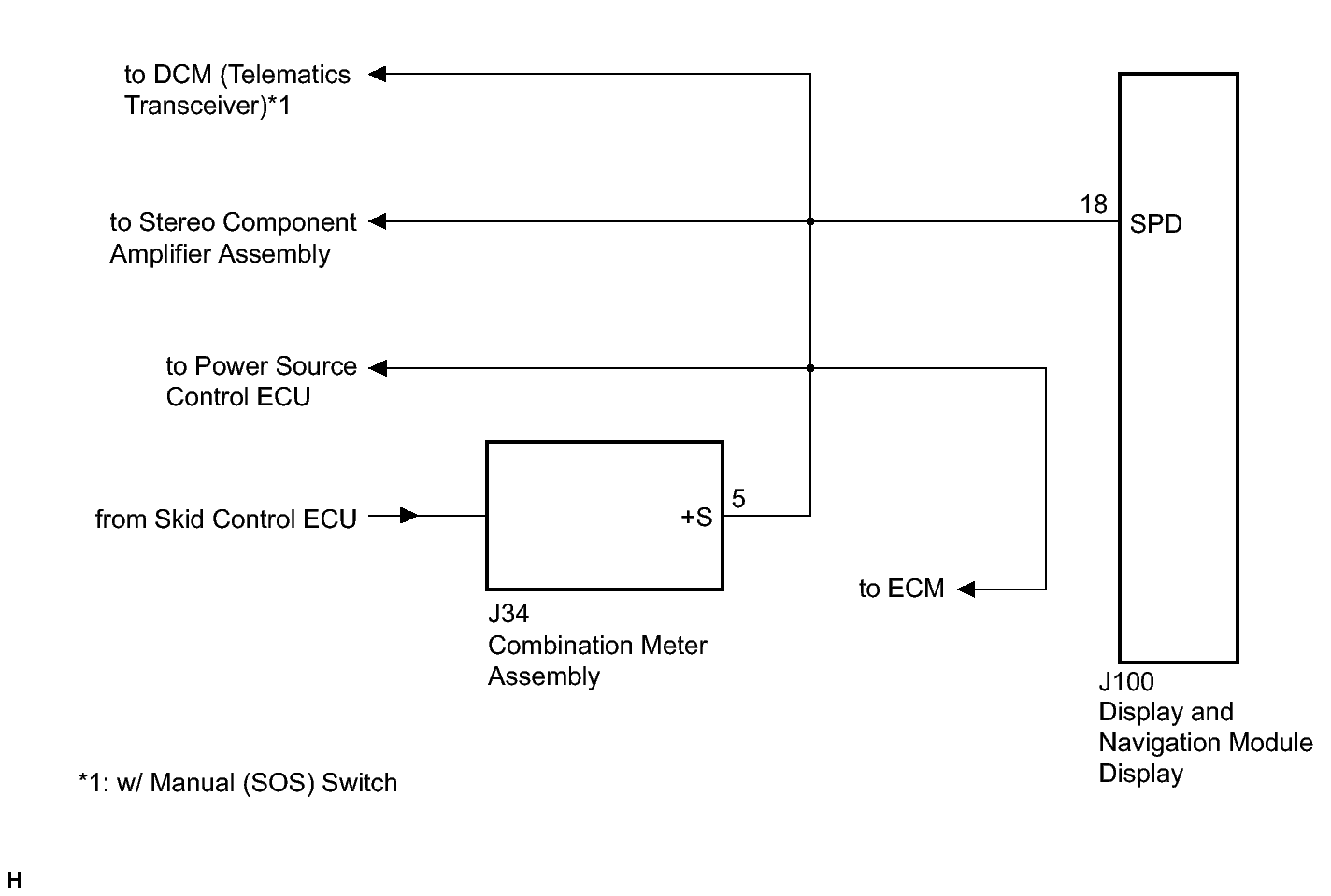

Fig 1: Identifying Speed Signal Circuit Wiring Diagram

GTY287442

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
