DTC B1591: No Response from Audio HU; DTC B15D1: Audio HU Disconnected: Wiring Diagram

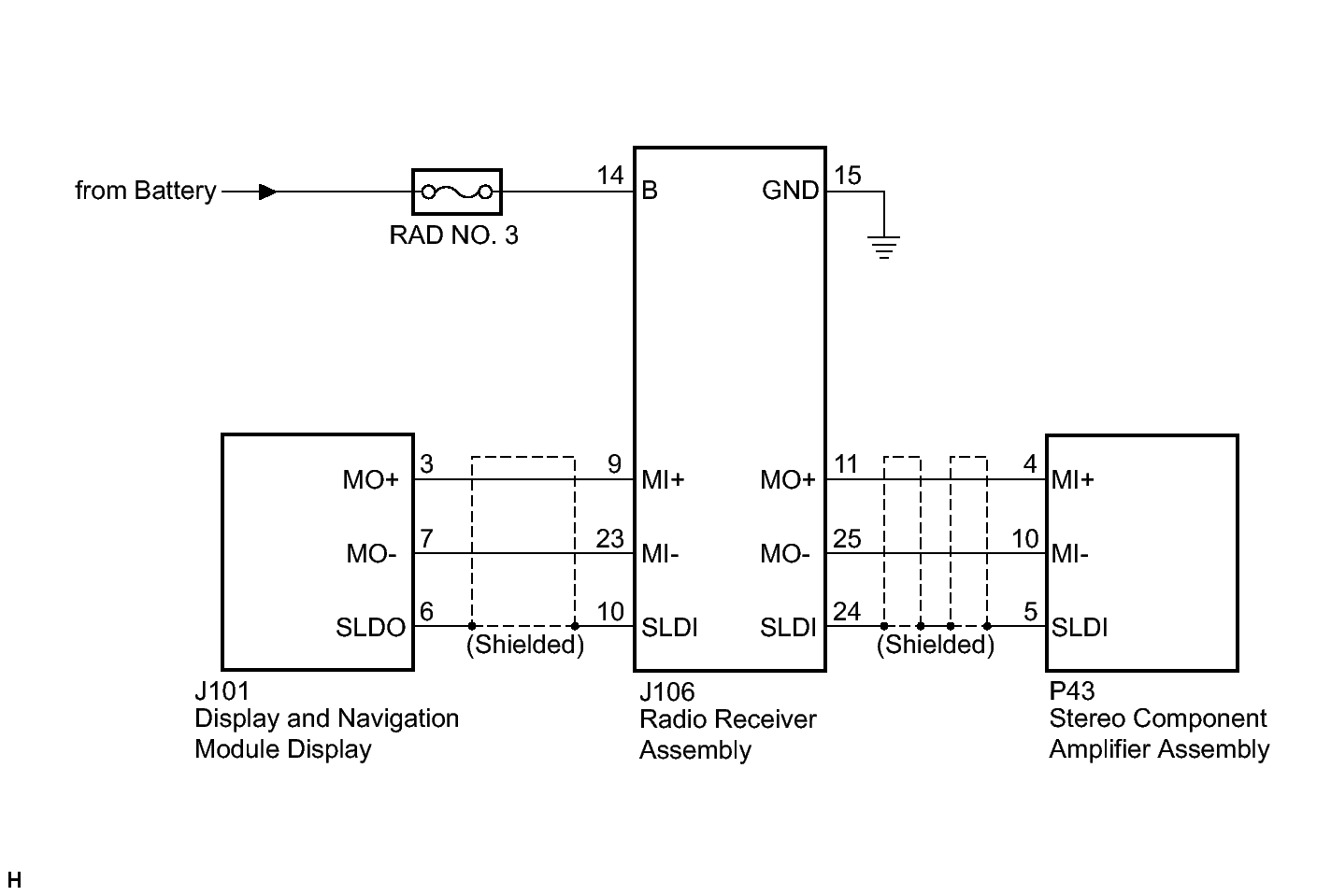

Fig 1: Radio Receiver Assembly Wiring Diagram

GTY273326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
