DTC B15D0: MOST Communication Malfunction: Wiring Diagram

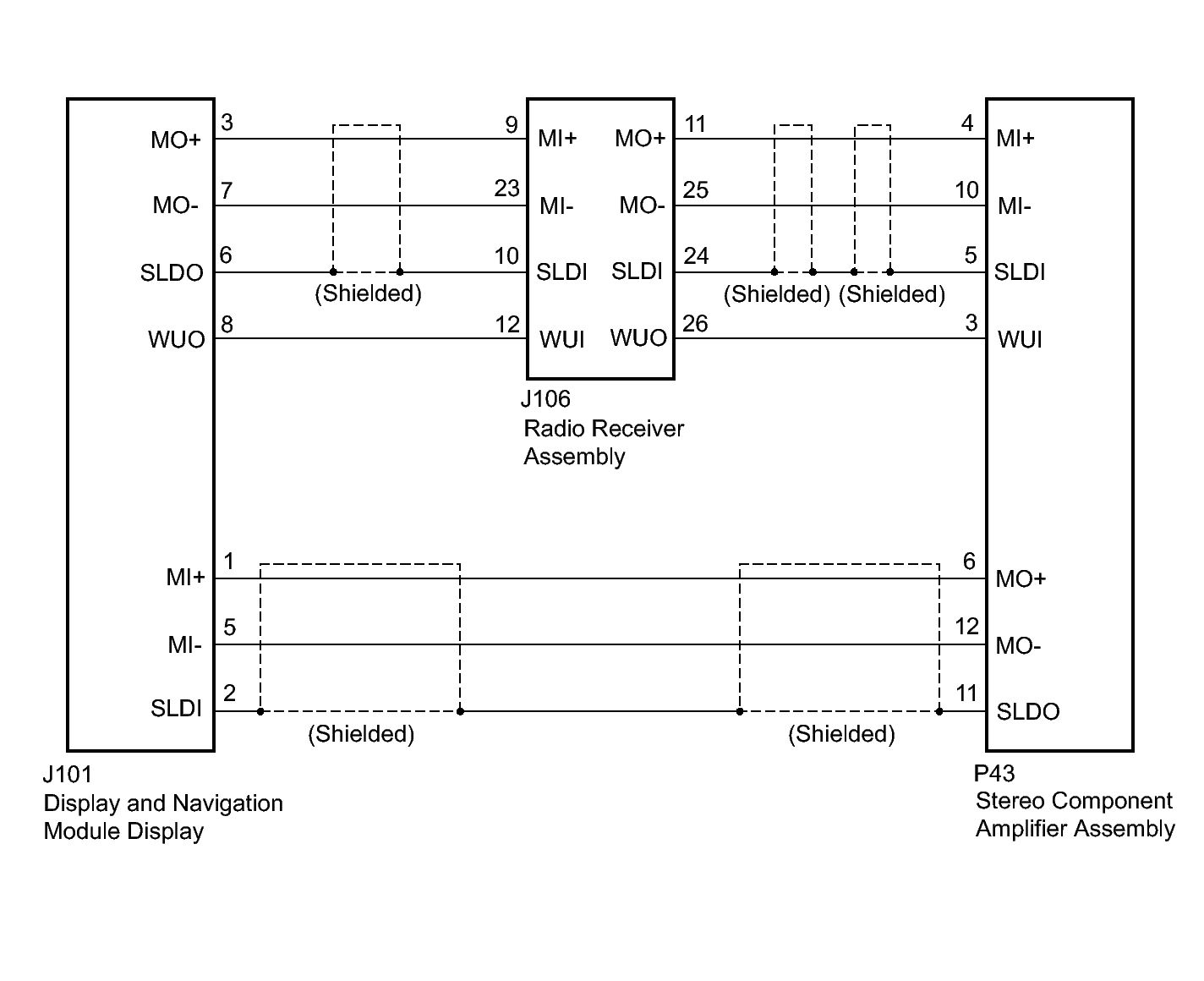

Fig 1: Identifying Stereo Component Amplifier Assembly Wiring Diagram

GTY350910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
