DTC B1591: No Response from Audio HU; DTC B15D1: Audio HU Disconnected: Wiring Diagram

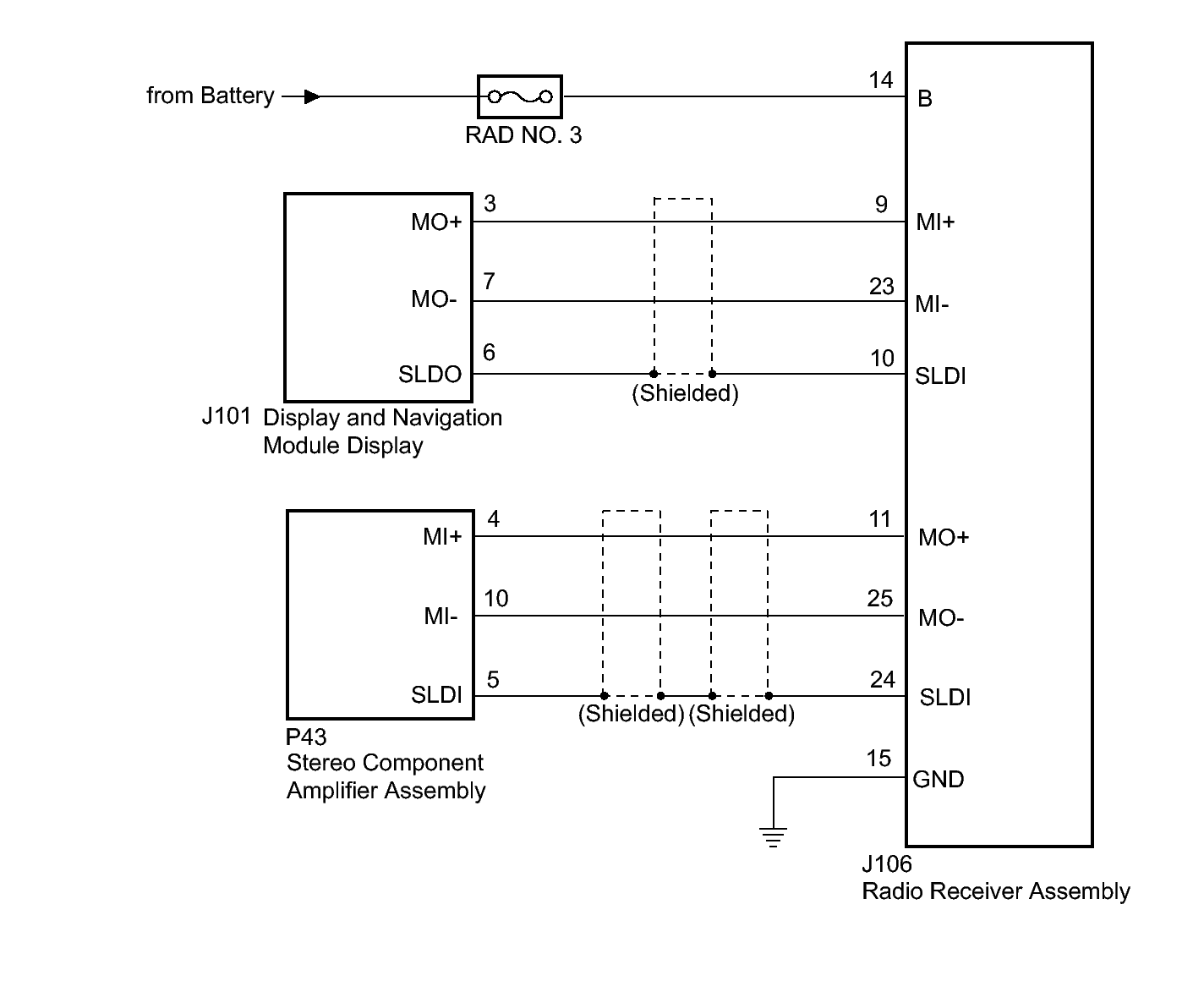

Fig 1: Identifying Display And Navigation Module Display Wiring Diagram
GTY349752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
