DTC B156B: Multi-media Interface ECU Disconnected; DTC B156E: No Response from Multi-media Interface ECU: Wiring Diagram

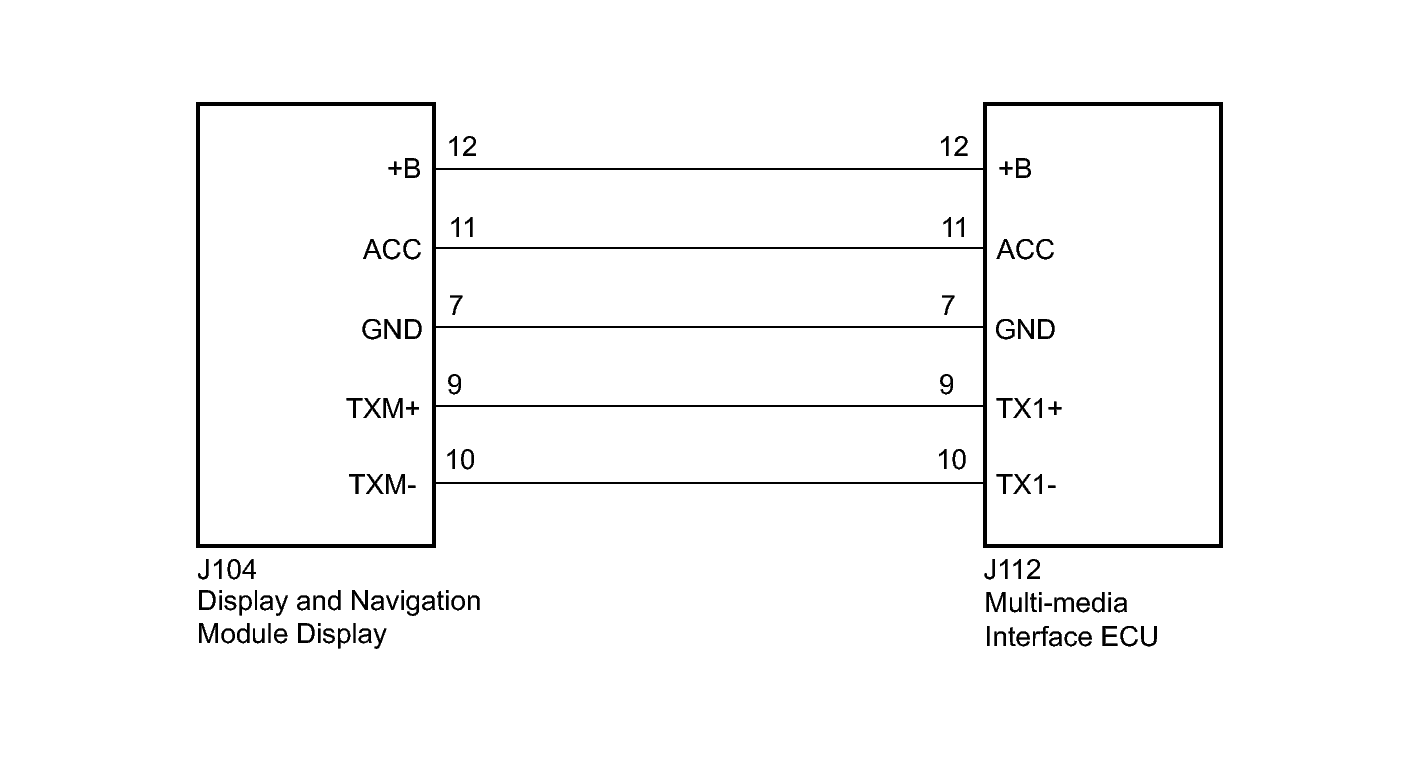

Fig 1: Identifying Display And Navigation Module Display Wiring Diagram
GTY347951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
