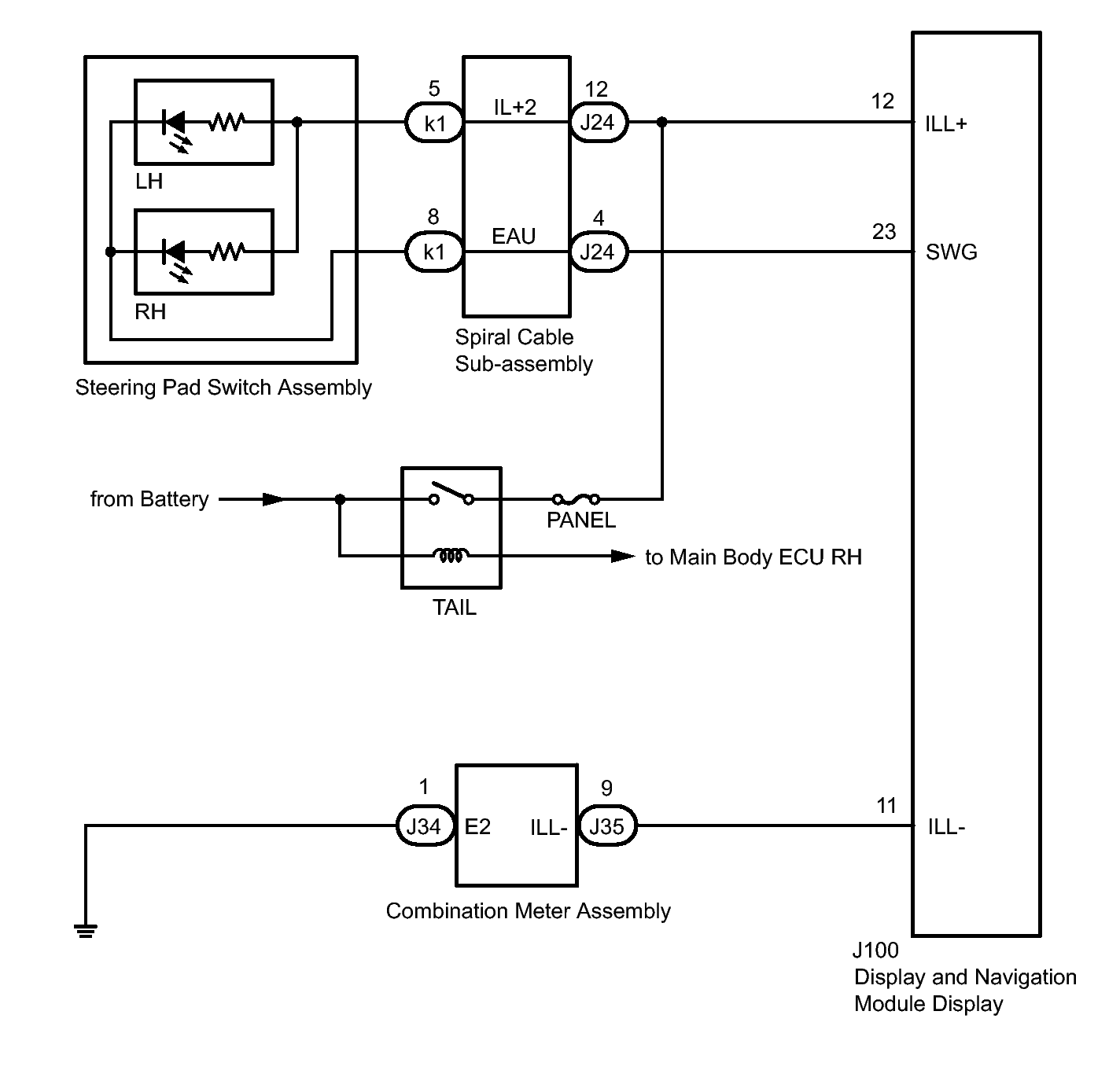

Home >> Lexus >> 2012 >> IS F >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Navigation System (For DVD) (Diagnostic Codes & Symptom Tests) >> NAVIGATION SYSTEM (for DVD) >> Circuit Tests >> Illumination Circuit >> Wiring Diagram
