Combination Meter: Components: Illustration

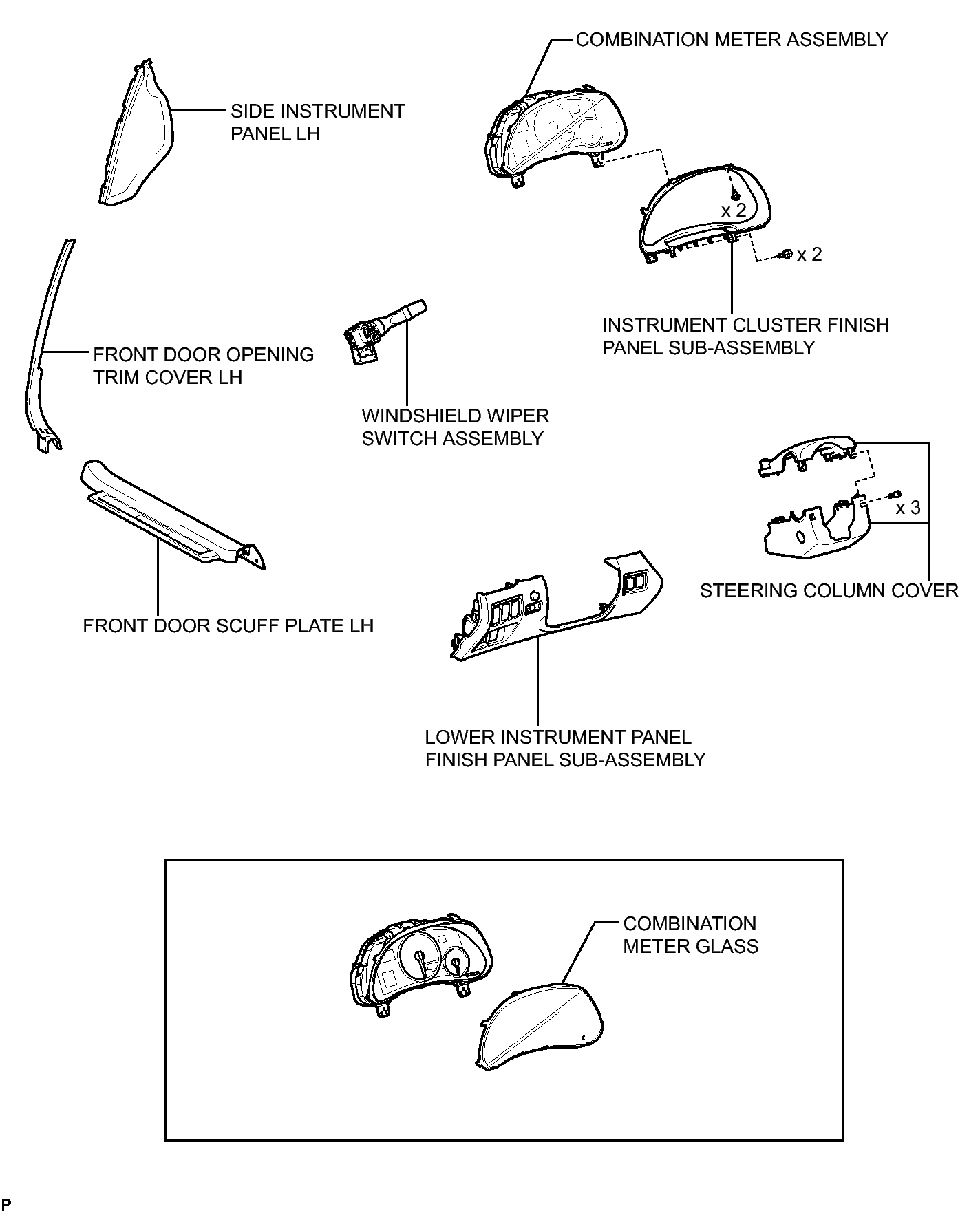

Fig 1: Identifying Combination Meter Replacement Components

GTY357172

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
