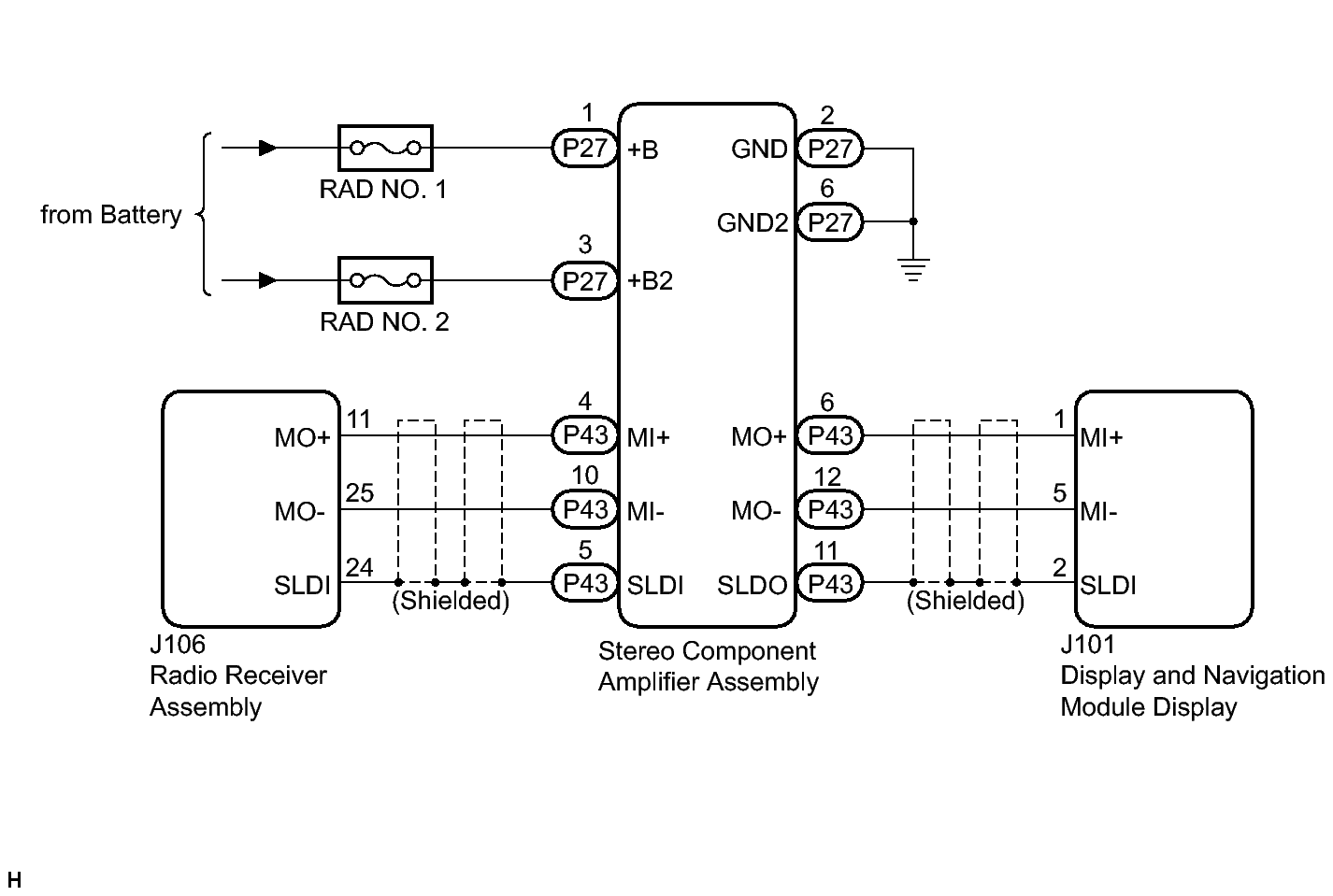

DTC B1593: No Response from Stereo Component Amplifier; DTC B15D3: Stereo Component Amplifier Disconnected: Wiring Diagram

Fig 1: Stereo Component Amplifier Assembly Connector End View
GTY394945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
