Meter / Gauge / Display (Service Information): Clock: Components: Illustration

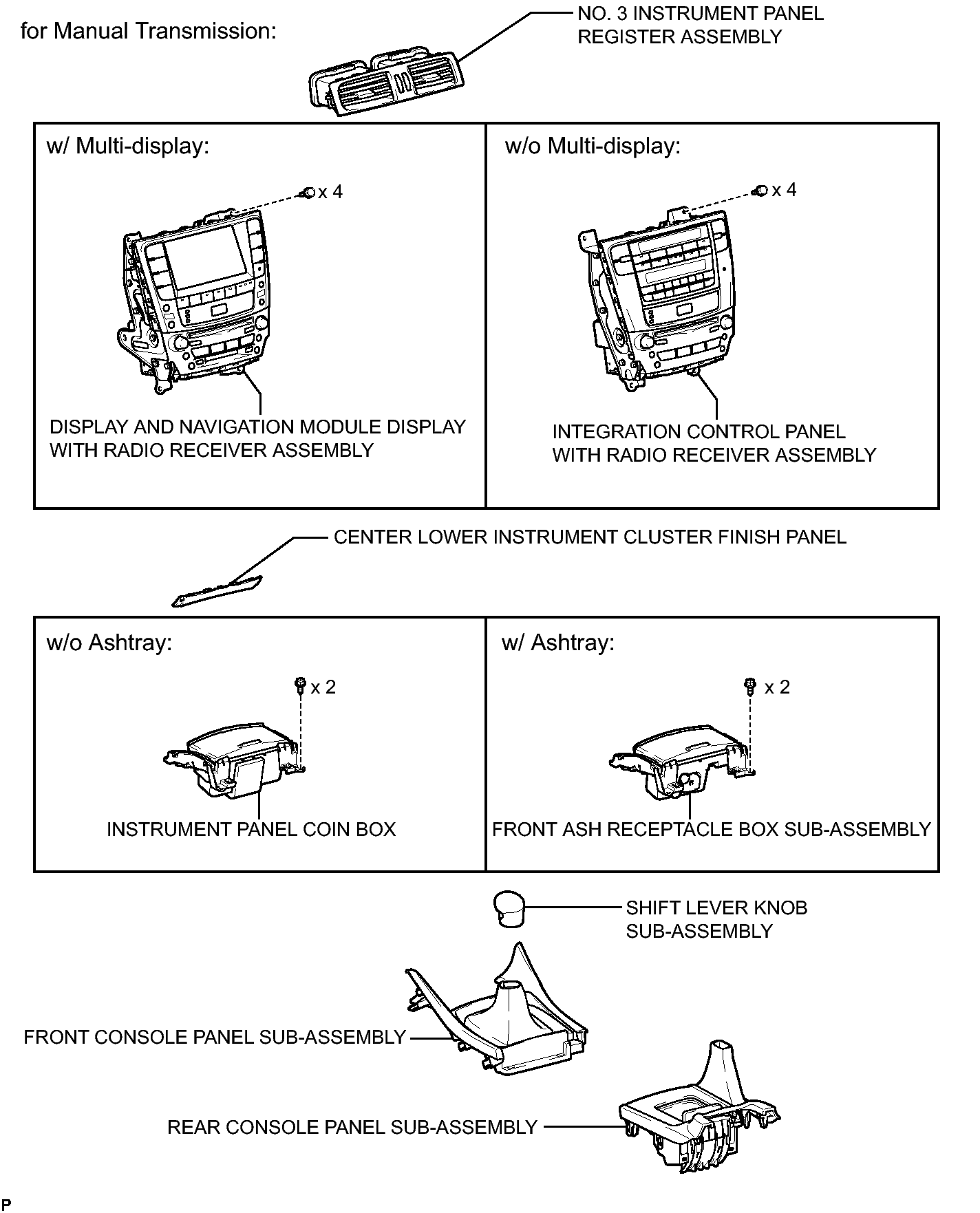

Fig 1: Identifying Clock Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

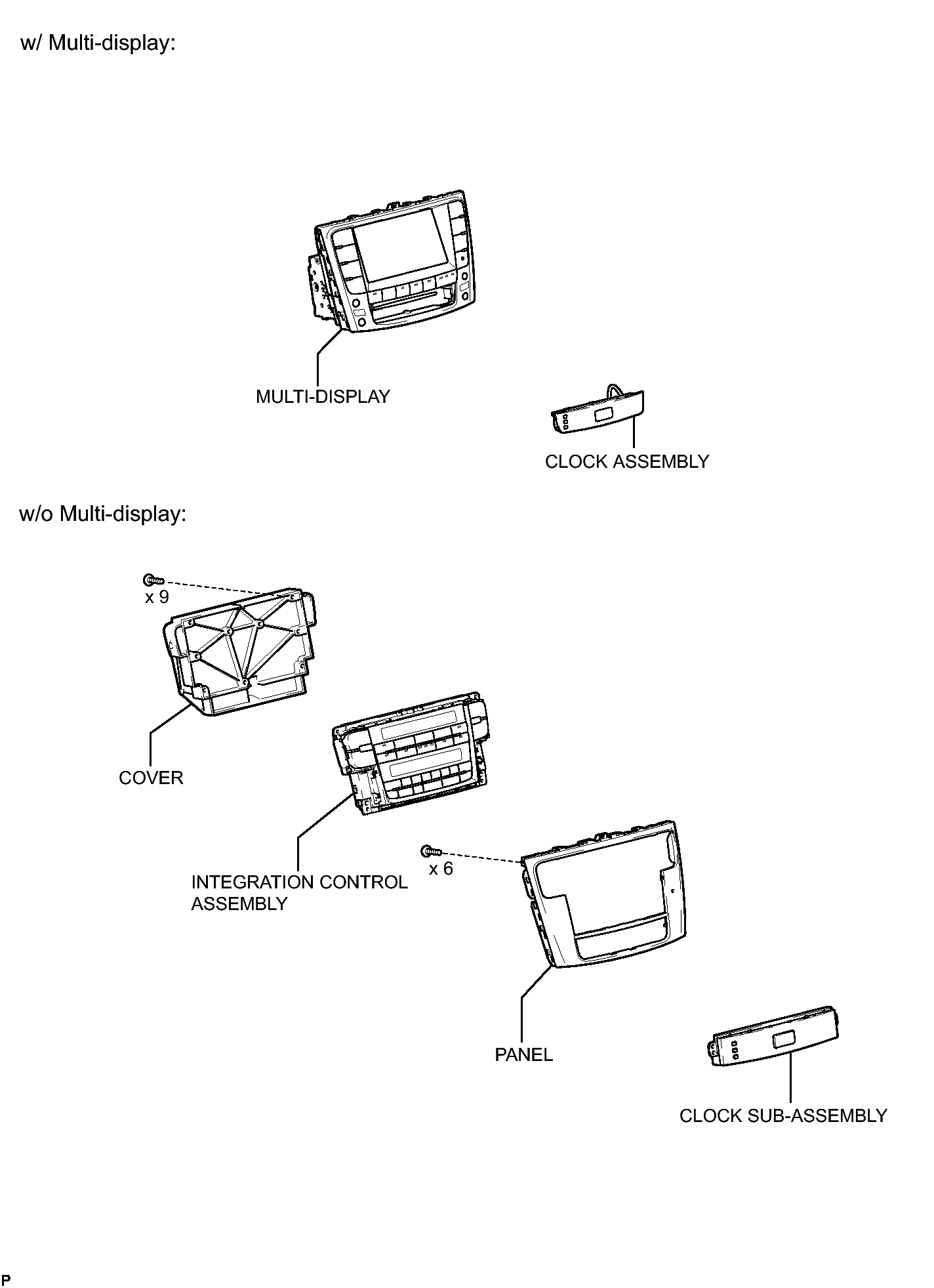

Fig 1: Identifying Clock Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

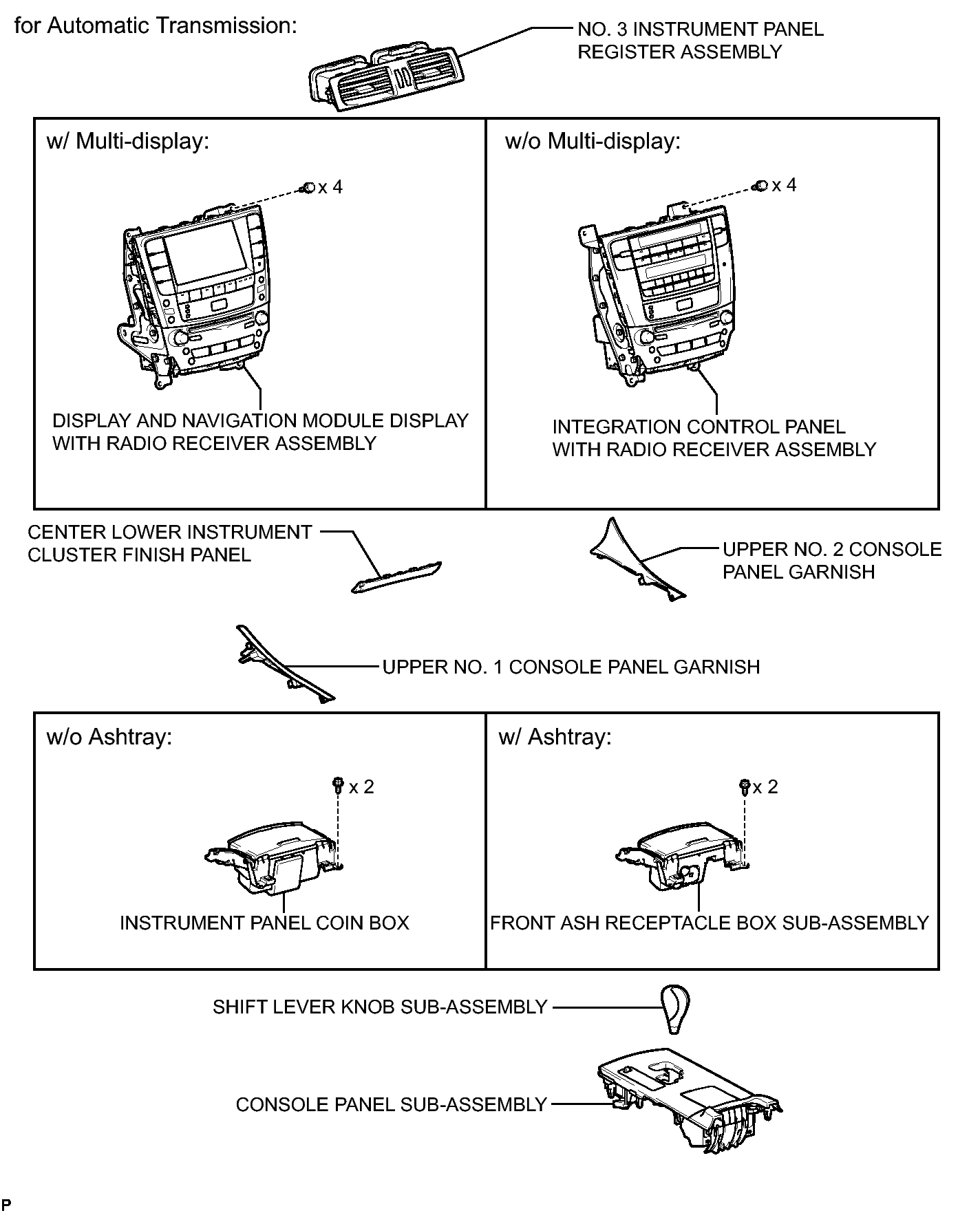

Fig 1: Identifying Clock Replacement Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

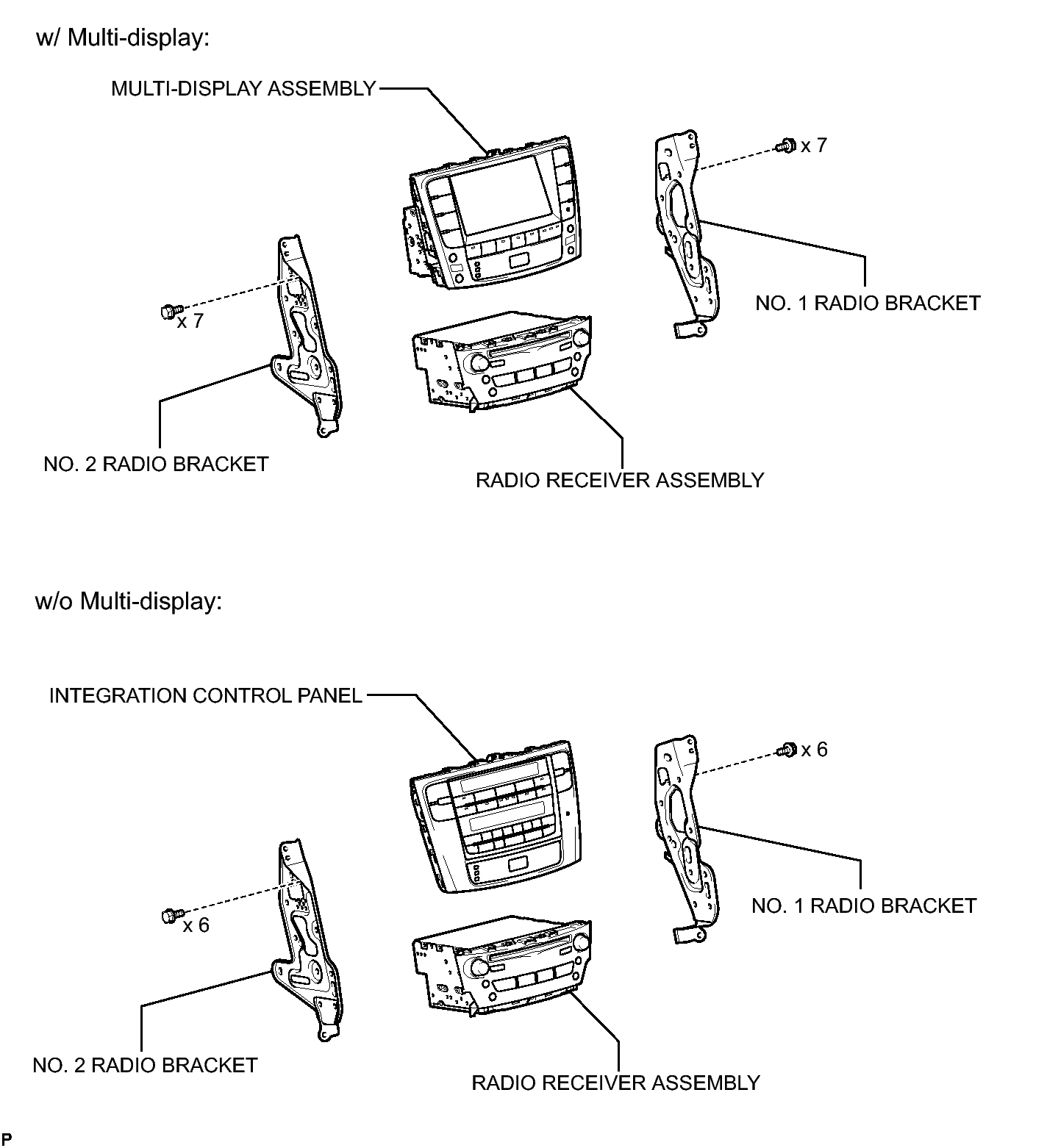

Fig 1: Identifying Clock Replacement Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
