RADIO ANTENNA CORD (w/ Satellite Radio): Removal: Removal

HINT:

Refer to the procedure up to Remove Instrument Panel Safety Pad Assembly. Refer to REMOVAL .

1. Disengage the clamp and remove the No. 2 antenna cord sub-assembly.
   Fig 1: Identifying No. 2 Antenna Cord

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the procedure up to Remove Roof Headlining Assembly. Refer to REMOVAL .

1. Disconnect each connector.

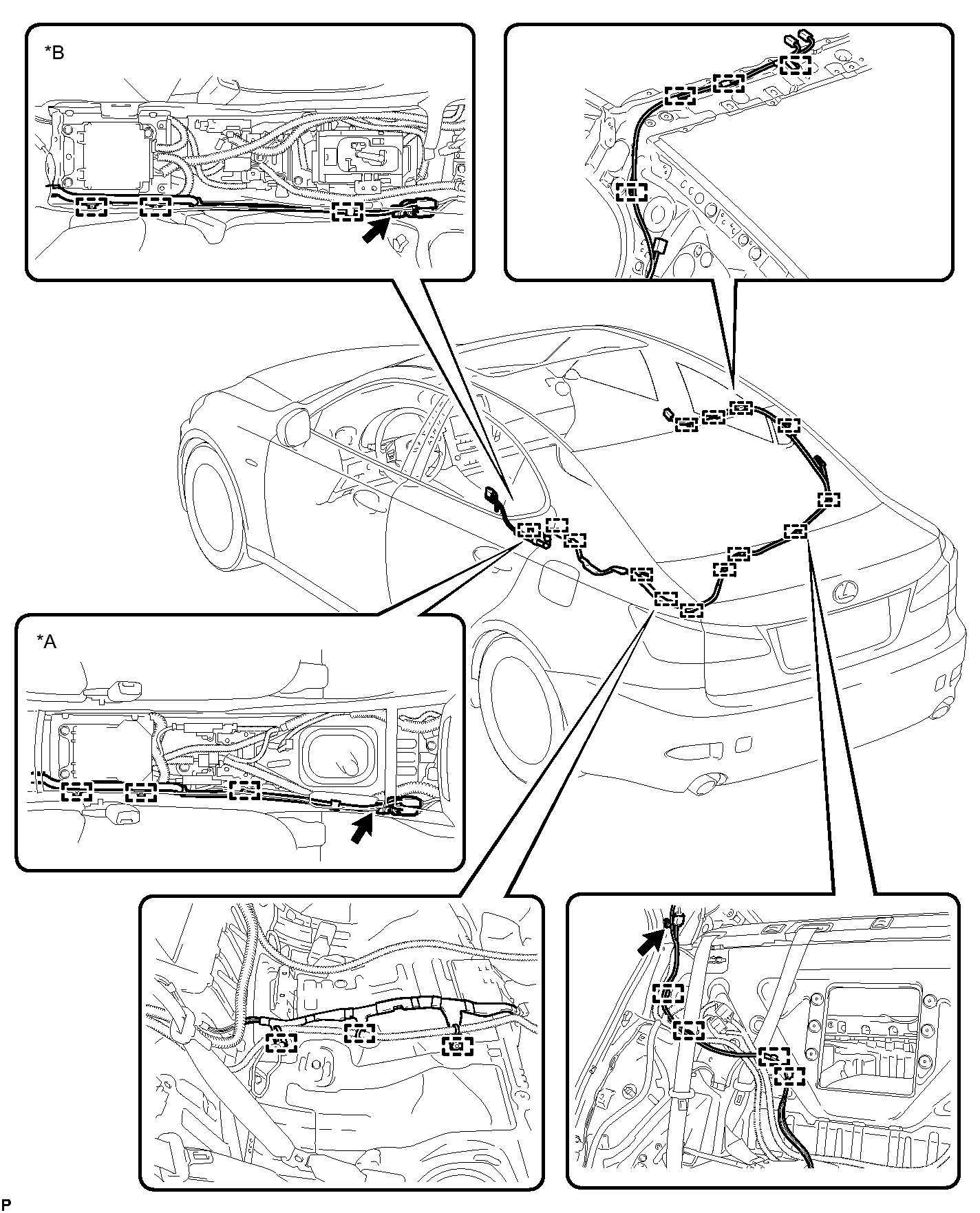

   Fig 2: Identifying Antenna Cord Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *A

   for Manual Transmission

   *B

   for Automatic Transmission

2. Remove the 2 bolts and disengage the 14 clamps.
3. Remove the antenna cord sub-assembly.
