Entire Combination Meter does not Operate: Wiring Diagram

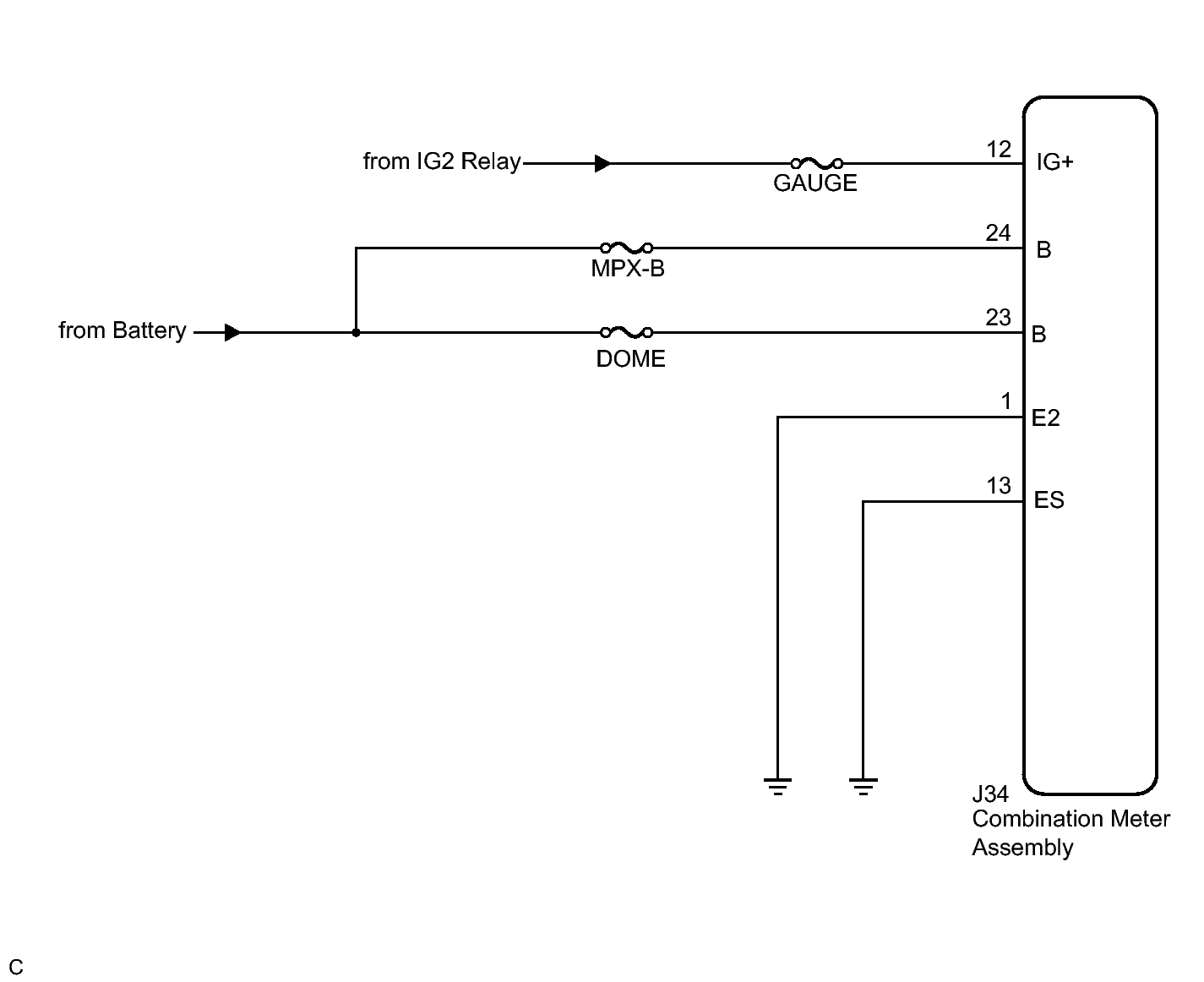

Fig 1: Combination Meter Wiring Diagram

GTY260659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
