Engine Coolant Temperature Receiver Gauge Malfunction: Wiring Diagram

  1. for 2GR-FSE
    Fig 1: Engine Coolant Temperature Receiver Gauge (2GR-FSE) Wiring Diagram
    GTY287001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 4GR-FSE

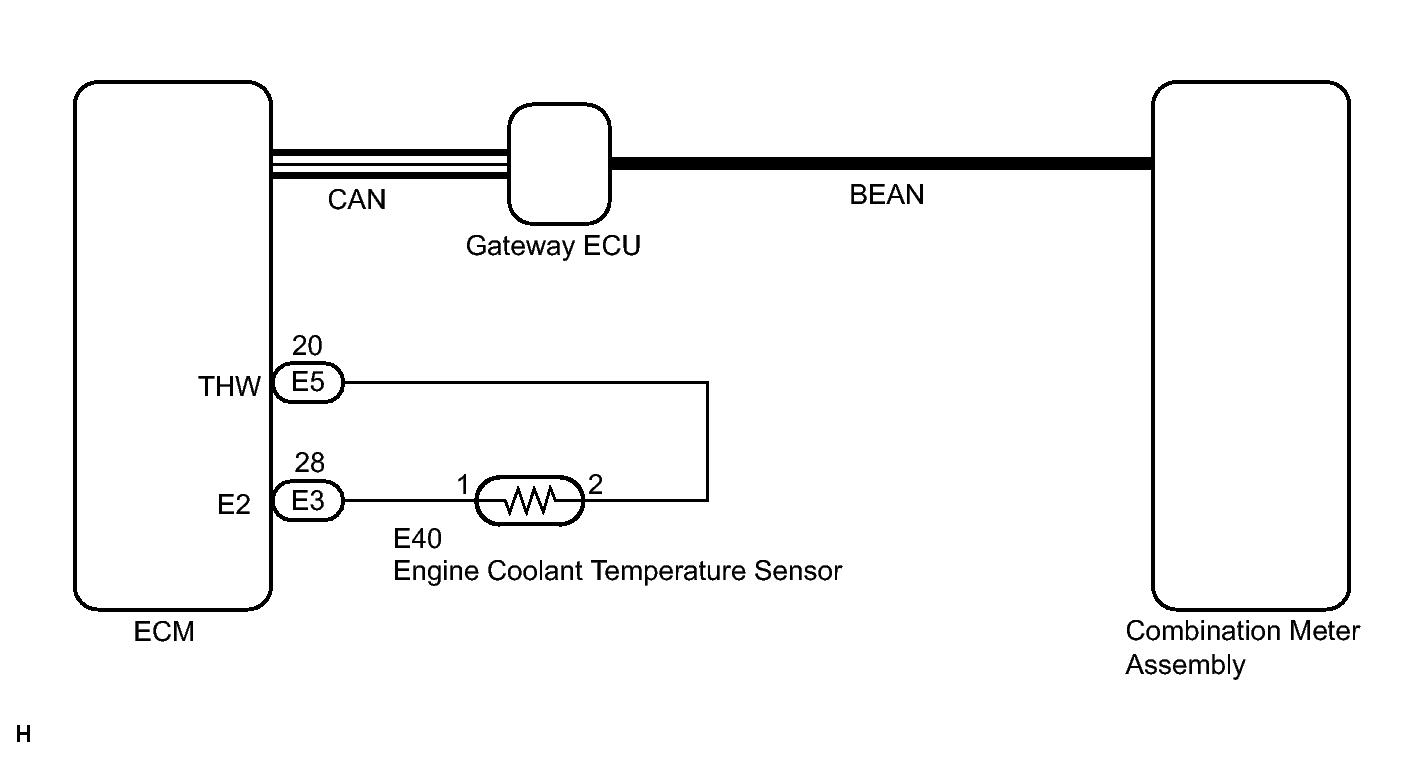

    Fig 2: Engine Coolant Temperature Receiver Gauge (4GR-FSE) Wiring Diagram
    GTY275805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
