Steering Pad Switch: Components: Illustration

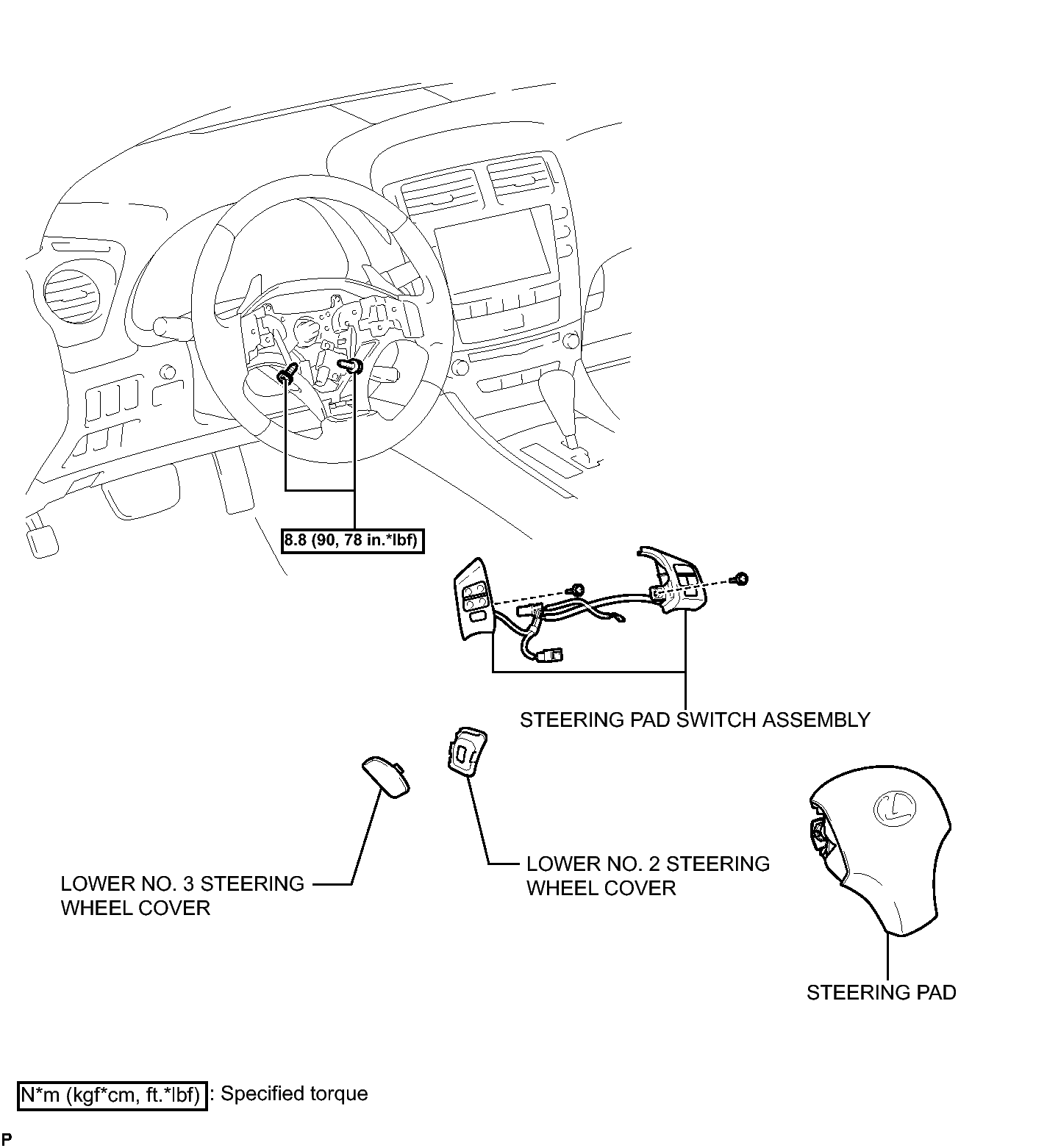

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications

GTY393564

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
