Parts Location: Illustration

Fig 1: Identifying Meter/Gauge System Components Location (1 Of 3)
GTY121052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

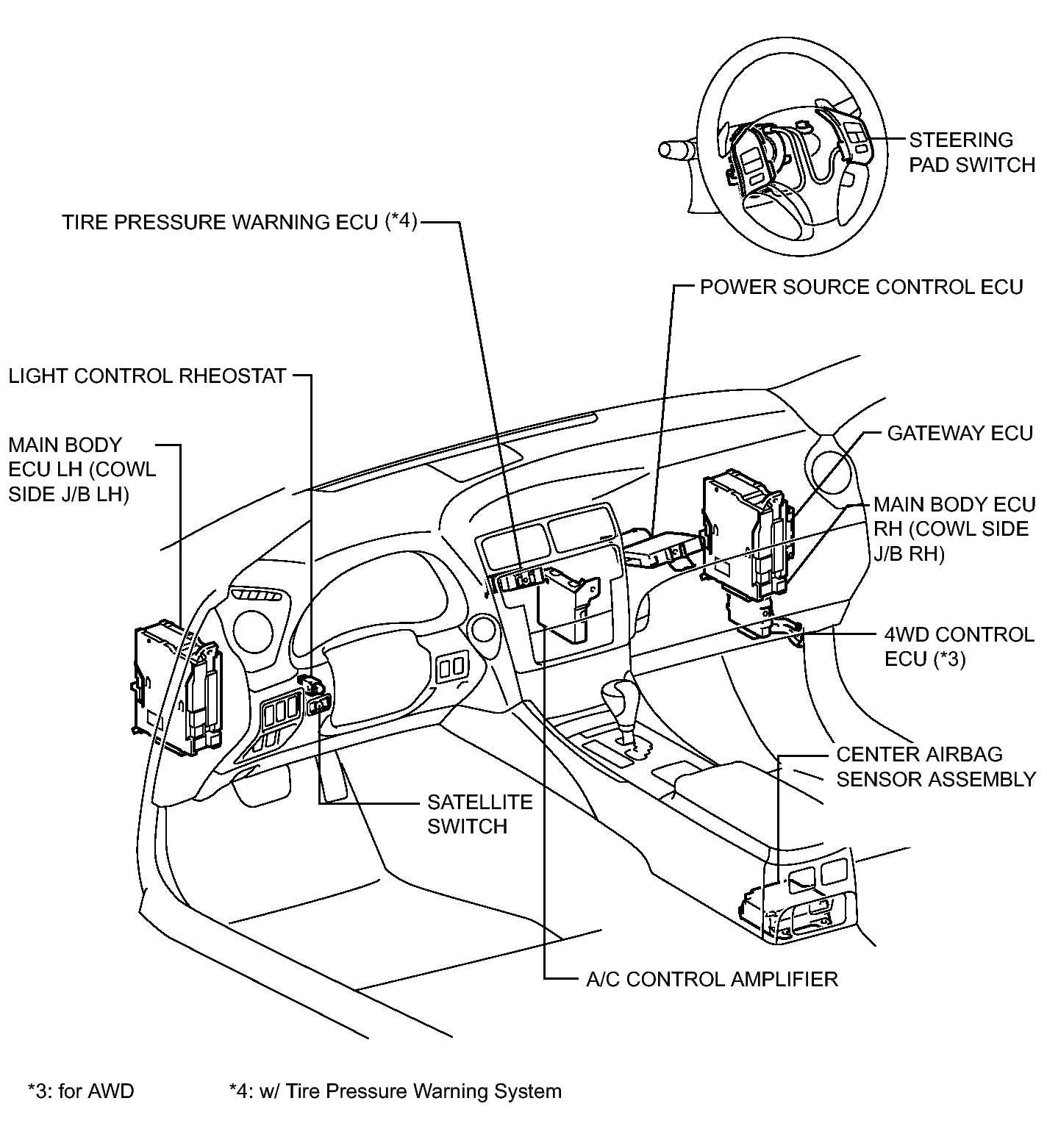

Fig 1: Identifying Meter/Gauge System Components Location(2 Of 3)
GTY352332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter/Gauge System Components Location (3 Of 3)
GTY267396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
