Speed Signal Circuit: Wiring Diagram
for 2AZ-FXE

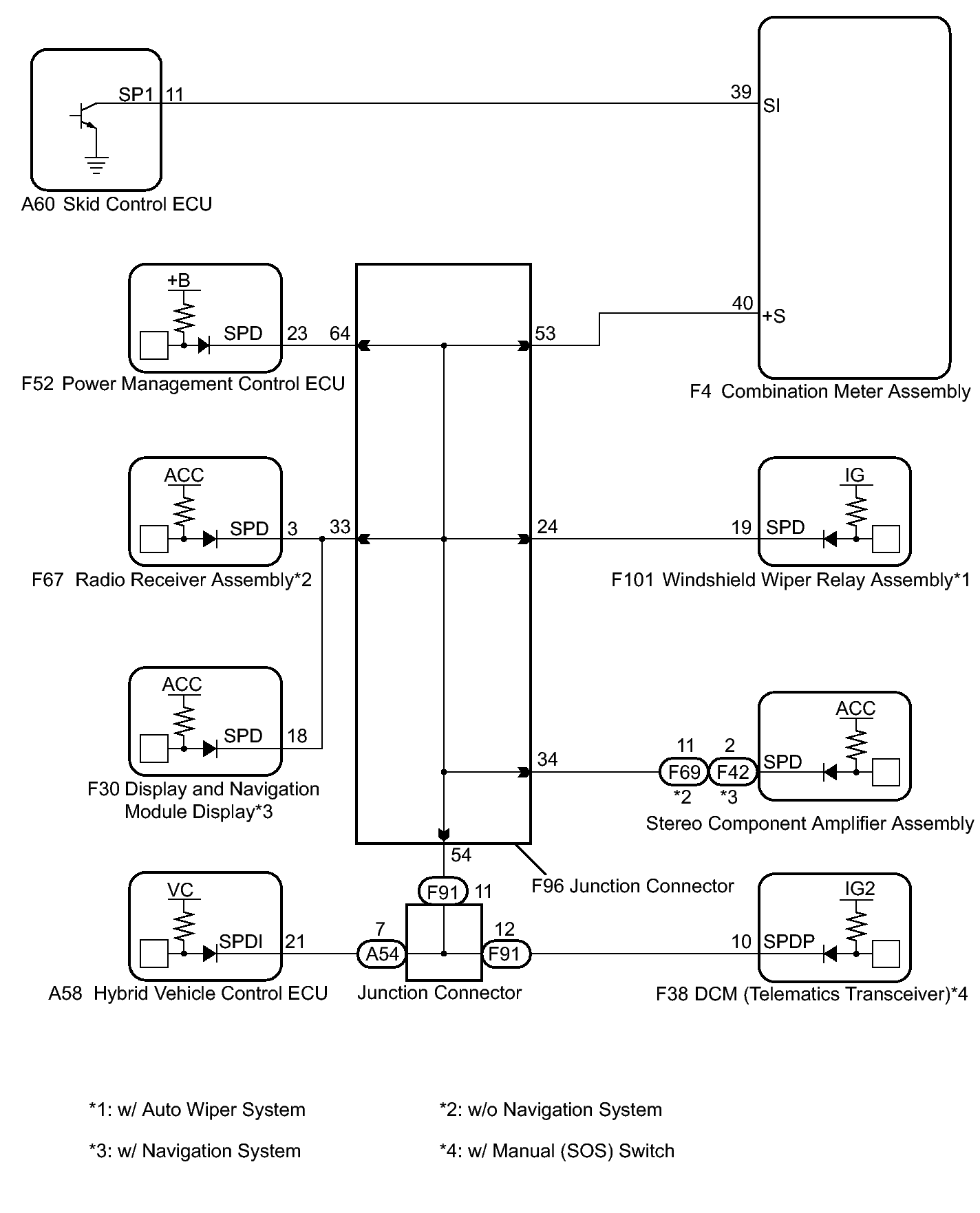

Fig 1: Vehicle Speed Signal Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
