Malfunction in Water Temperature Warning Light: Wiring Diagram

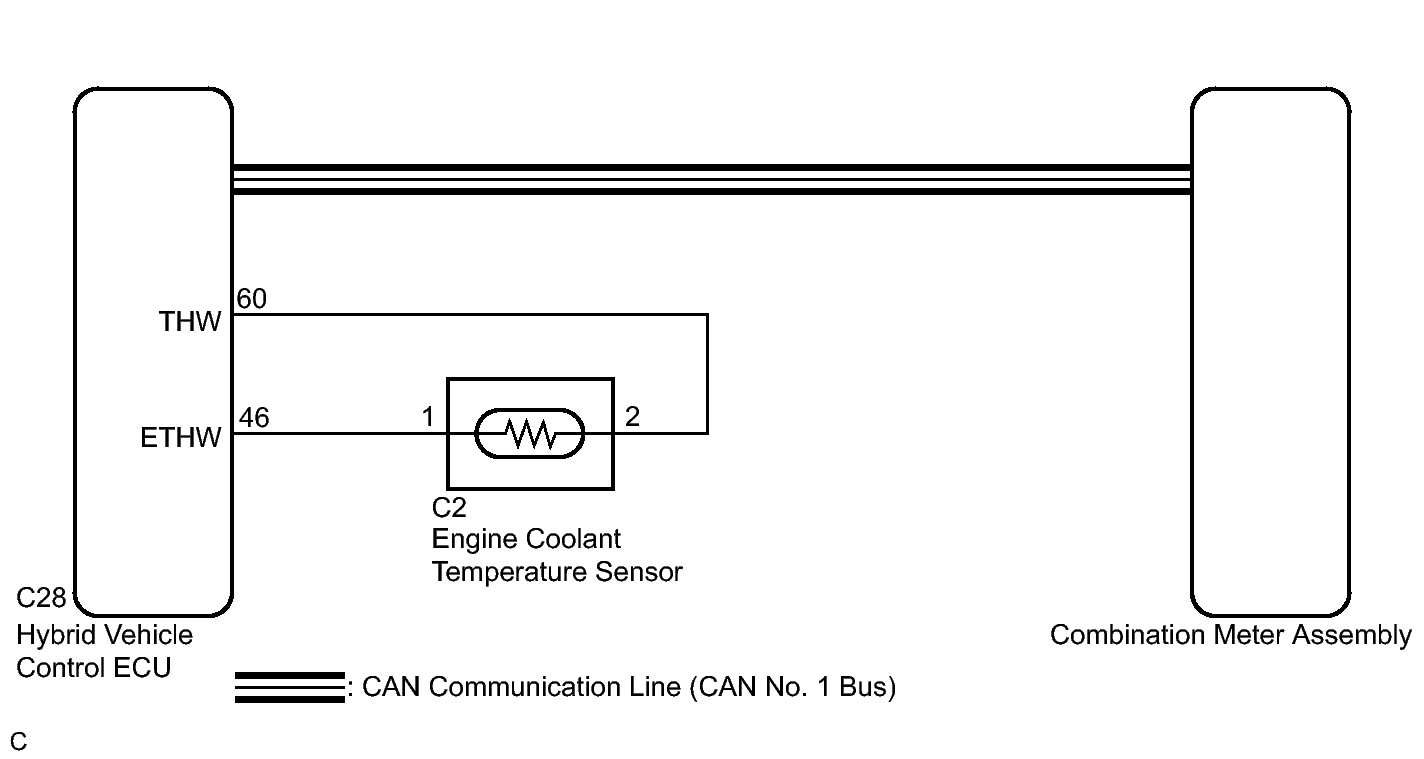

Fig 1: Identifying Engine Coolant Temperature Wiring Diagram

GTY275757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
