Headup Display Malfunction
>>
Wiring Diagram

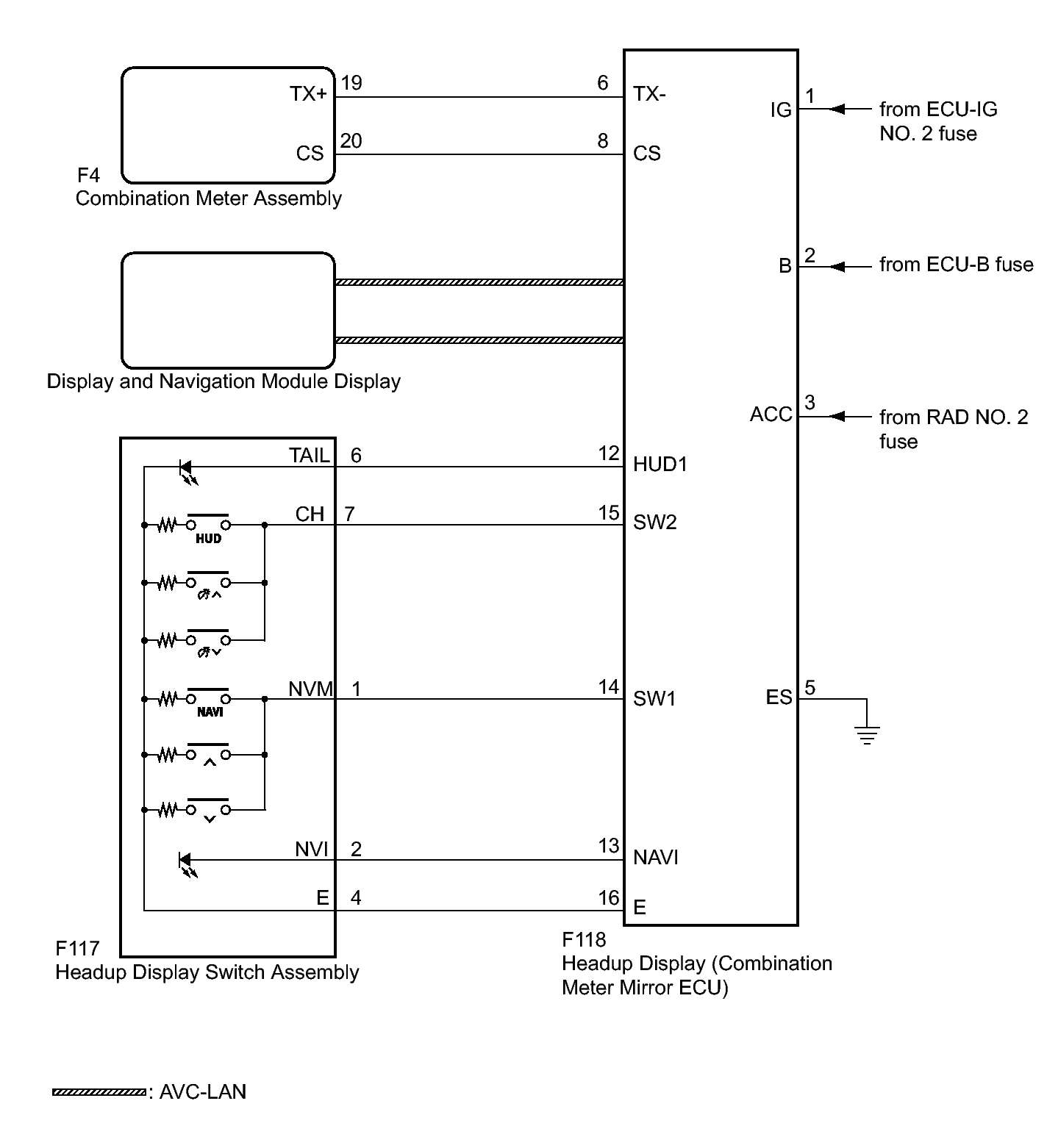

Headup Display Malfunction: Wiring Diagram
Fig 1: Identifying Headup Display (Combination Meter Mirror ECU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
