Parts Location: Illustration

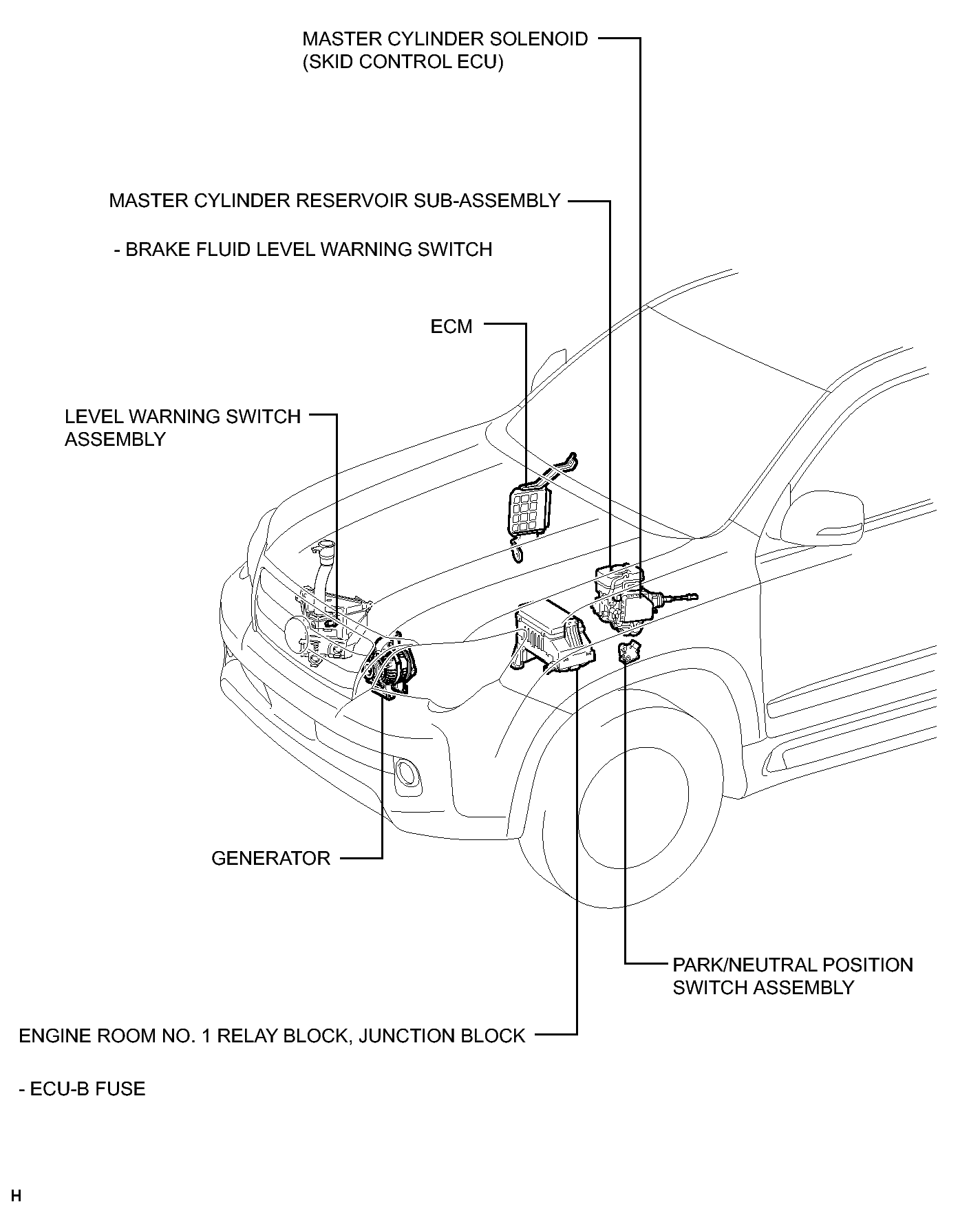

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 6)
GTY268464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

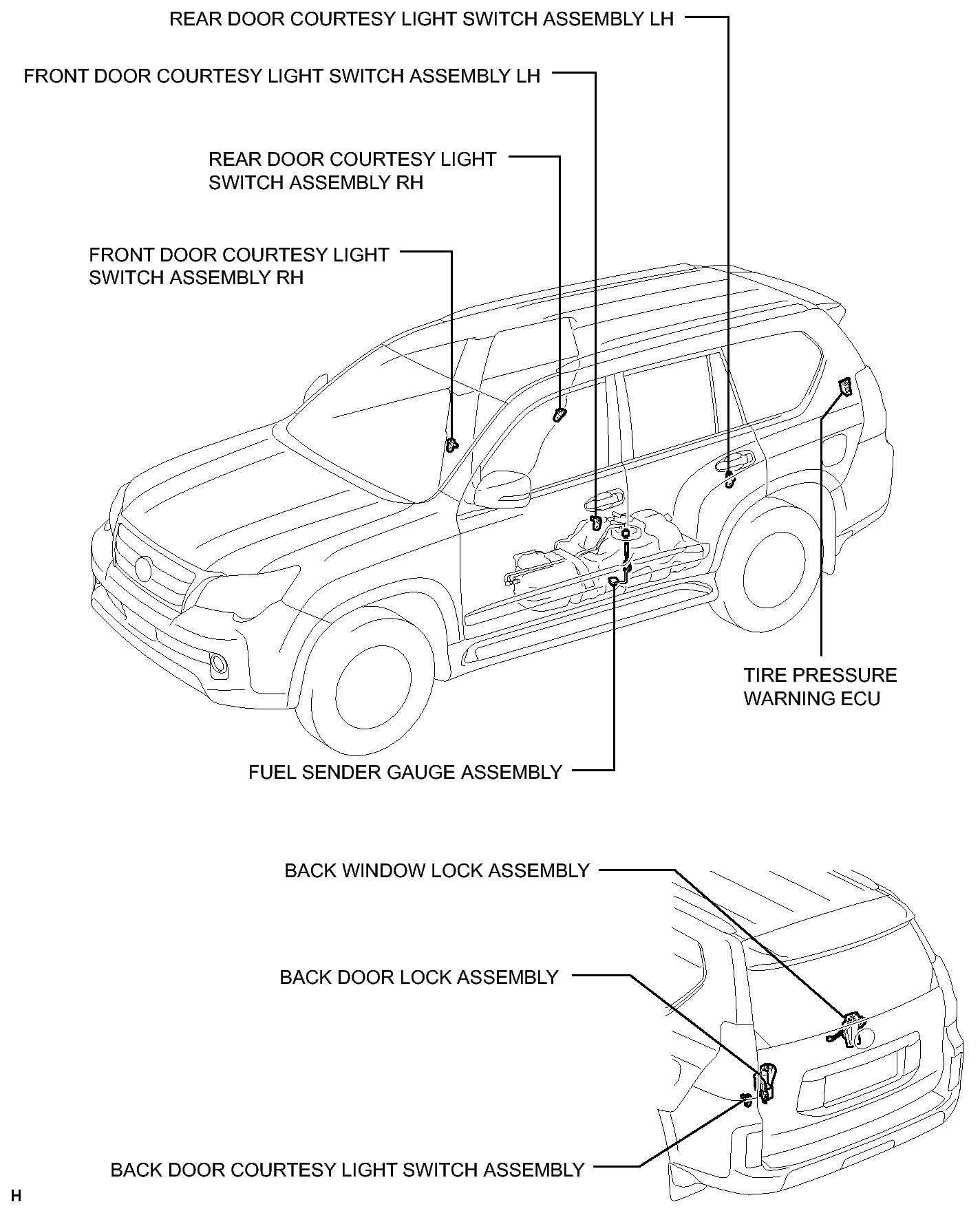

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 6)
GTY265218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

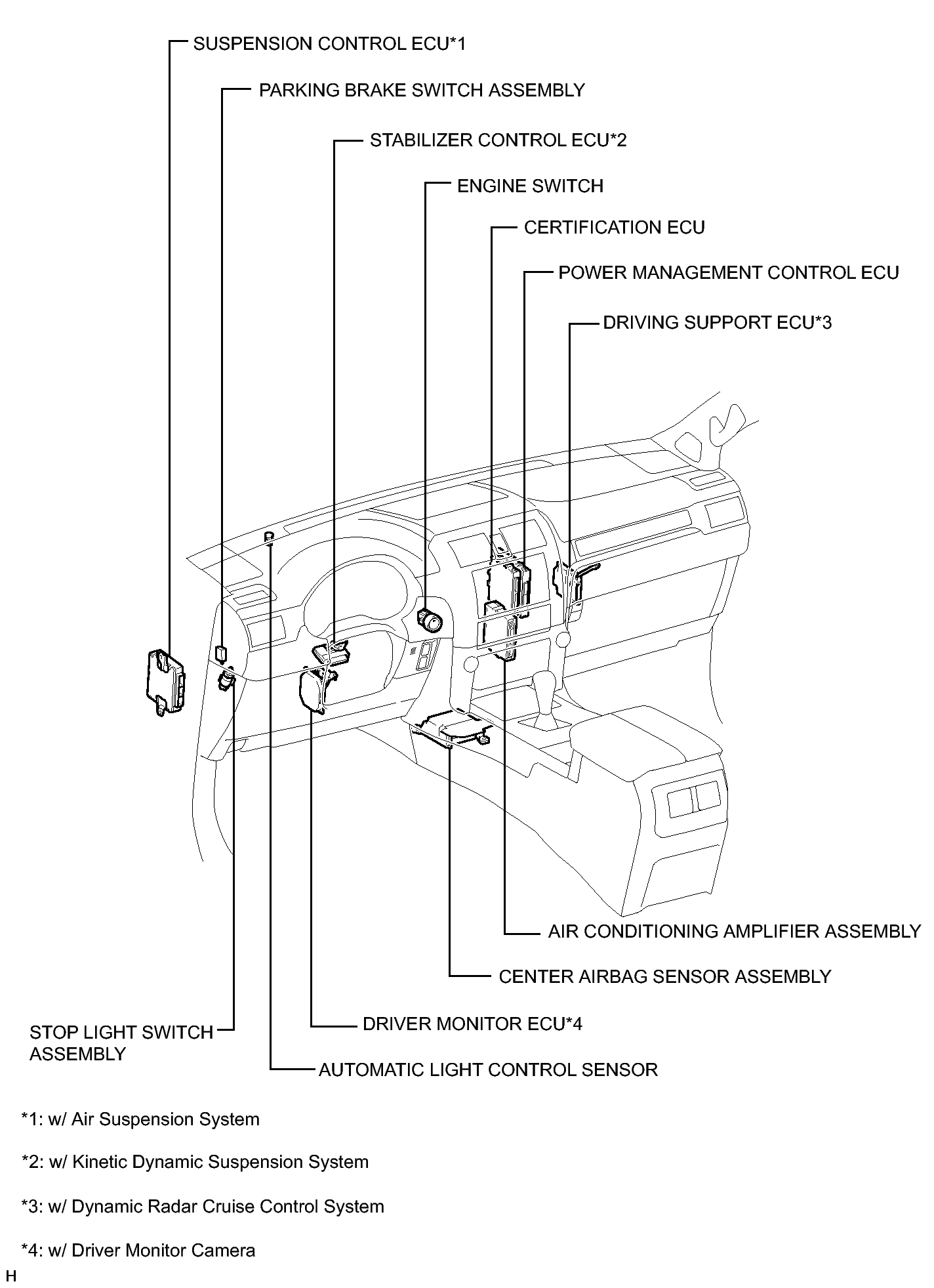

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 6)
GTY263565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

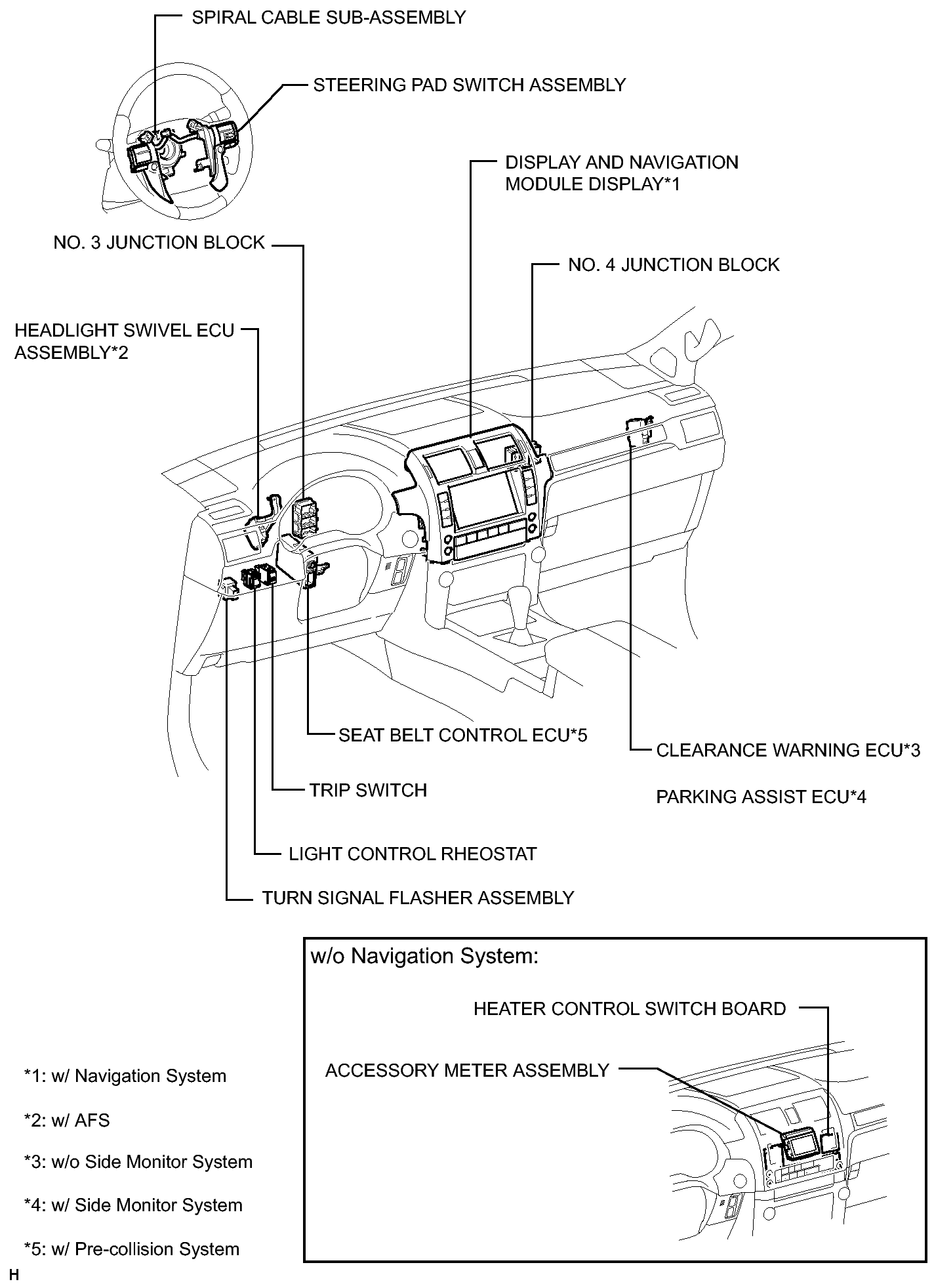

Fig 1: Identifying Meter / Gauge System Components Location (4 Of 6)
GTY257807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

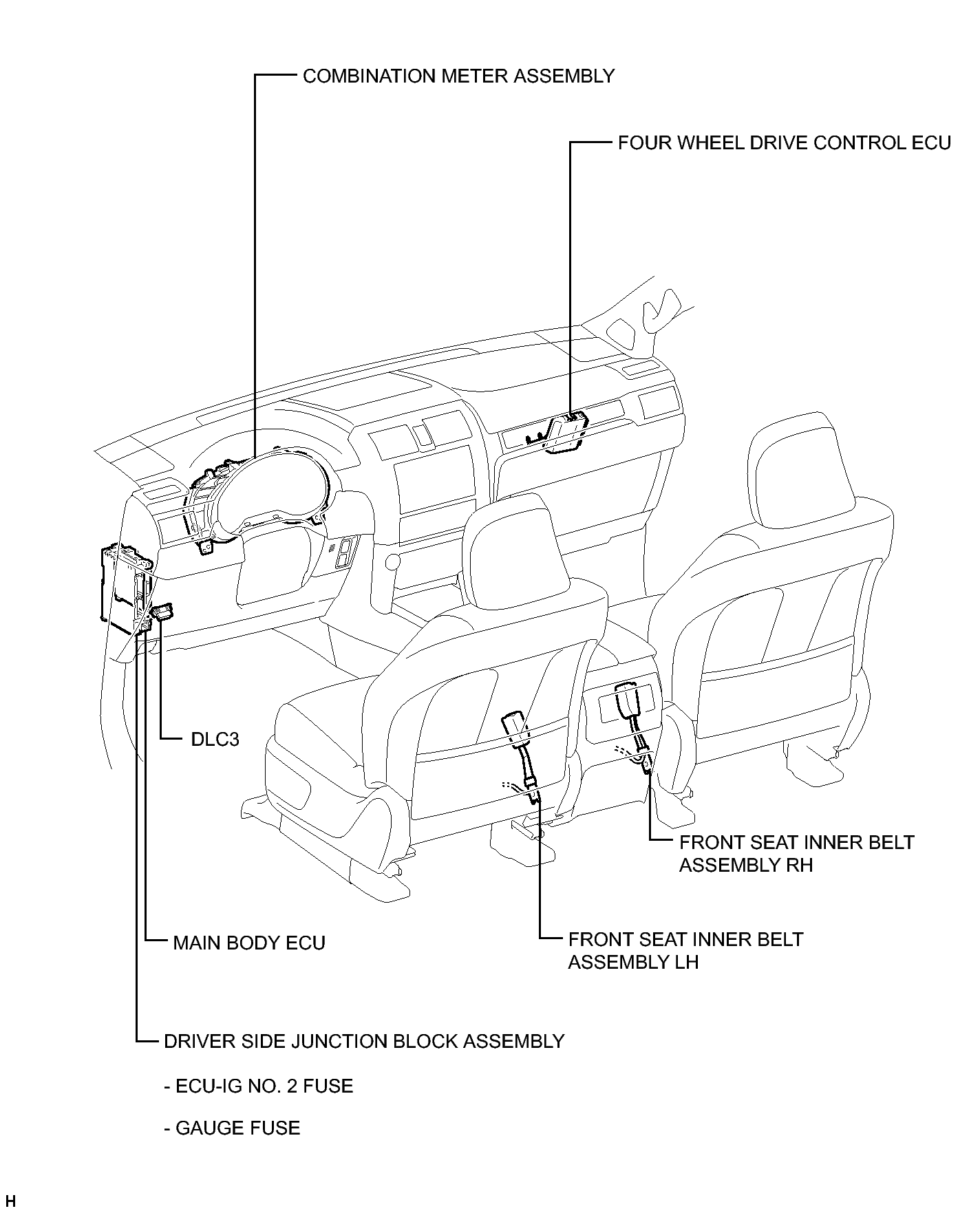

Fig 1: Identifying Meter / Gauge System Components Location (5 Of 6)
GTY269178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

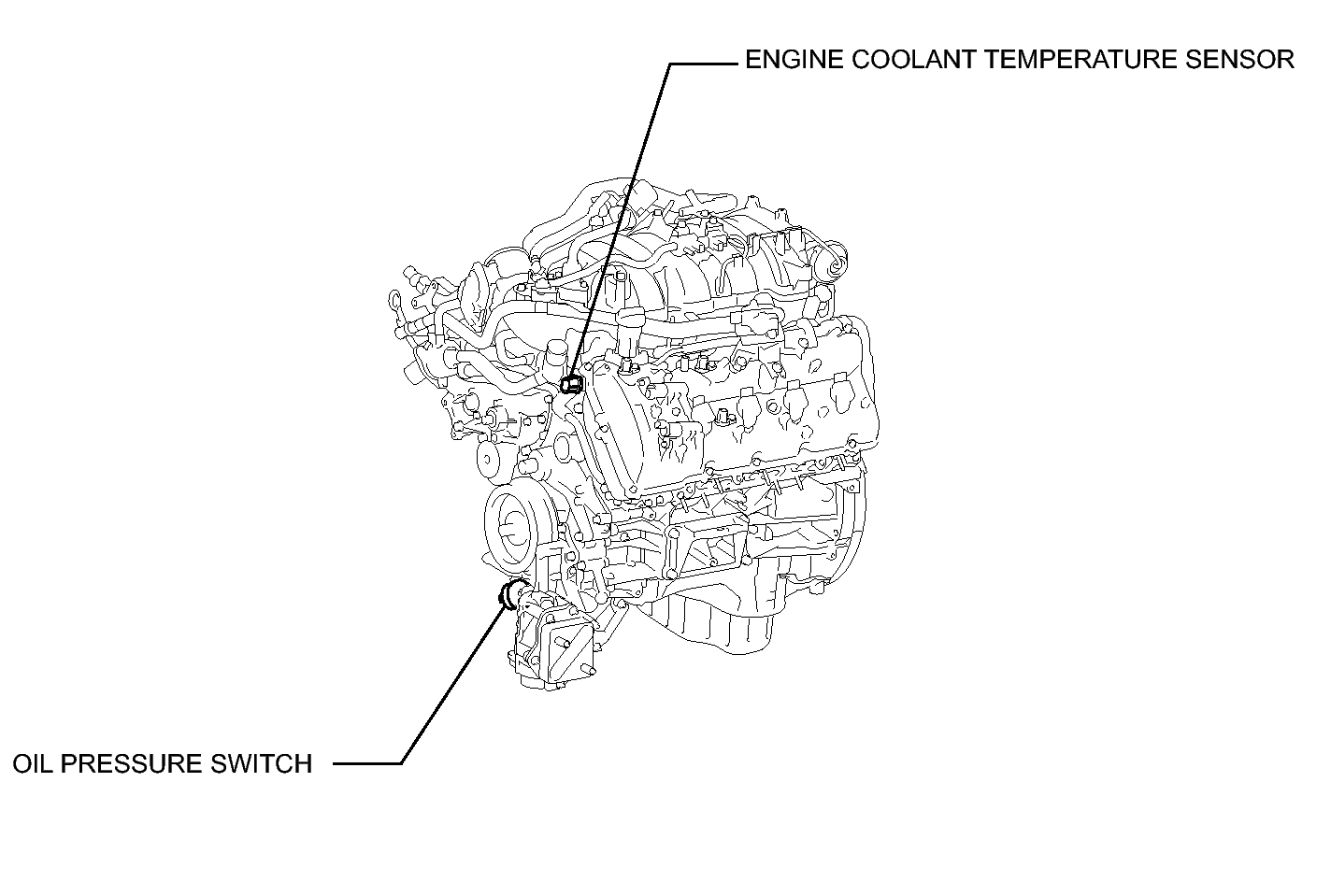

Fig 1: Identifying Meter / Gauge System Components Location (6 Of 6)
GTY272215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
