Operation Check

INSPECT INDICATOR/WARNING LIGHT

Check the following indicators and warning lights.

Indicator/Warning Light	Switch Condition	Specified Condition
BRAKE warning light	Engine switch off → on (IG)	Comes on for 3 seconds
ABS warning light
SLIP indicator light
VSC OFF indicator light
CRAWL indicator light*1
Downhill assist control indicator light*2
Eco driving indicator light
PCS indicator light*3
AFS OFF indicator light*4
Master warning light
Tire pressure warning light
RSCA OFF indicator light
Automatic high beam indicator light*5
KDSS indicator light*6
SRS warning light	Engine switch off → on (IG)	Comes on for 6 seconds
CHARGE warning light	Engine switch off → on (IG)	Illuminates when engine switch turned on (IG) Turns off when engine started
MIL	Engine switch off → on (IG)

*1: w/ CRAWL Control
*2: w/ Downhill Assist Control
*3: w/ Pre-collision System
*4: w/ AFS
*5: w/ Automatic High Beam System
*6: w/ Kinetic Dynamic Suspension System

INSPECT SPEEDOMETER

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.

Enter the following menus: Powertrain / Engine and ECT / Data List.

Reference

FOR U.S.A.

Standard Indication	Acceptable Range
20 mph	19 to 22 mph
40 mph	39 to 42.5 mph
60 mph	59 to 63.5 mph
80 mph	79 to 84 mph
100 mph	99 to 105 mph
120 mph	119 to 125.5 mph

FOR CANADA

Standard Indication	Acceptable Range
20 km/h	18.5 to 22.5 km/h
40 km/h	38 to 43.5 km/h
60 km/h	58.5 to 64 km/h
80 km/h	78 to 85 km/h
100 km/h	98.5 to 106 km/h
120 km/h	118.5 to 126.5 km/h
160 km/h	158.5 to 168 km/h
180 km/h	179 to 188.5 km/h

If the result is not as specified, the speedometer may have a malfunction.

NOTE:

Do not use worn, underinflated or overinflated tires as the speedometer reading will be inaccurate.

Check the deflection width of the speedometer indicator.
Reference

Within 0.3°

INSPECT TACHOMETER

Connect a tune-up tachometer and start the engine.

Compare the test results with the tachometer indicator.

DC 13.5 V at 25°C (77°F)

Standard Indication (rpm)	Acceptable Range Data in () is for Reference
700	630 to 770
1000	(900 to 1100)
2000	(1850 to 2150)
3000	2800 to 3200
4000	(3800 to 4200)
5000	4800 to 5200
6000	(5750 to 6250)

If the result is not as specified, the tachometer may have a malfunction.

INSPECT METER/GAUGE
1. Connect the Techstream to the DLC3.
2. Perform the Active Test. Refer to DATA LIST / ACTIVE TEST .
  OK

  Each meter/gauge needle indication is normal.
INSPECT WARNING/INDICATOR LIGHT
1. Connect the Techstream to the DLC3.
2. Perform the Active Test. Refer to DATA LIST / ACTIVE TEST .
  OK

  Each warning/indicator light can be turned on and off using the Techstream.
INSPECT MULTI-INFORMATION DISPLAY
1. Connect the Techstream to the DLC3.

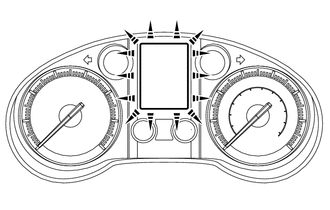

  Fig 1: Identifying Multi-Information Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Perform the Active Test. Refer to DATA LIST / ACTIVE TEST .
  HINT:

  If this Active Test is being performed and the engine switch is turned off and then on (IG), the ODO/TRIP display background may turn white. If this occurs, end the Active Test and turn the engine switch off.

  OK

  All dots in the multi-information display can be turned on and off using the Techstream.
