Accessory Meter does not Illuminate: Wiring Diagram

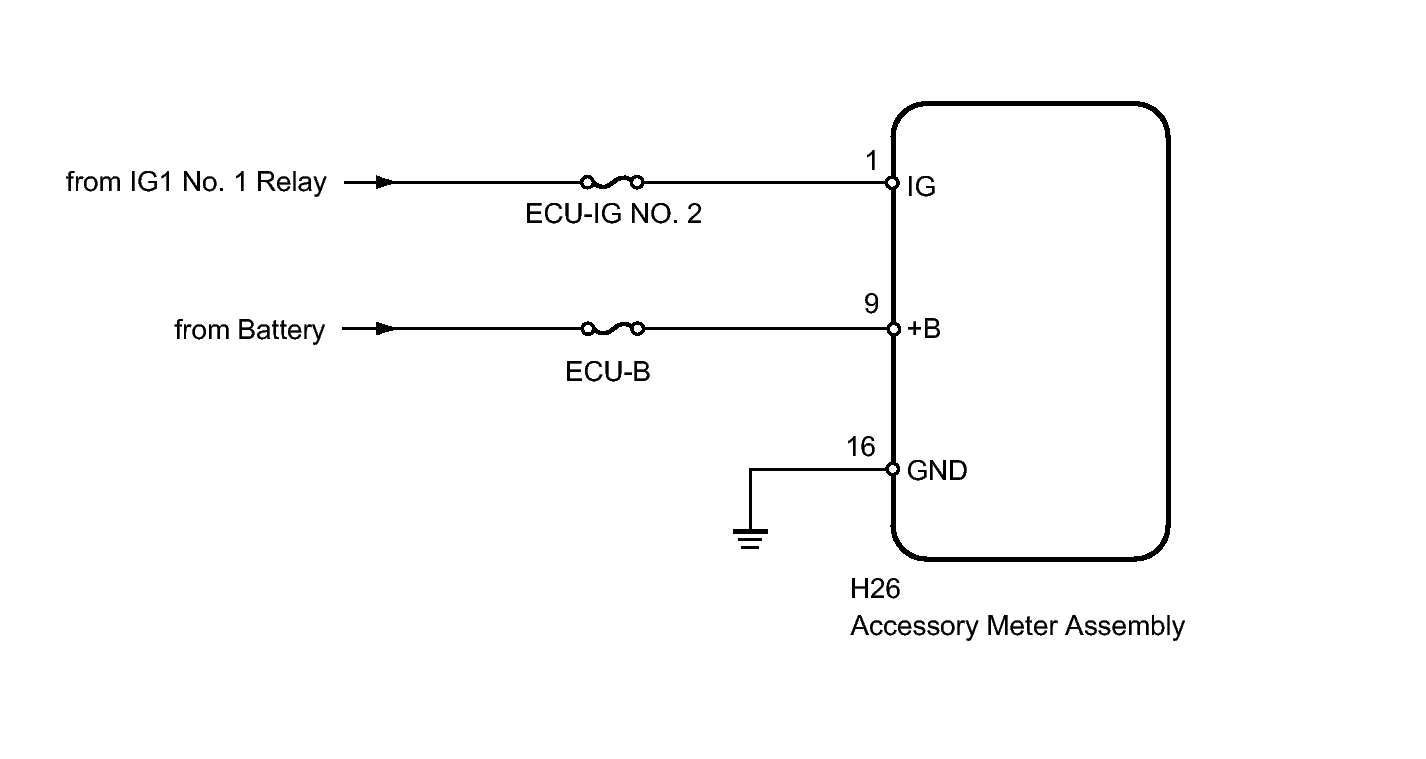

Fig 1: Identifying Accessory Meter Wiring Diagram

GTY284960

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
