DTC B2660: Steering Wheel Switch Malfunction: Wiring Diagram

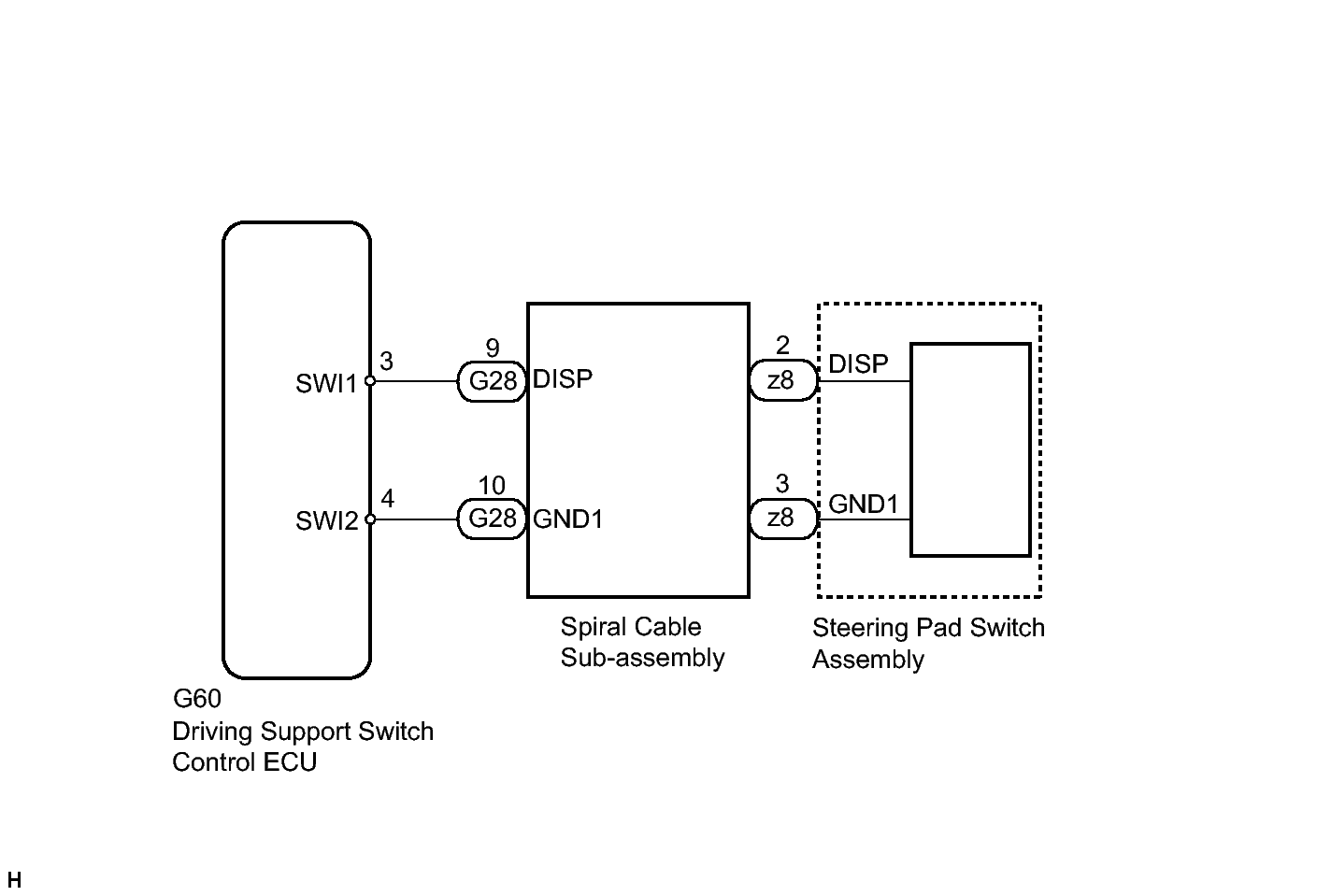

Fig 1: Identifying Steering Pad Switch Wiring Diagram
GTY286917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
