SRS Warning Light does not Come ON: Wiring Diagram

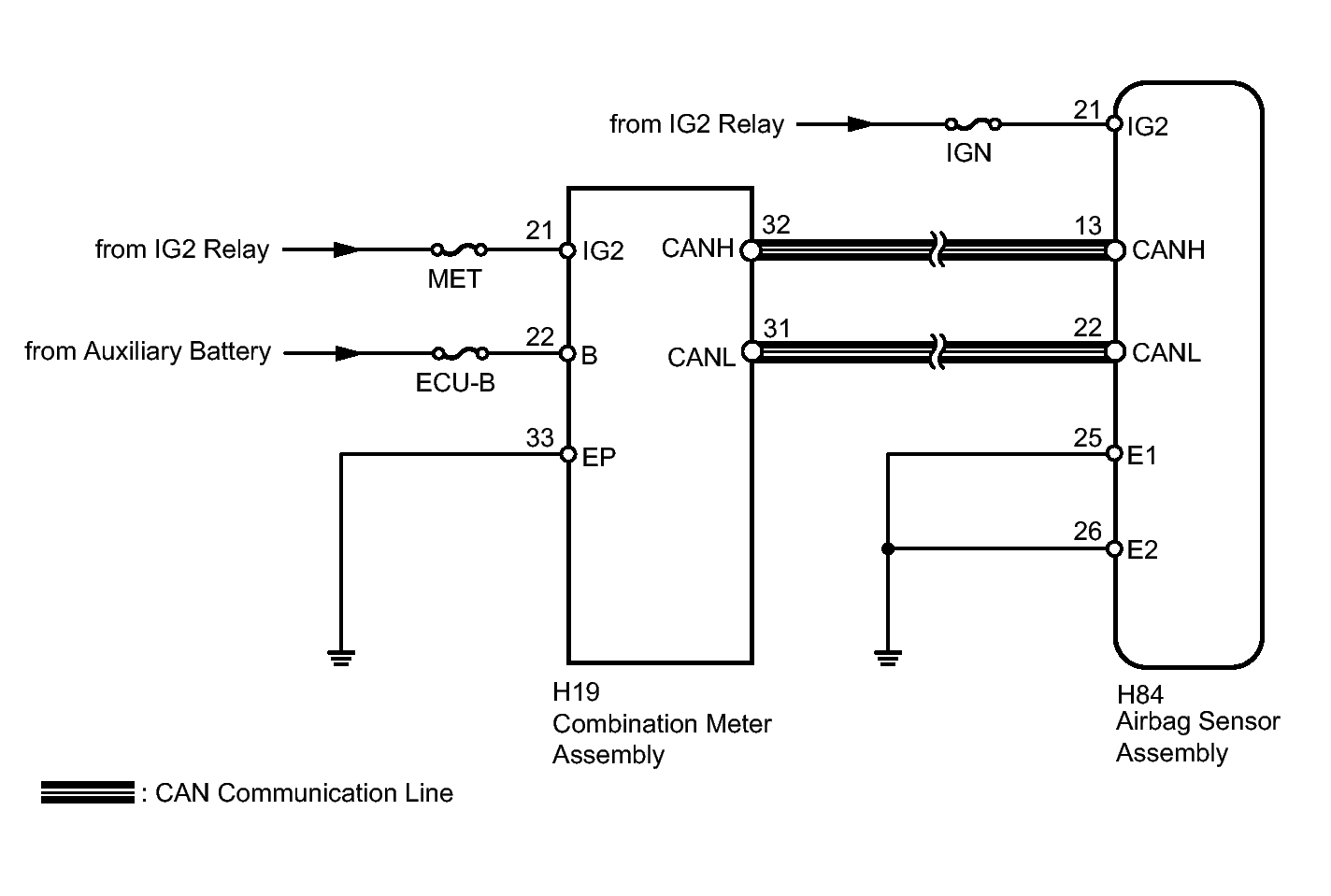

Fig 1: Identifying Combination Meter Assembly Wiring Diagram

GTY353094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
