DTC B1860/64: Short in Driver Side Knee Airbag Squib Circuit; DTC B1861/64: Open in Driver Side Knee Airbag Squib Circuit; DTC B1862/64: Short to GND in Driver Side Knee Airbag Squib Circuit; DTC B1863/64: Short to B+ in Driver Side Knee Airbag Squib Circuit: Wiring Diagram

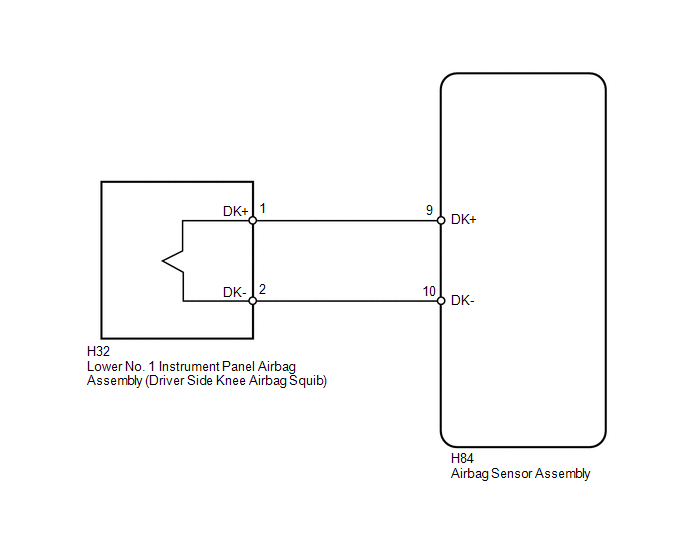

Fig 1: Identifying Airbag Sensor Assembly And Lower No. 1 Instrument Panel Airbag Assembly Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
