DTC B1835/58: Short in Curtain Shield Squib LH Circuit; DTC B1836/58: Open in Curtain Shield Squib LH Circuit; DTC B1837/58: Short to GND in Curtain Shield Squib LH Circuit; DTC B1838/58: Short to B+ in Curtain Shield Squib LH Circuit: Wiring Diagram

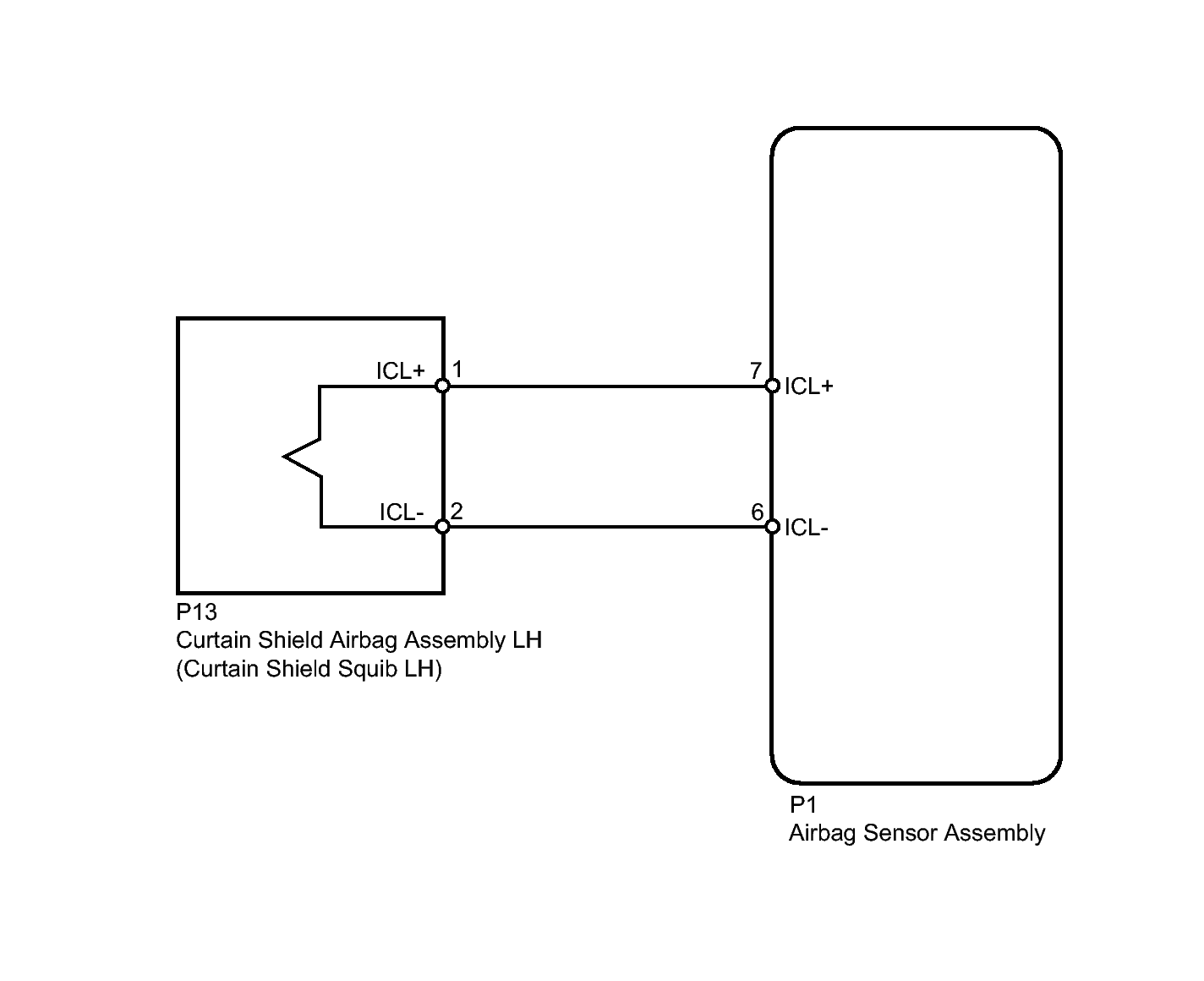

Fig 1: Identifying Airbag Sensor Assembly And Curtain Shield Airbag Assembly LH Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
