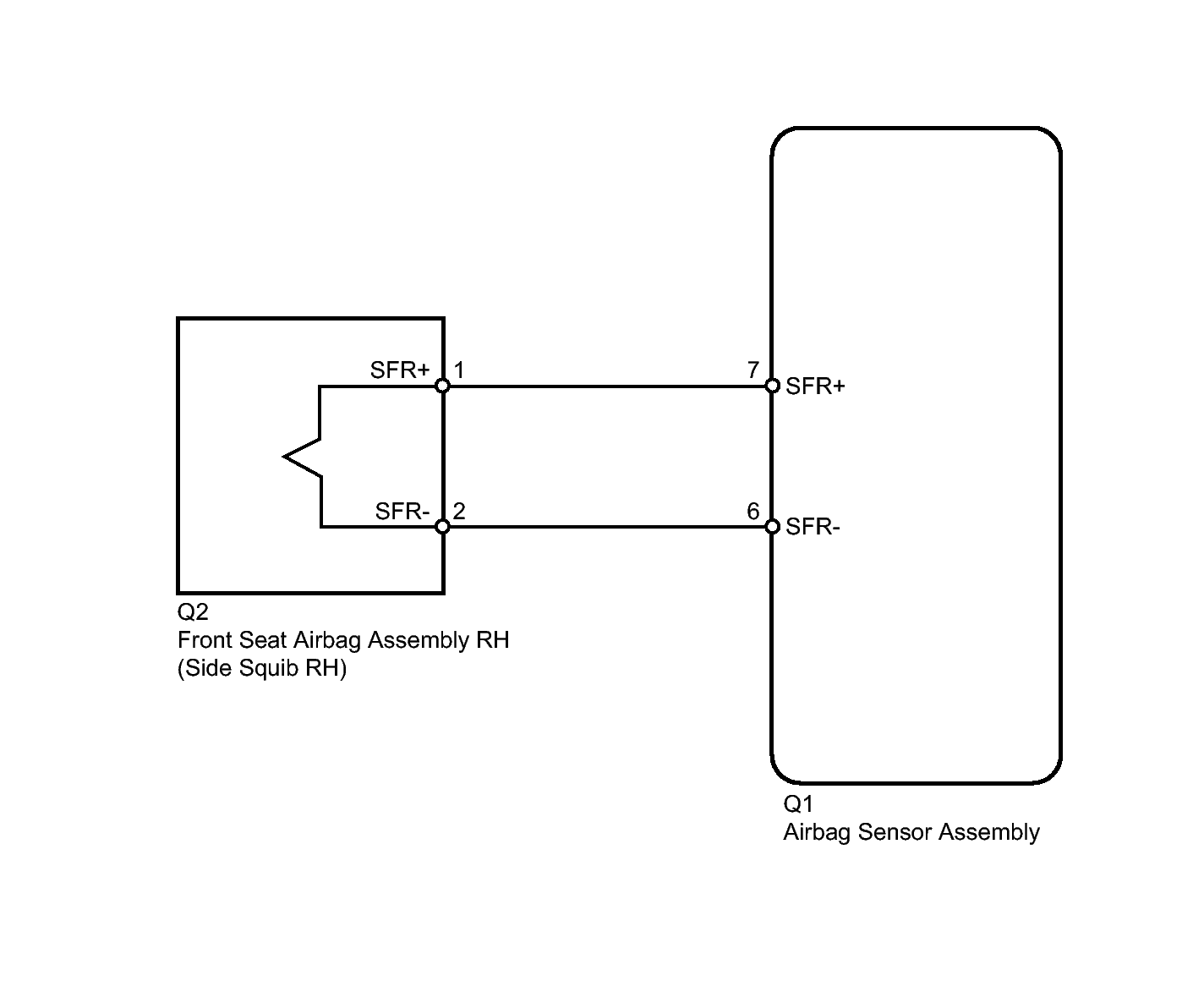

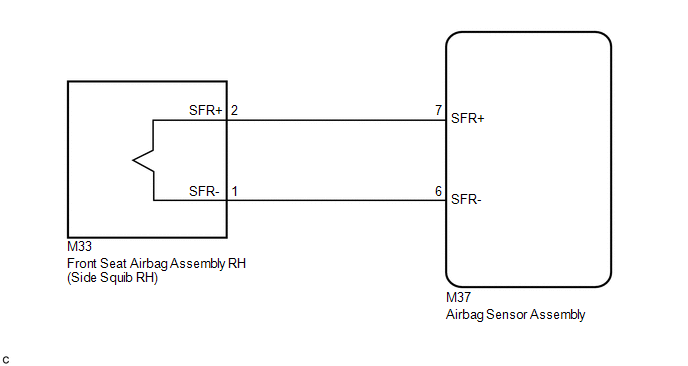

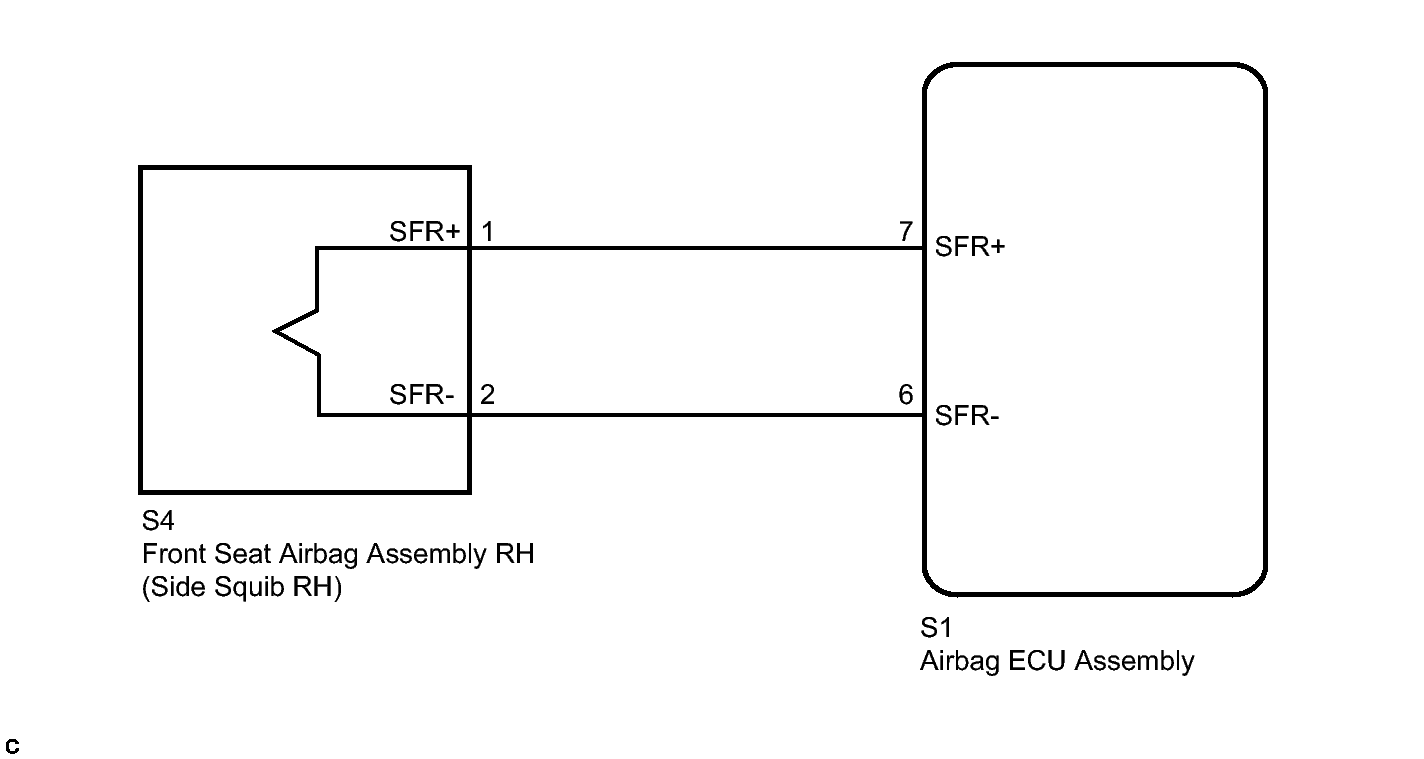

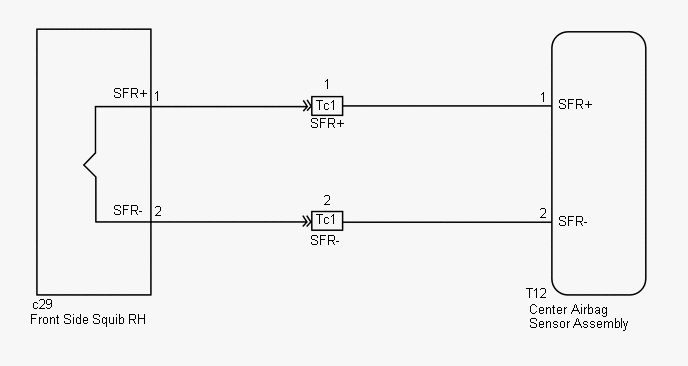

DTC B1820/55: Short in Side Squib RH Circuit; DTC B1821/55: Open in Side Squib RH Circuit; DTC B1822/55: Short to GND in Side Squib RH Circuit; DTC B1823/55: Short to B+ in Side Squib RH Circuit: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
