DTC B1656/38: Seat Belt Buckle Switch LH Circuit Malfunction: Wiring Diagram

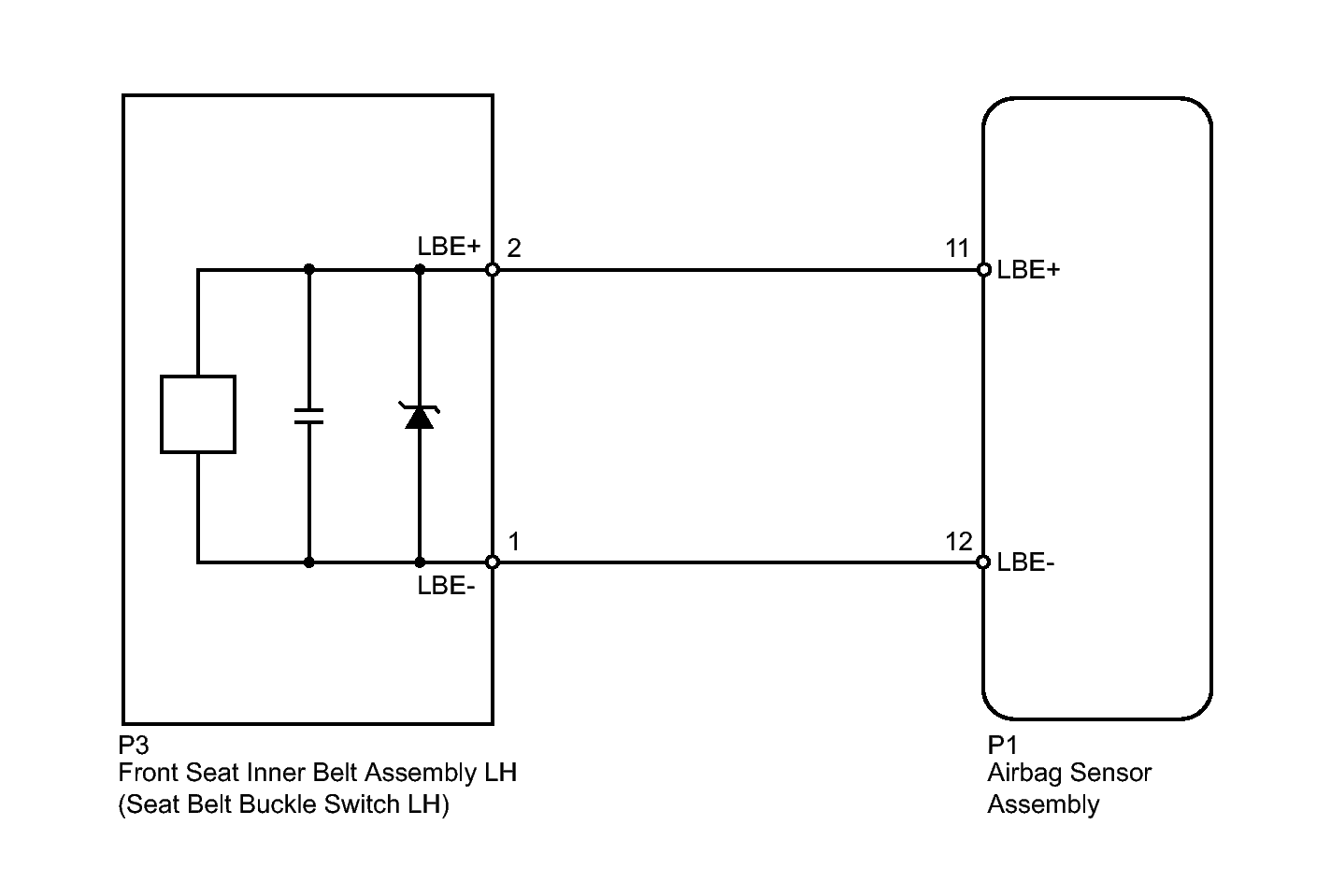

Fig 1: Identifying Airbag Sensor Assembly Wiring Diagram

GTY350705

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
