DTC U029A-123: Lost Communication with Hybrid Battery Pack Sensor Module: Wiring Diagram

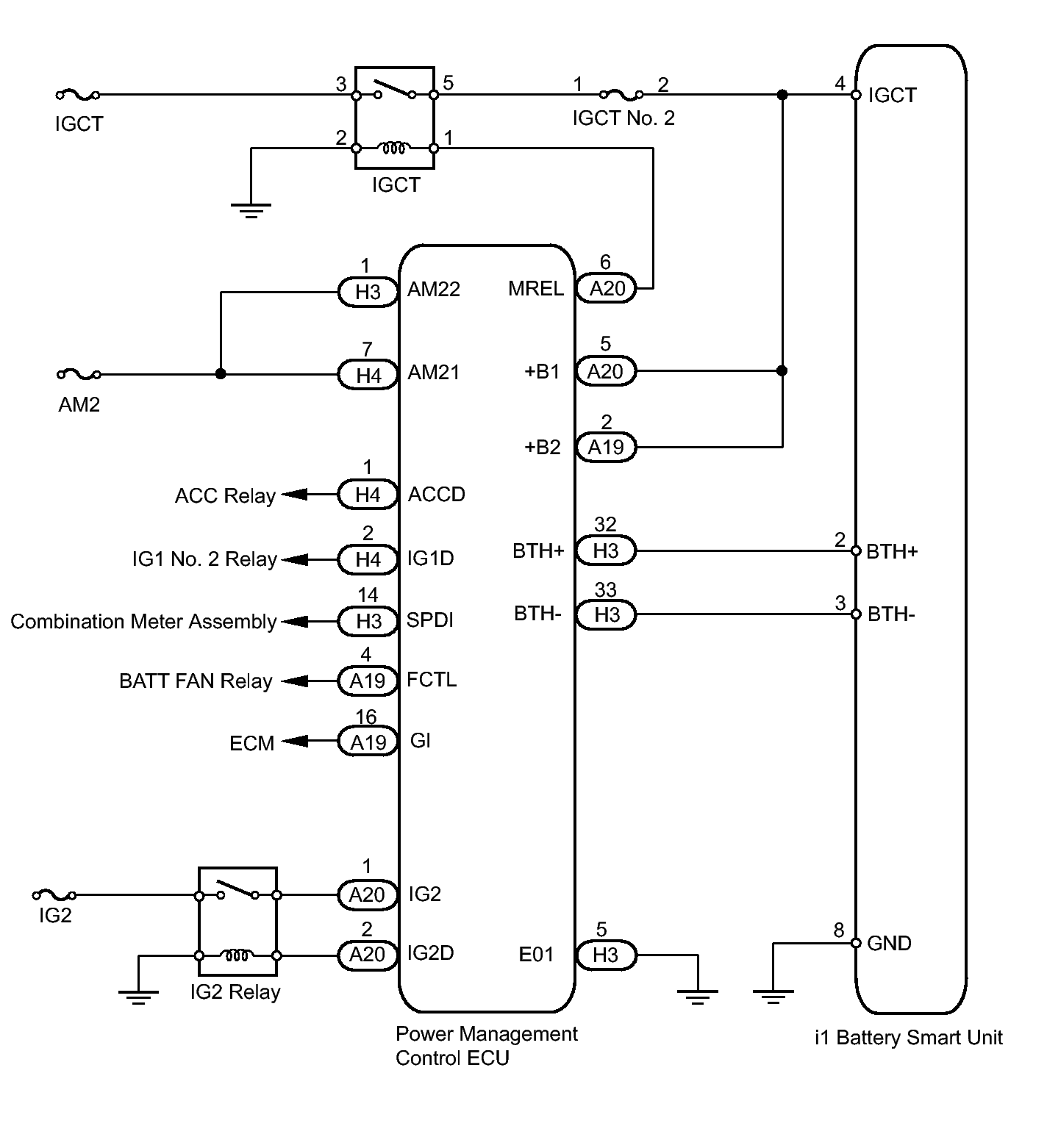

Fig 1: Identifying Battery Smart Unit Wiring Diagram

GTY359015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
