DTC P0ABF-123: Hybrid Battery Pack Current Sensor Circuit; DTC P0AC1-123: Hybrid Battery Pack Current Sensor "A" Circuit Low; DTC P0AC2-123: Hybrid Battery Pack Current Sensor "A" Circuit High: Wiring Diagram

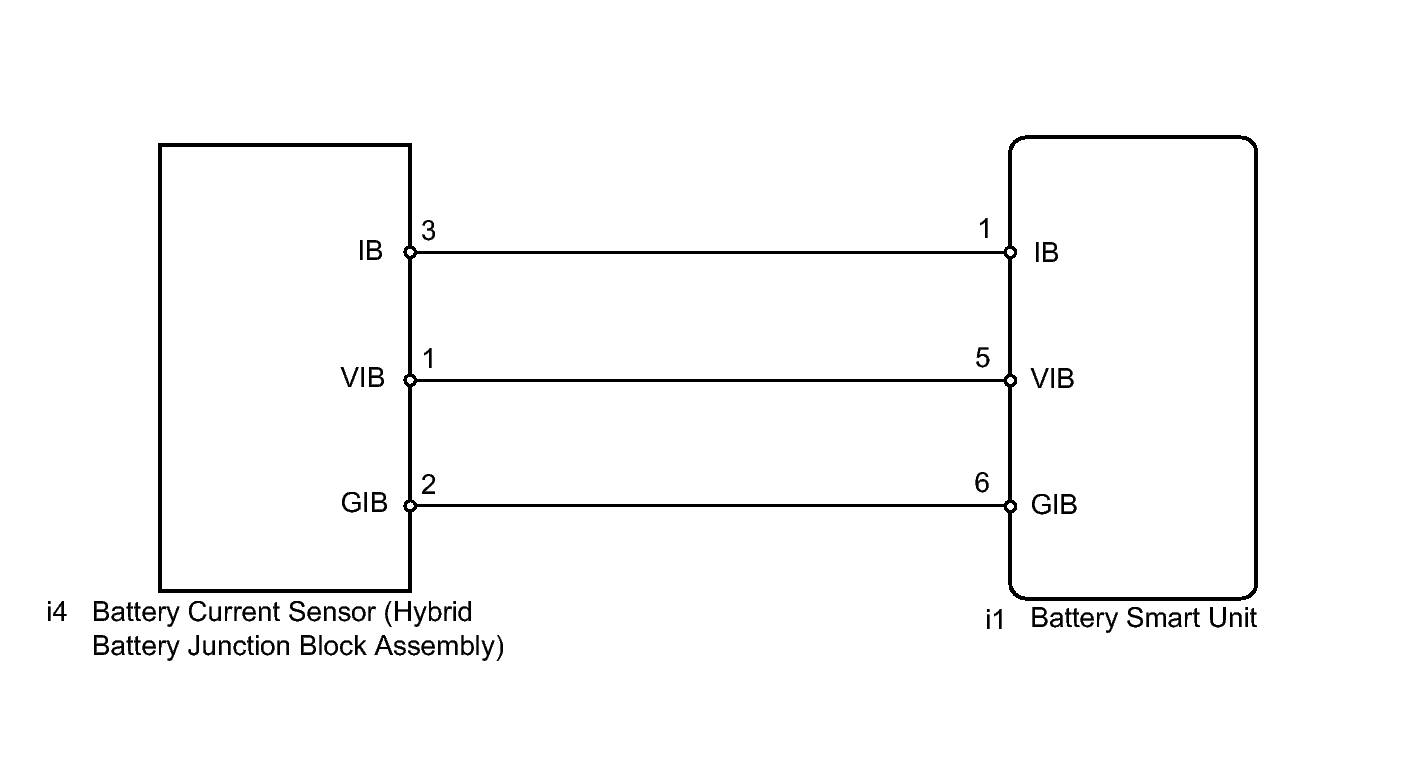

Fig 1: Identifying Battery Smart Unit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
