DTC P0A85-123: Hybrid Battery Pack Cooling Fan 1: Wiring Diagram

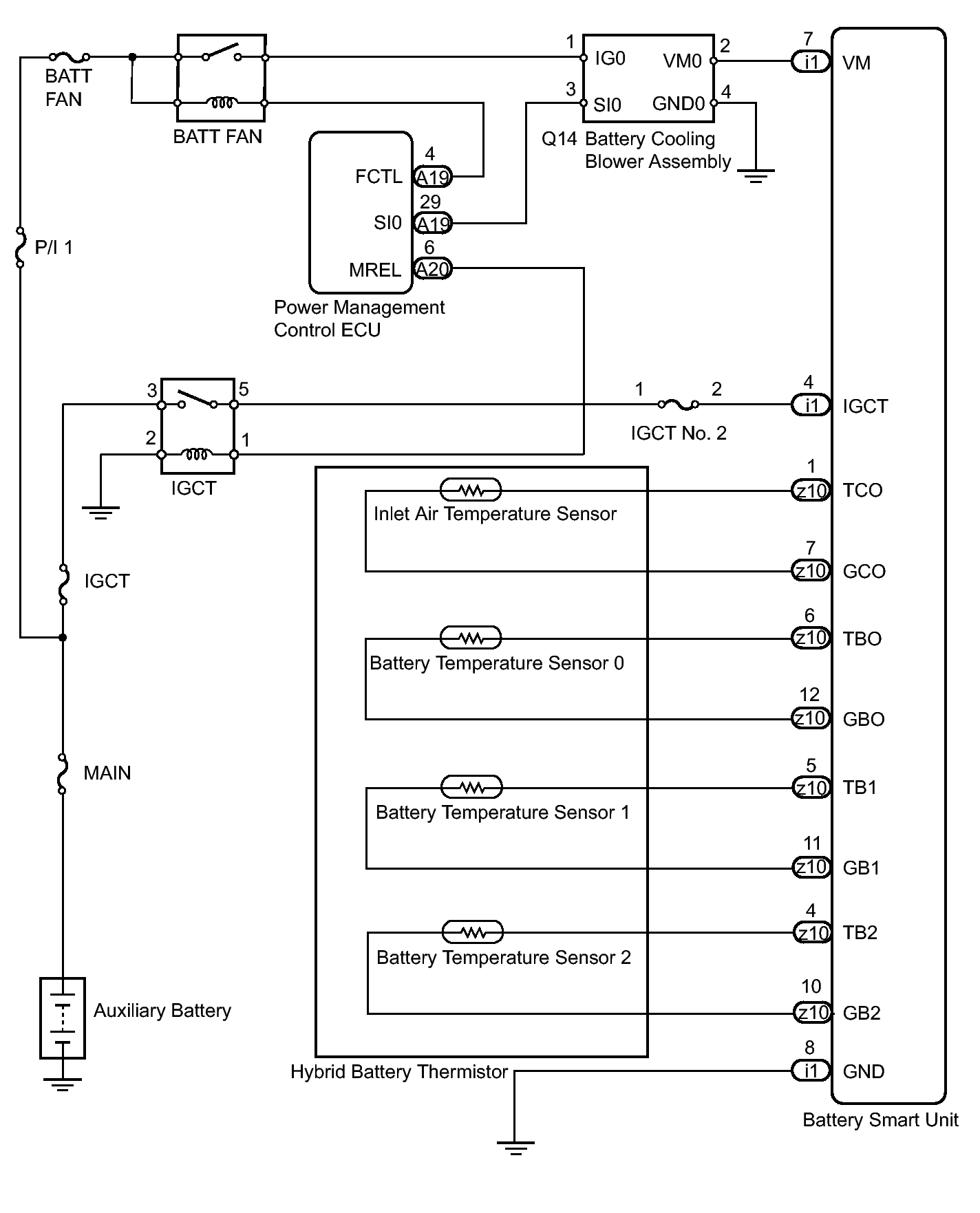

Fig 1: Hybrid Battery Pack Cooling Fan 1 Wiring Diagram

GTY393928

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
