Parts Location: Illustration

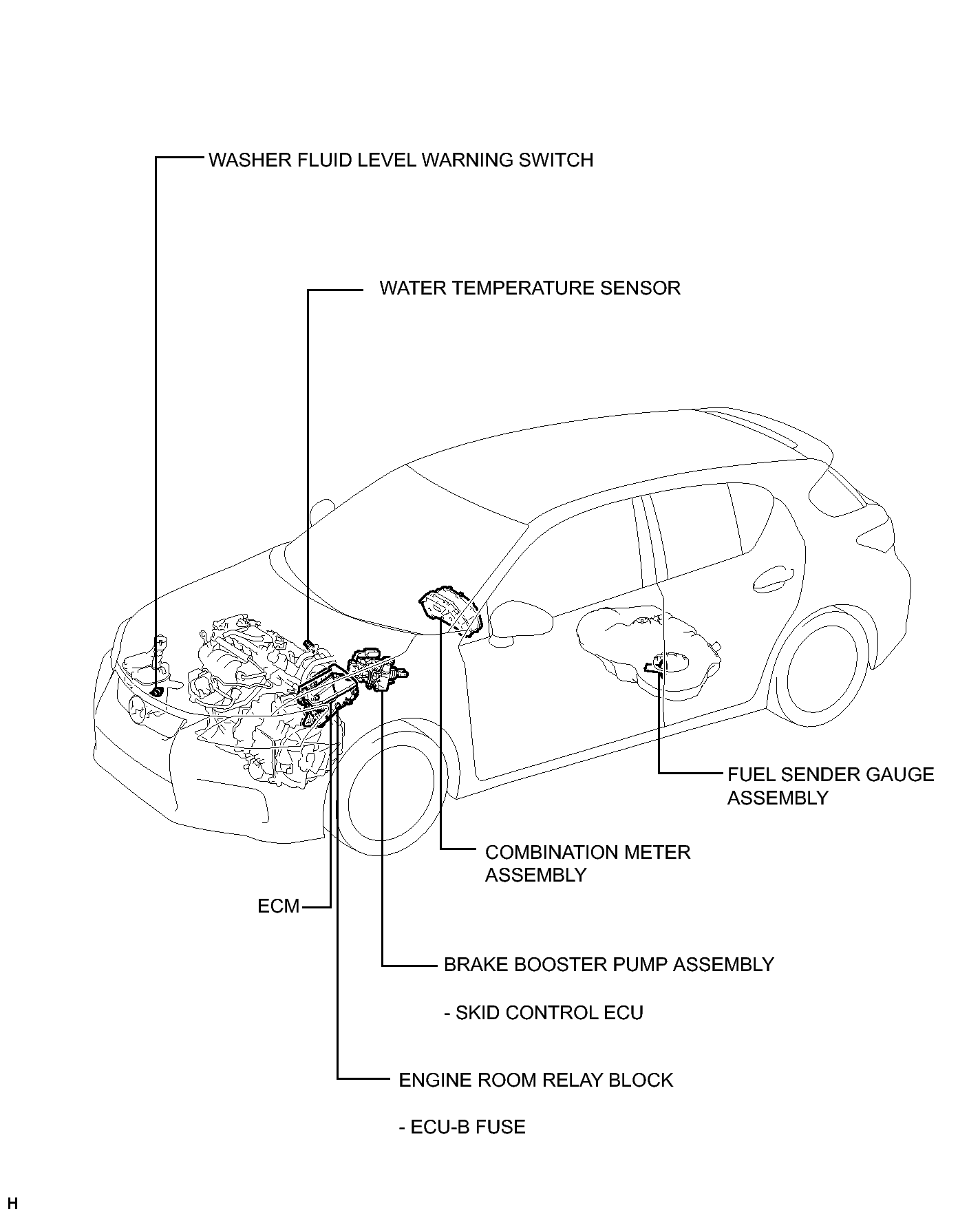

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 2)
GTY349563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

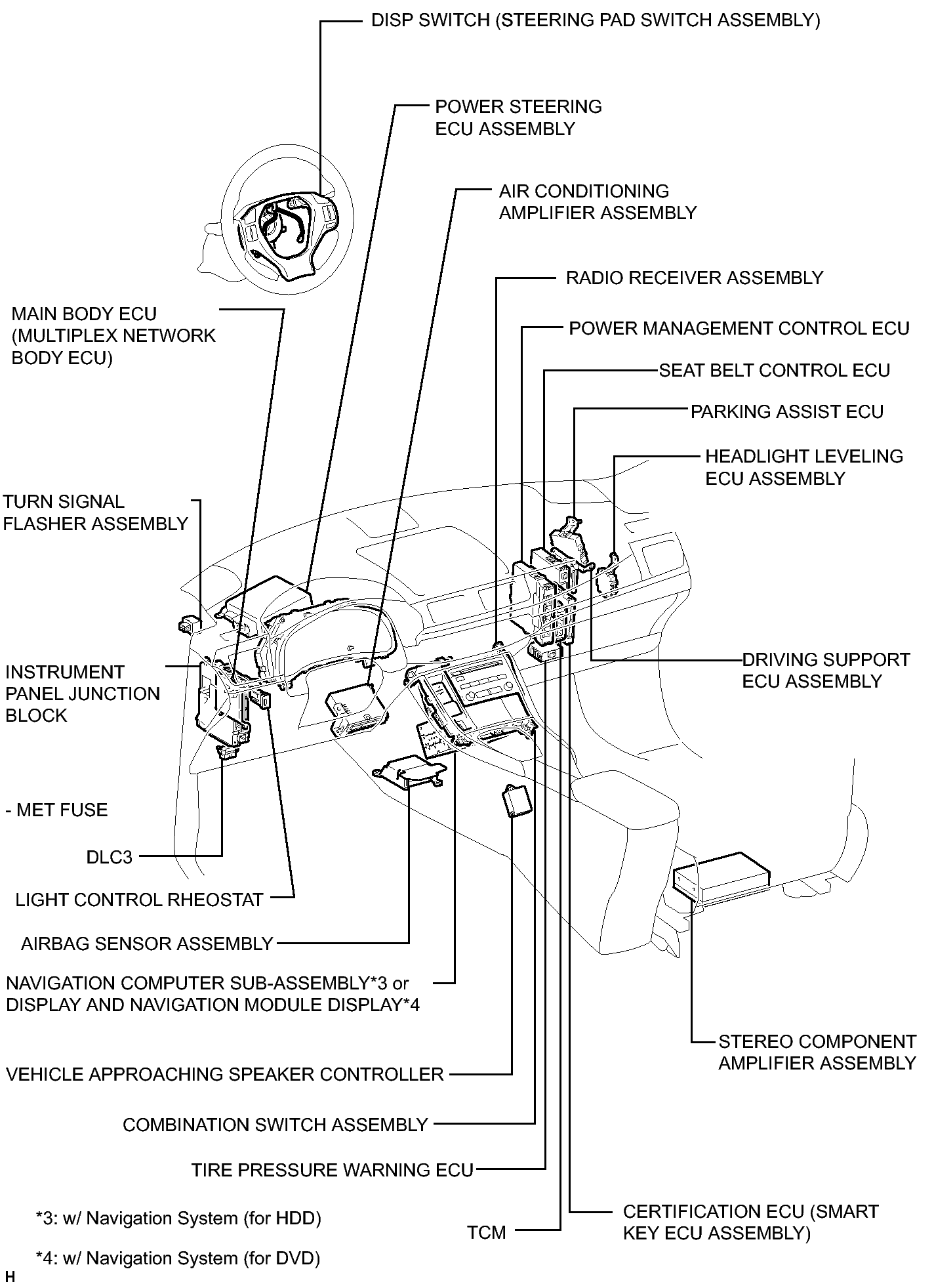

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 2)
GTY393466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
