Meter Illumination is Always Dark: Wiring Diagram

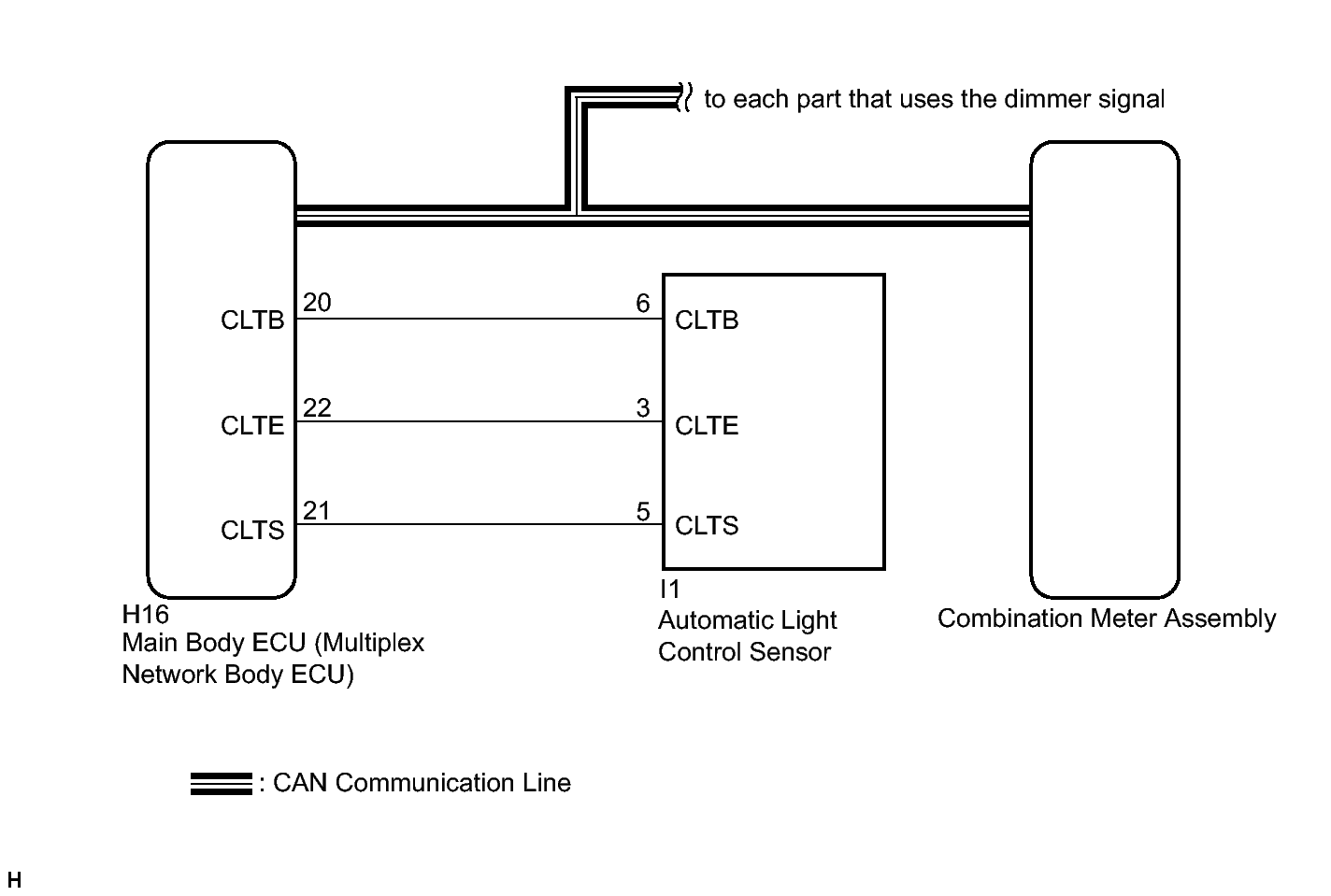

Fig 1: Identifying Meter Illumination Wiring Diagram

GTY350342

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
