DTC B1503: Exhaust Heat Management Warning Detected: Procedure
- READ VALUE USING TECHSTREAM
- Set the vehicle in the maintenance mode using the Techstream. Refer to INSPECTION MODE PROCEDURE .
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Combination Meter / Data List.
- Check the values by referring to the table below.COMBINATION METER
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Coolant Temperature Engine coolant temperature/-40 to 127.5°C (-40 to 261.5°F) After warming up: 75 to 100°C (167 to 212°F) - HINT:
- The coolant temperature value in this inspection is the data sent from the water coolant temperature sensor for the SFI system.
- When the Data List values do not match, a signal output error of the ECM is suspected.
OK
Engine coolant temperature displayed on the Techstream is 75 to 100°C (167 to 212°F) after warming up.
NG → See step 6
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - WATER TEMPERATURE SENSOR)
- Disconnect the F2 connector.
- Disconnect the H19 connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition F2-2 (TWS3) - H19-26 (TWS3) Always Below 1 Ω F2-1 (E2) - H19-34 (E2) Always Below 1 Ω F2-2 (TWS3) or H19-26 (TWS3) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- INSPECT WATER TEMPERATURE SENSOR
- Remove the water temperature sensor. Refer to REMOVAL .
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

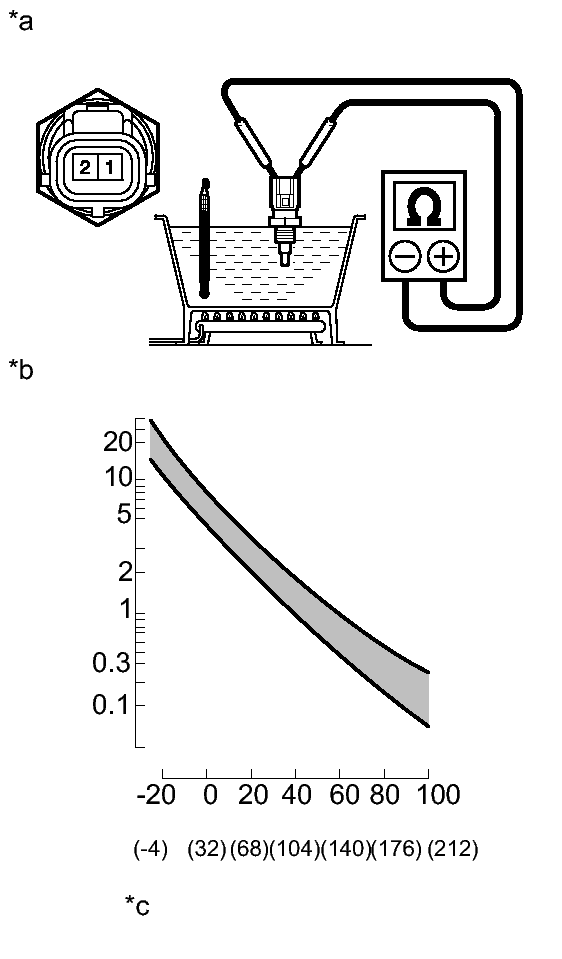

Tester Connection Condition Specified Condition 1 (E2) - 2 (TWS3) Temperature is 20°C (68°F) 2.32 to 2.59 kΩ 1 (E2) - 2 (TWS3) Temperature is 80°C (176°F) 0.310 to 0.326 kΩ TEXT IN ILLUSTRATION*a Component without harness connected
(Water Temperature Sensor)*b Resistance kΩ *c Temperature °C (°F)
NG → See step 4
OK → See step 5
- REPLACE WATER TEMPERATURE SENSOR. Refer to REMOVAL
- REPLACE COMBINATION METER ASSEMBLY. Refer to REMOVAL
- GO TO EXHAUST HEAT RECIRCULATION SYSTEM. Refer to PROBLEM SYMPTOMS TABLE
