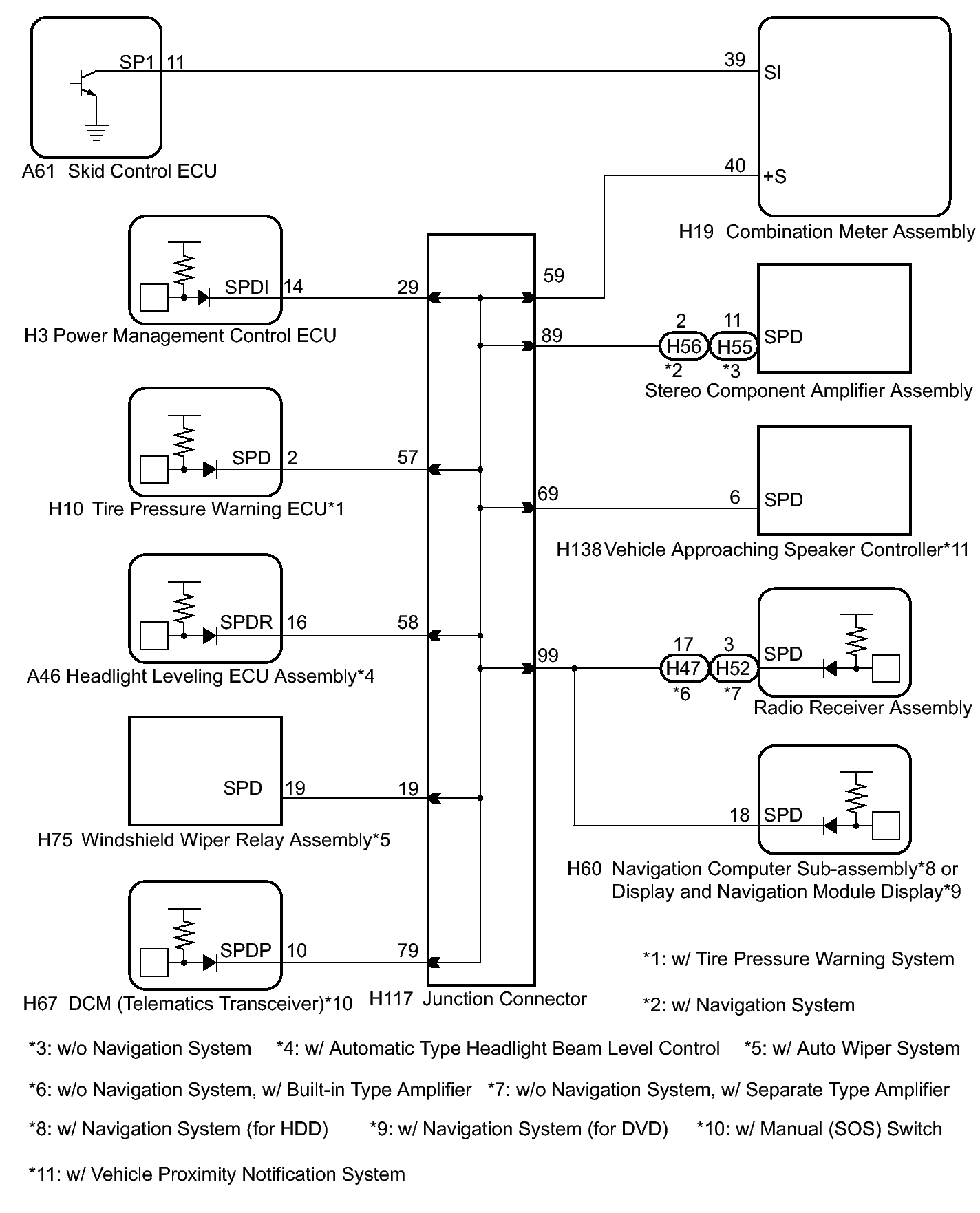

Home >> Lexus >> 2012 >> CT 200h Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge / Display (Diagnostic Codes & Symptom Tests) >> Meter / Gauge System >> Circuit Test >> Speed Signal Circuit >> Wiring Diagram
