DTC B1620/21: Side Airbag Sensor RH Circuit Malfunction: Wiring Diagram

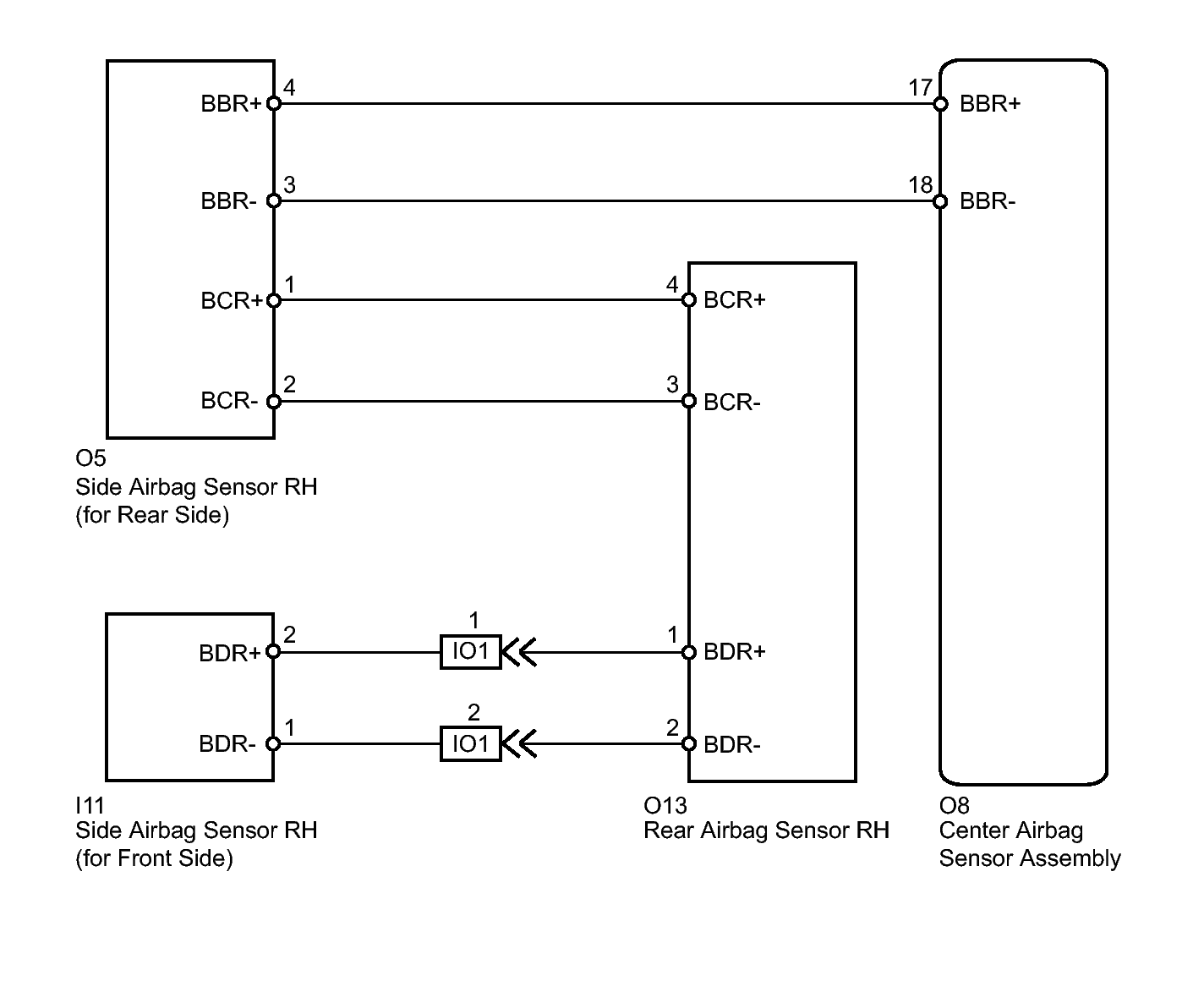

Fig 1: O13 Rear Airbag Sensor RH - Wiring Diagram

GTY271872

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
