Parts Location: Illustration

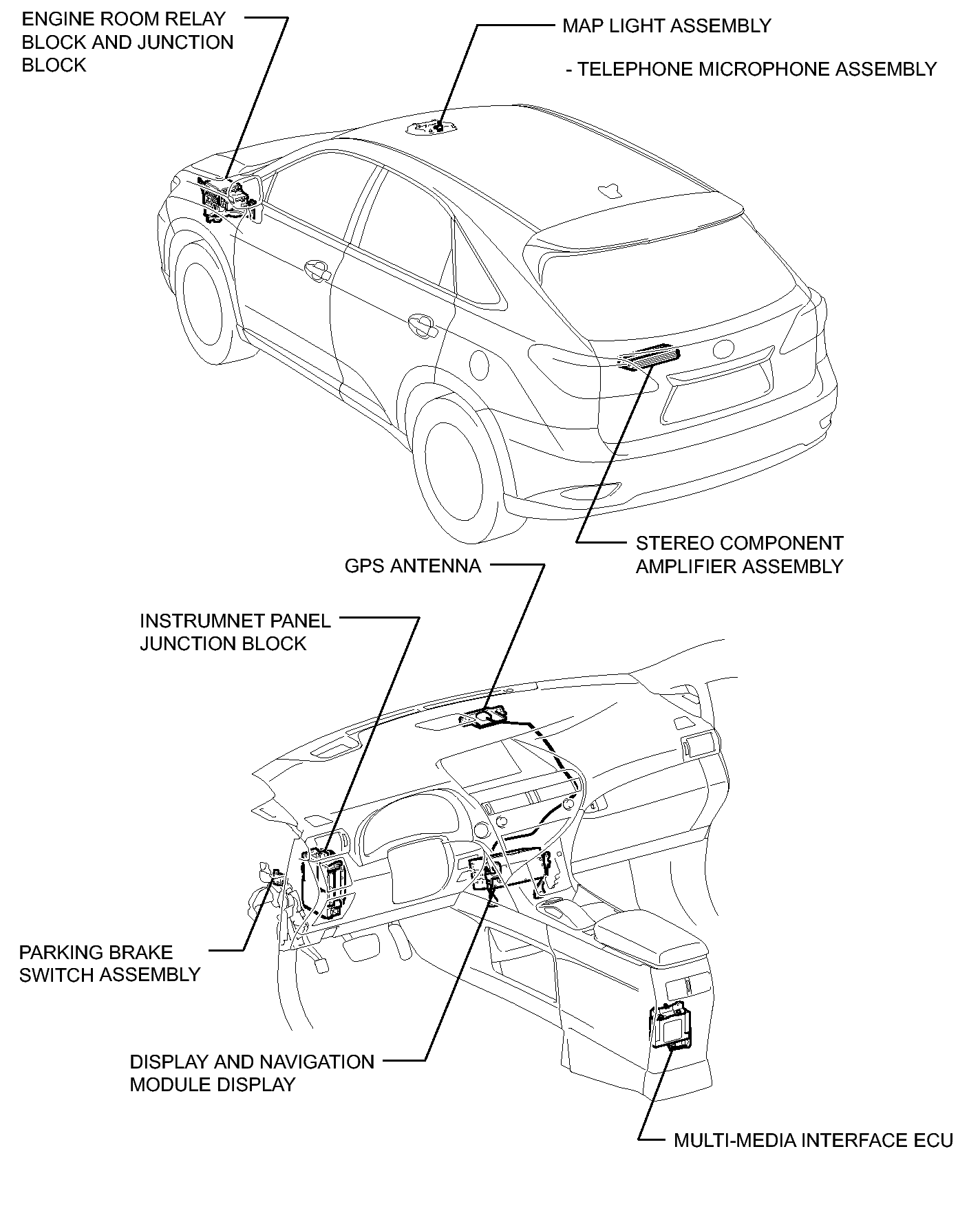

Fig 1: Identifying Navigation System (For DVD) Components Location (1 Of 2)
GTY255659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

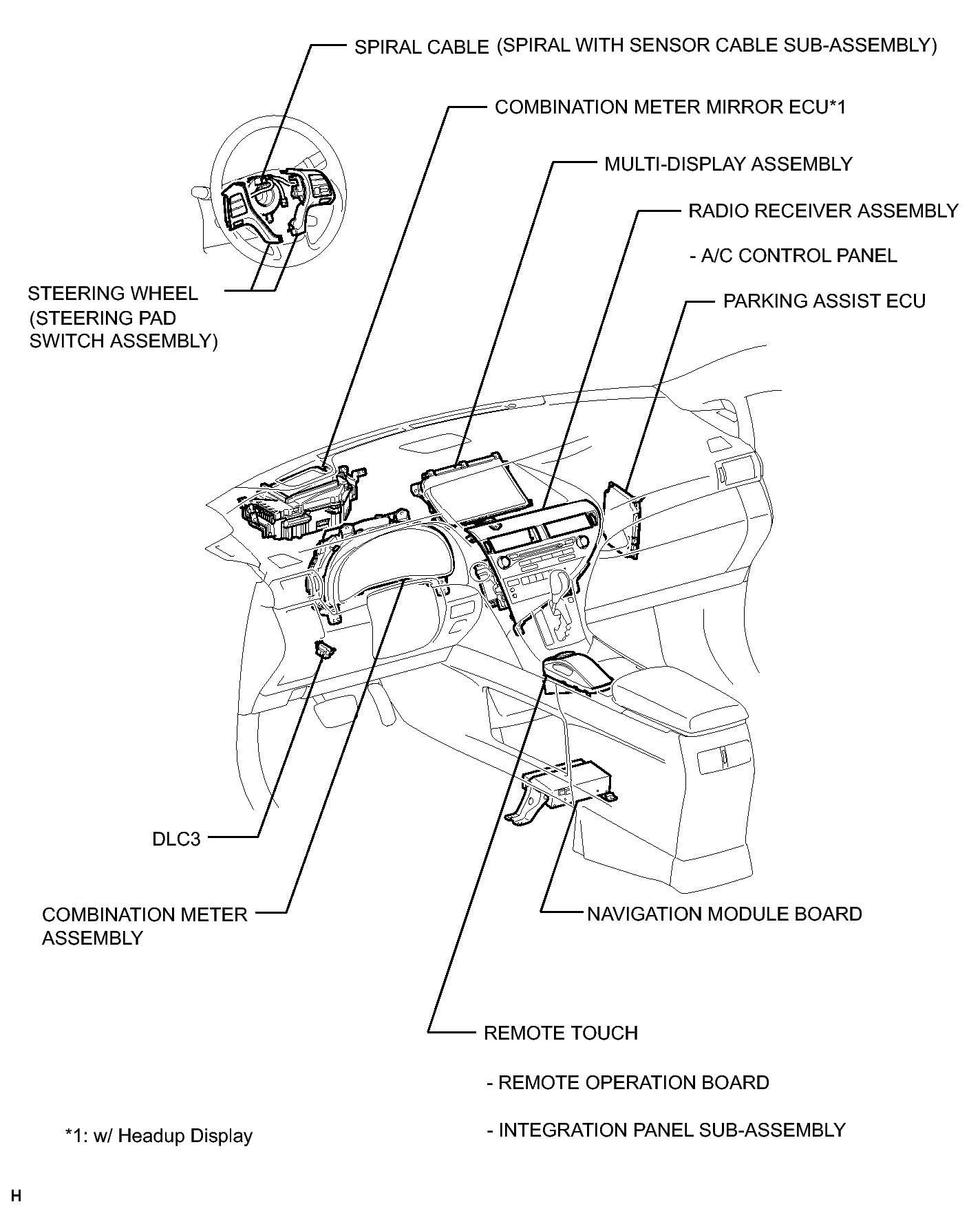

Fig 1: Identifying Navigation System (For DVD) Components Location (2 Of 2)
GTY355001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
