Instrument Panel Junction Block Assembly Inner Circuit

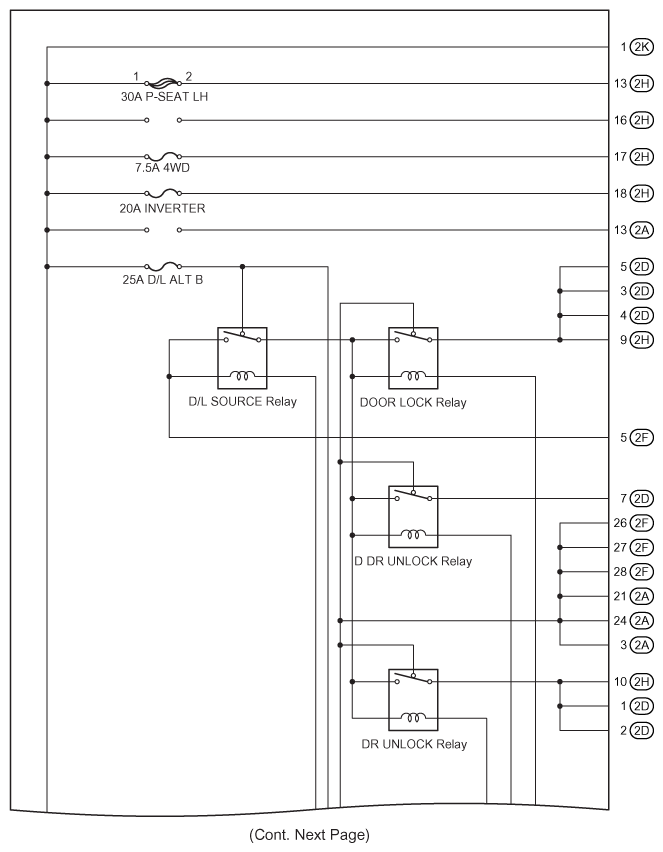

Fig 1: Instrument Panel J/B Assembly Inner Circuit Diagram (1 Of 6) With Relays
G07575954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
D/L Source Relay
DOOR LOCK Relay
D DR Unlock Relay
DR Unlock Relay

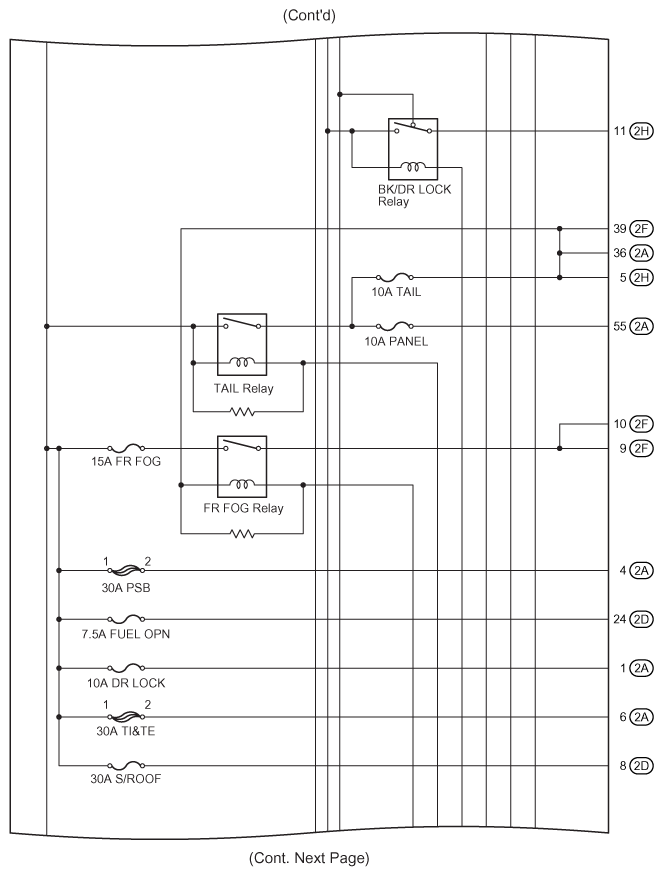

Fig 2: Instrument Panel J/B Assembly Inner Circuit Diagram (2 Of 6) With Relays
G07575955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
BK/DR LOCK Relay
Tail Relay
FR Fog Relay

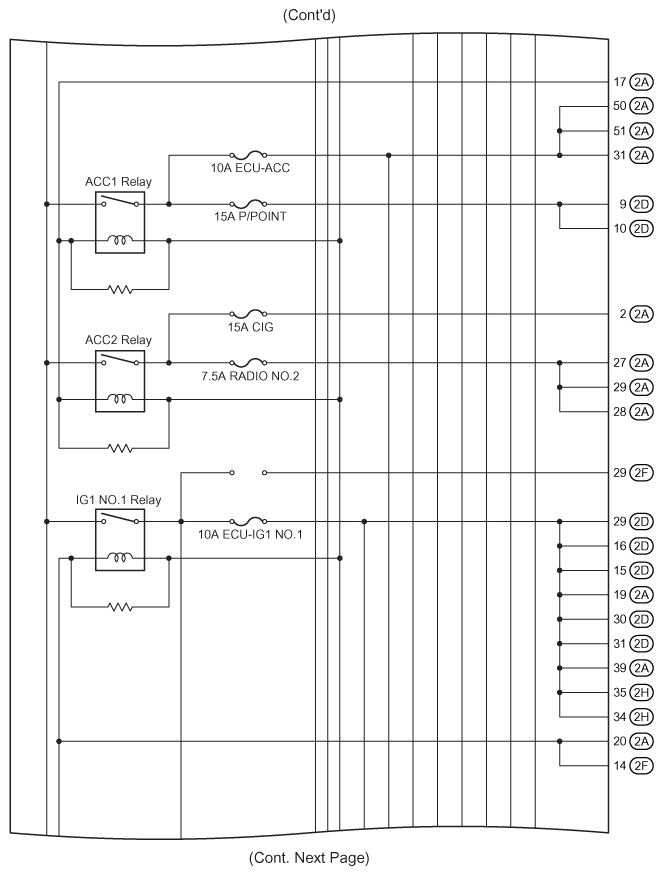

Fig 3: Instrument Panel J/B Assembly Inner Circuit Diagram (3 Of 6) With Relays
G07575956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
ACC1 Relay
ACC2 Relay
IG1 No.1 Relay

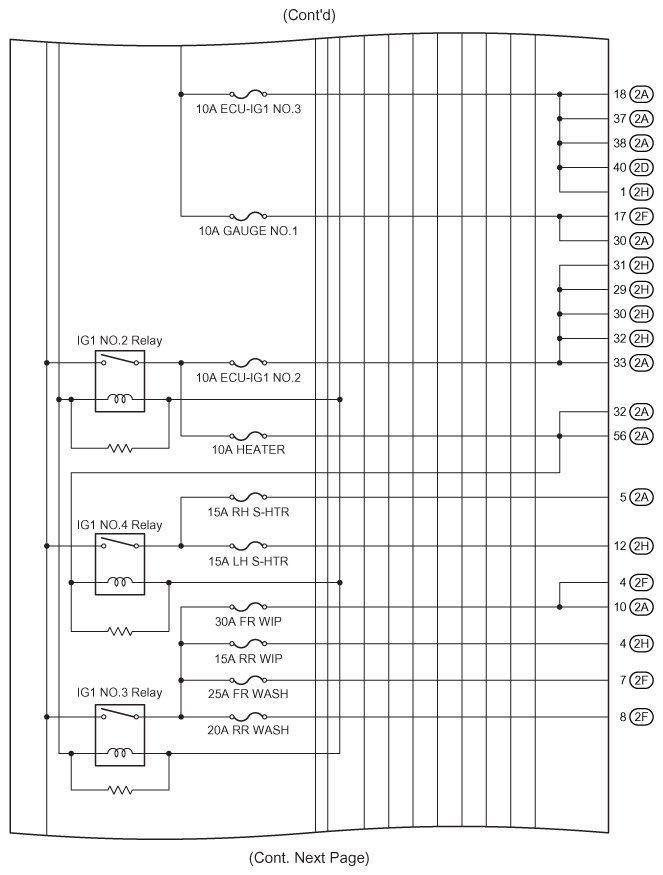

Fig 4: Instrument Panel J/B Assembly Inner Circuit Diagram (4 Of 6) With Relays
G07575957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
IG1 No.2 Relay
IG1 No.4 Relay
IG1 No.3 Relay

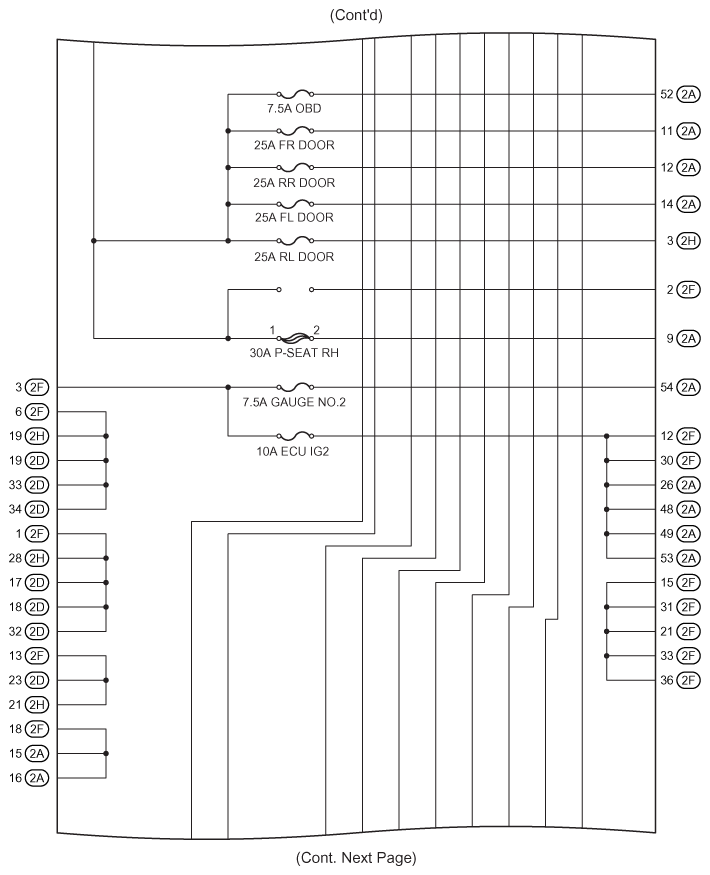

Fig 5: Instrument Panel J/B Assembly Inner Circuit Diagram (5 Of 6)
G07575958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

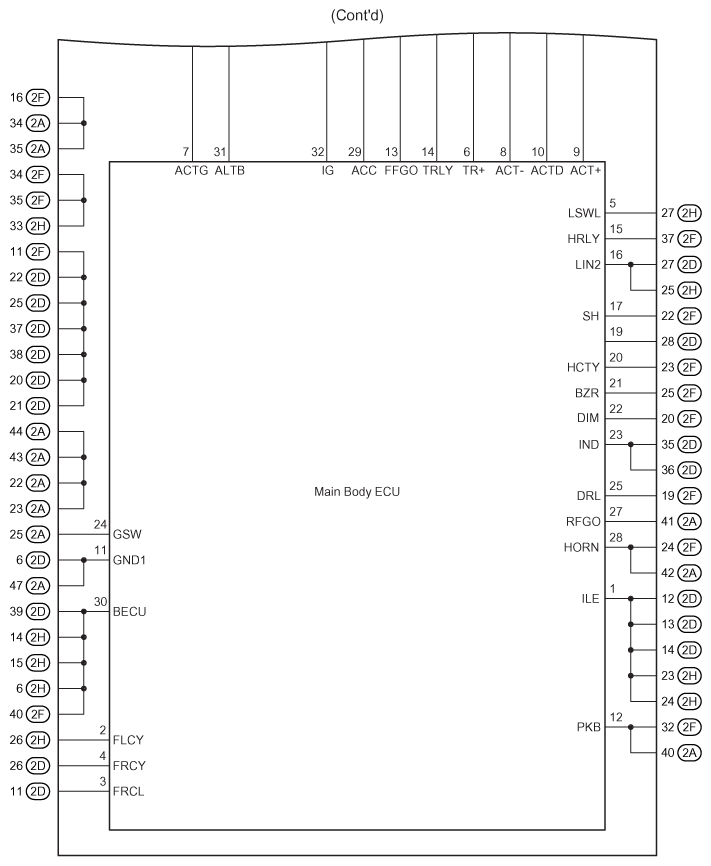

Fig 6: Instrument Panel J/B Assembly Inner Circuit Diagram (6 Of 6)
G07575959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
