  1. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 7 claws, 4 clips and guide, and remove the front door scuff plate LH.
      Fig 1: Engage The 4 Clips, Guide And 7 Claws
      GTY273347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      A part of the clip remains on the vehicle side.

    2. w/ Illumination:
      1. Disconnect the connector.
  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the clip.
      Fig 2: Remove The Clip
      GTY268384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips and remove the cowl side trim sub-assembly LH.
  3. REMOVE INSTRUMENT SIDE PANEL LH
    1. Using molding remover A, disengage the claw and 2 clips.
      Fig 3: Claw And 2 Clips
      GTY358805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the instrument side panel LH.
  4. REMOVE FRONT PILLAR GARNISH LH
    1. Pull the upper part of the garnish toward the inside of the cabin and disengage the garnish from the base of the 2 clips.

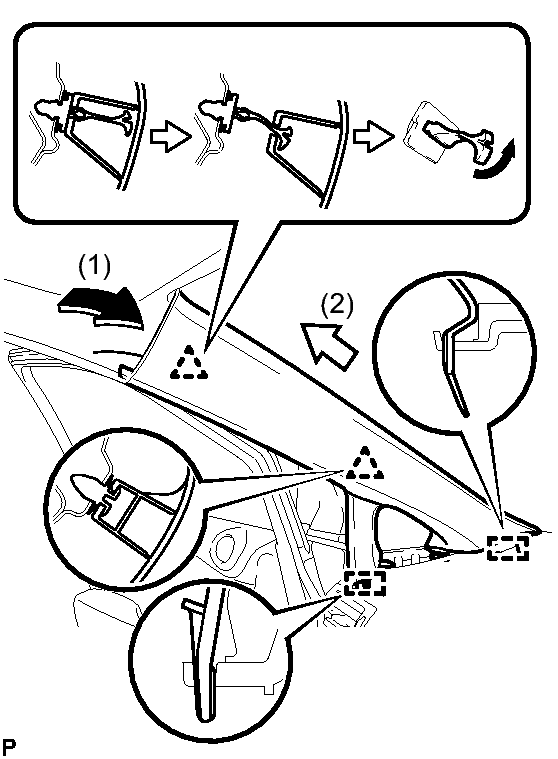

      Fig 4: Base Of The 2 Clips
      GTY255021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Make the front pillar garnish LH hang down from the front pillar garnish clip.

    2. Turn the end of the front pillar garnish clip 90° with needle-nosed pliers and remove it from the front pillar garnish LH.
      NOTE:
      • Front pillar garnish clips are reusable if they are not removed from the vehicle and have no damage.
      • Replace the front pillar garnish clips with new ones if they are removed from the vehicle.

      HINT:

      Tape the tips of the needle-nosed pliers before use.

    3. Disengage the 2 guides and remove the front pillar garnish LH.
    4. Protect the curtain shield airbag assembly.
      Fig 5: Adhesive Tape, Protective Cover & Curtain Shield Airbag Assembly
      GTY355630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Adhesive Tape
      *2 Protective Cover
      *3 Curtain Shield Airbag Assembly
      1. Cover the airbag with a cloth or piece of nylon and secure the ends of the cover with tape, as shown in the illustration.

        Protective Cover size

        X

        700 mm (2.30 ft.)

        Y

        120 mm (4.72 in.)

        NOTE:

        Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.

  5. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the 6 claws, 3 clips and guide, and remove the rear door scuff plate LH.
      Fig 6: Engage The 3 Clips, Guide And 6 Claws
      GTY268784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE LOWER CENTER PILLAR GARNISH LH
    1. Disengage the 2 claws and 5 clips, and remove the lower center pillar garnish LH.
      Fig 7: 2 Claws And 5 Clips
      GTY352848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH  . Refer to REMOVAL - Step 6
  8. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the 2 screws.
      Fig 8: 2 Screws & Disengage The Clip
      GTY352846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a clip remover, disengage the clip.
    3. Pass the floor anchor of the front seat outer seat belt assembly LH through the center pillar garnish LH and remove the center pillar garnish LH.
  9. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  10. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  11. REMOVE INSTRUMENT SIDE PANEL RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  12. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  13. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  14. REMOVE LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  15. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  16. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  17. REMOVE DECK BOARD SUB-ASSEMBLY
    1. Disengage the 3 fasteners as shown in the illustration.
      Fig 9: Disengage The 3 Fasteners
      GTY352839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Compact Spare Tire:
      1. Remove the 2 bolts and remove the deck board sub-assembly.
        Fig 10: Remove The 2 Bolts
        GTY264147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. for Full Size Spare Tire:
      1. Remove the 2 bolts and remove the deck board sub-assembly.
        Fig 11: Remove The 2 Bolts
        GTY264345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE SPARE WHEEL COVER ASSEMBLY (for Compact Spare Tire)
    1. Remove the spare wheel cover assembly.
  19. REMOVE NO. 4 REAR FLOOR BOARD (for Compact Spare Tire)
    1. Disengage the 2 guides and remove the No. 4 rear floor board.
      Fig 12: Engage The 2 Guides
      GTY283932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 4 REAR FLOOR BOARD (for Full Size Spare Tire)
    1. Disengage the 2 guides and remove the No. 4 rear floor board.
      Fig 13: Engage The 2 Guides
      GTY264759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE NO. 3 REAR FLOOR BOARD (for Compact Spare Tire)
    1. Disengage the 2 guides and remove the No. 3 rear floor board.
      Fig 14: Engage The 2 Guides
      GTY284442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 3 REAR FLOOR BOARD (for Full Size Spare Tire)
    1. Disengage the 2 guides and remove the No. 3 rear floor board.
      Fig 15: Engage The 2 Guides
      GTY284496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE TONNEAU COVER ASSEMBLY
    1. Remove the tonneau cover assembly.
  24. REMOVE REAR DECK FLOOR BOX
    1. Remove the 3 clips and the rear deck floor box.
      Fig 16: Remove The 3 Clips
      GTY265751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE DECK SIDE TRIM BOX LH (for Compact Spare Tire)
    1. Remove the 2 clips and the deck side trim box LH.
      Fig 17: Remove The 2 Clips
      GTY259008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE DECK SIDE TRIM BOX LH (for Full Size Spare Tire)
    1. Remove the 3 clips and the deck side trim box LH.
      Fig 18: Remove The 3 Clips
      GTY258359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE DECK SIDE TRIM BOX RH (for Compact Spare Tire)
    1. Remove the 2 clips and deck side trim box RH.
      Fig 19: Remove The 2 Clips
      GTY284541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE DECK SIDE TRIM BOX RH (for Full Size Spare Tire)
    1. Remove the 3 clips and the deck side trim box RH.
      Fig 20: Remove The 3 Clips
      GTY267388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE FRONT DECK FLOOR BOX
    1. Remove the clip and the front deck floor box.
      Fig 21: Remove The Clip
      GTY258601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REAR FLOOR FINISH PLATE
    1. Disengage the 2 claws, 6 clips and 2 guides, and remove the rear floor finish plate.

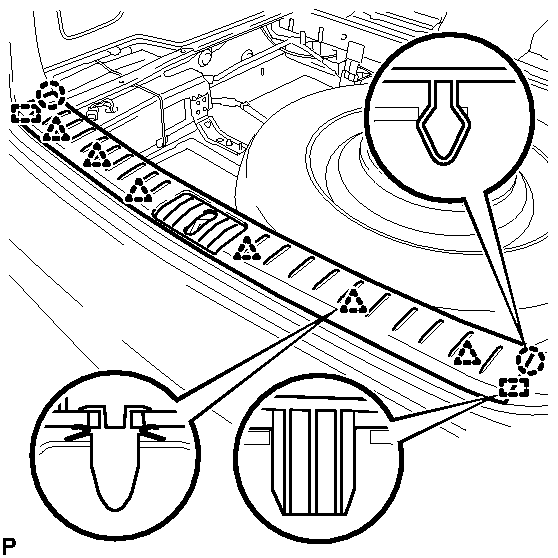

      Fig 22: Engage The 6 Clips, 2 Claws And 2 Guides
      GTY258372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR FLOOR FINISH SIDE PLATE LH
    1. Remove the clip.
      Fig 23: Remove The Clip & Disengage The Claw And 2 Clips
      GTY282366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and 2 clips.
    3. Disengage the guide and remove the rear floor finish side plate LH.
  32. REMOVE REAR SEAT ASSEMBLY LH
    1. Remove the rear seat assembly LH. Refer to REMOVAL .
  33. REMOVE REAR SEAT SIDE COVER LH
    1. Remove the 2 clips.
      Fig 24: Remove The 2 Clips
      GTY282264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and 3 clips, and remove the rear seat side cover LH.

      HINT:

      A part of the clip remains on the vehicle side.

  34. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)
    1. Remove the No. 1 luggage compartment trim hook as shown in the illustration.
      Fig 25: No. 1 Luggage Compartment Trim Hook
      GTY352805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE ROPE HOOK ASSEMBLY (for LH Side)
    1. Using a screwdriver, disengage the 2 claws.
      Fig 26: Disengage The 2 Claws
      GTY358517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 bolts and the 2 rope hook assemblies.
  36. REMOVE RECLINING REMOTE CONTROL BEZEL LH
    1. Using molding remover A, disengage the 2 bottom claws of the reclining remote control bezel LH.

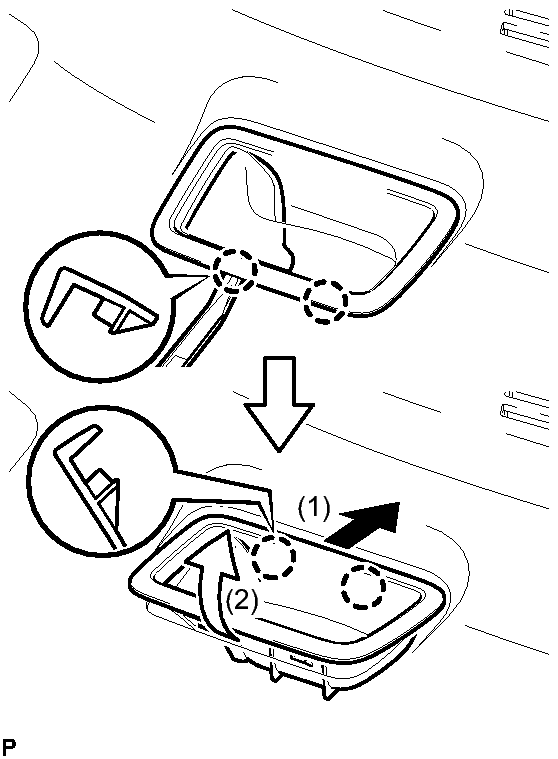

      Fig 27: Disengage The 2 Bottom Claws
      GTY350964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the reclining remote control bezel LH as shown by the arrow (1) in the illustration.
    3. Turn the reclining remote control bezel LH as shown by the arrow (2) in the illustration, then disengage the 2 upper claws and remove the bezel.
  37. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Remove the 2 screws.
    2. Remove the 4 clips.
    3. Disengage the 5 claws and 2 clips.
    4. Disconnect each connector and remove the deck trim side panel assembly LH.

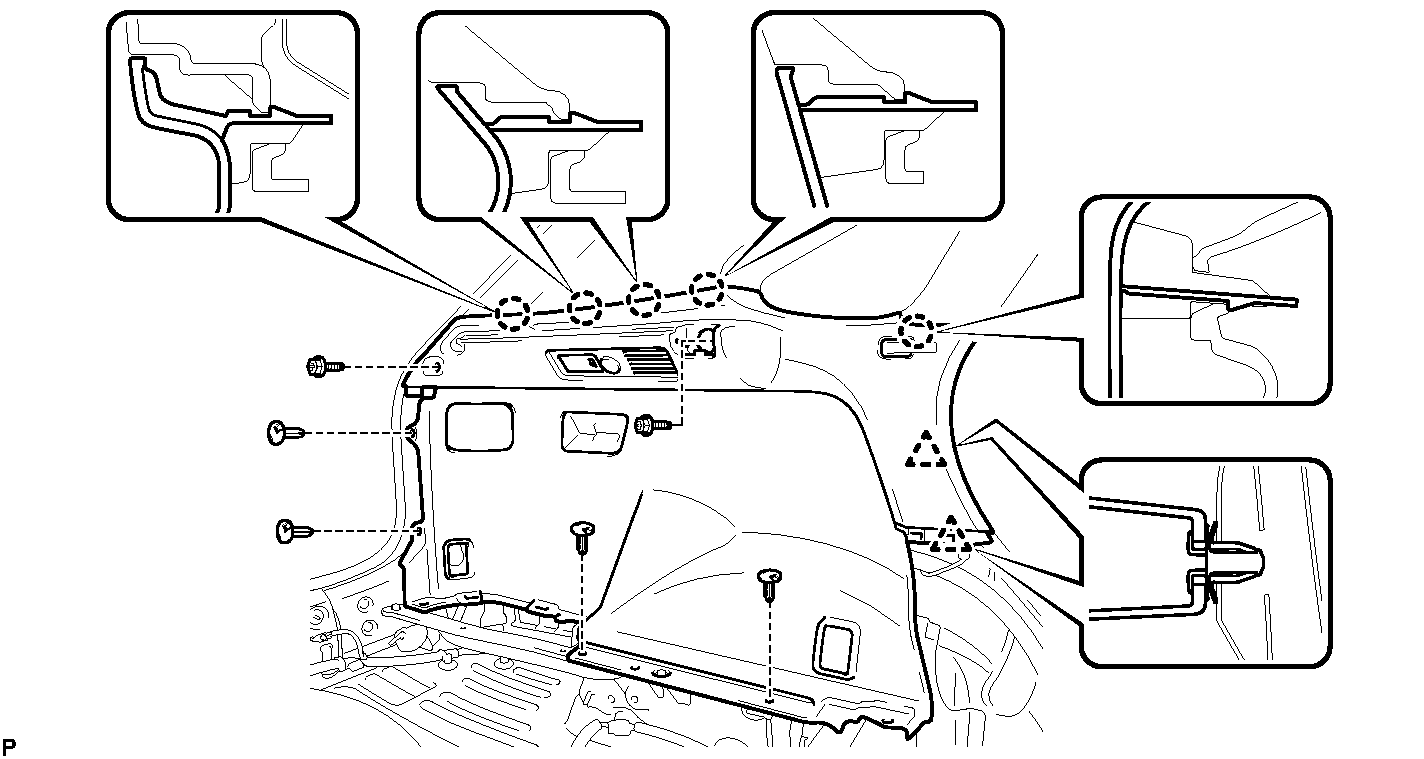

      Fig 28: Remove The 2 Screws, 4 Clips, 5 Claws And 2 Clips & Each Connector
      GTY287300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH  . Refer to REMOVAL - Step 28
  39. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Disengage the claw and 8 clips.

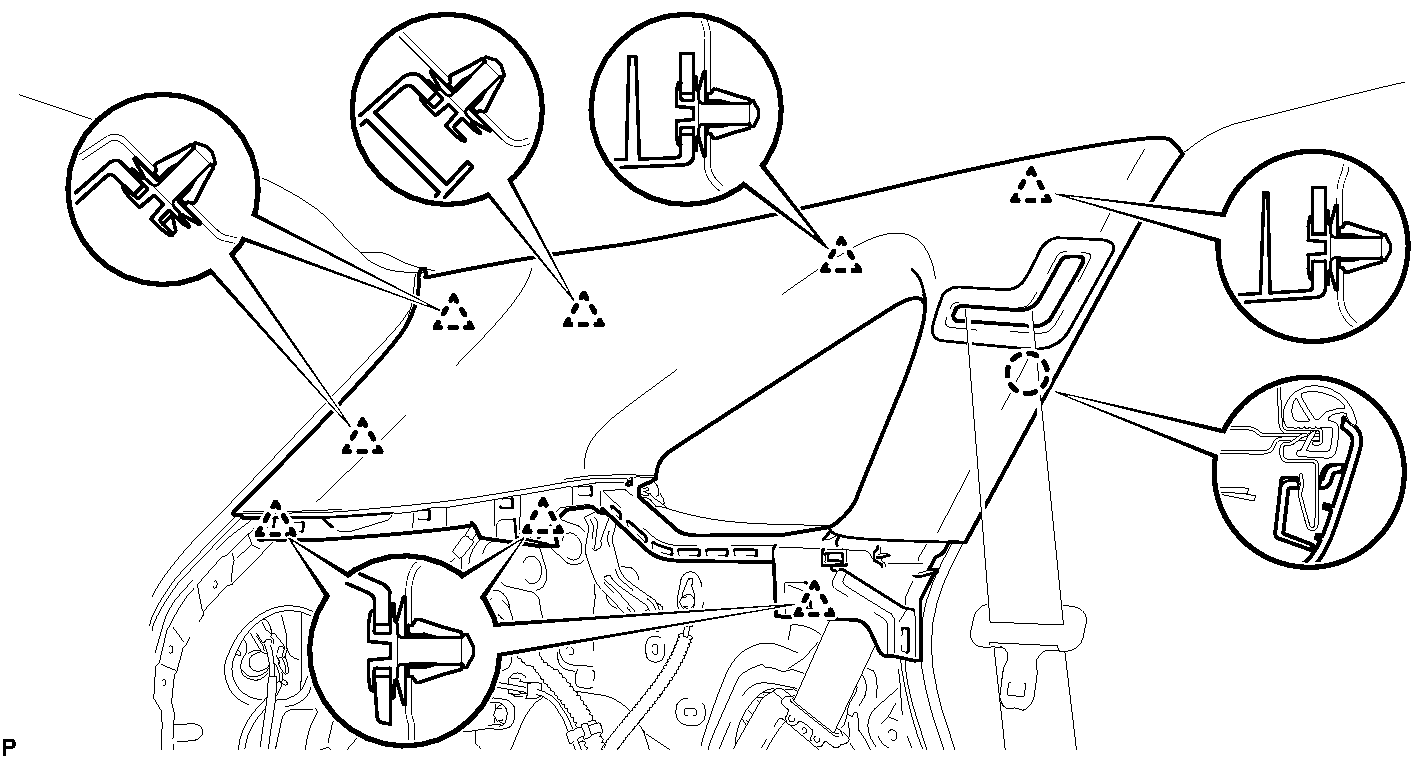

      Fig 29: Engage The Claw And 8 Clips
      GTY279450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      A part of the clip remains on the vehicle side.

    2. Pass the floor anchor of the rear seat outer seat belt assembly LH through the roof side inner garnish assembly LH and remove the roof side inner garnish assembly LH.
  40. REMOVE REAR FLOOR FINISH SIDE PLATE RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  41. REMOVE REAR SEAT ASSEMBLY RH
    1. Remove the rear seat assembly RH. Refer to REMOVAL .
  42. REMOVE REAR SEAT SIDE COVER RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  43. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)
    1. Remove the No. 1 luggage compartment trim hook as shown in the illustration.
      Fig 30: No. 1 Luggage Compartment Trim Hook
      GTY352807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE ROPE HOOK ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure for the RH side and the LH side.

  45. REMOVE RECLINING REMOTE CONTROL BEZEL RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  46. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Remove the 2 screws.
    2. Remove the 4 clips.
    3. Disengage the 5 claws and 2 clips.
    4. Disconnect the connector and remove the deck trim side panel assembly RH.

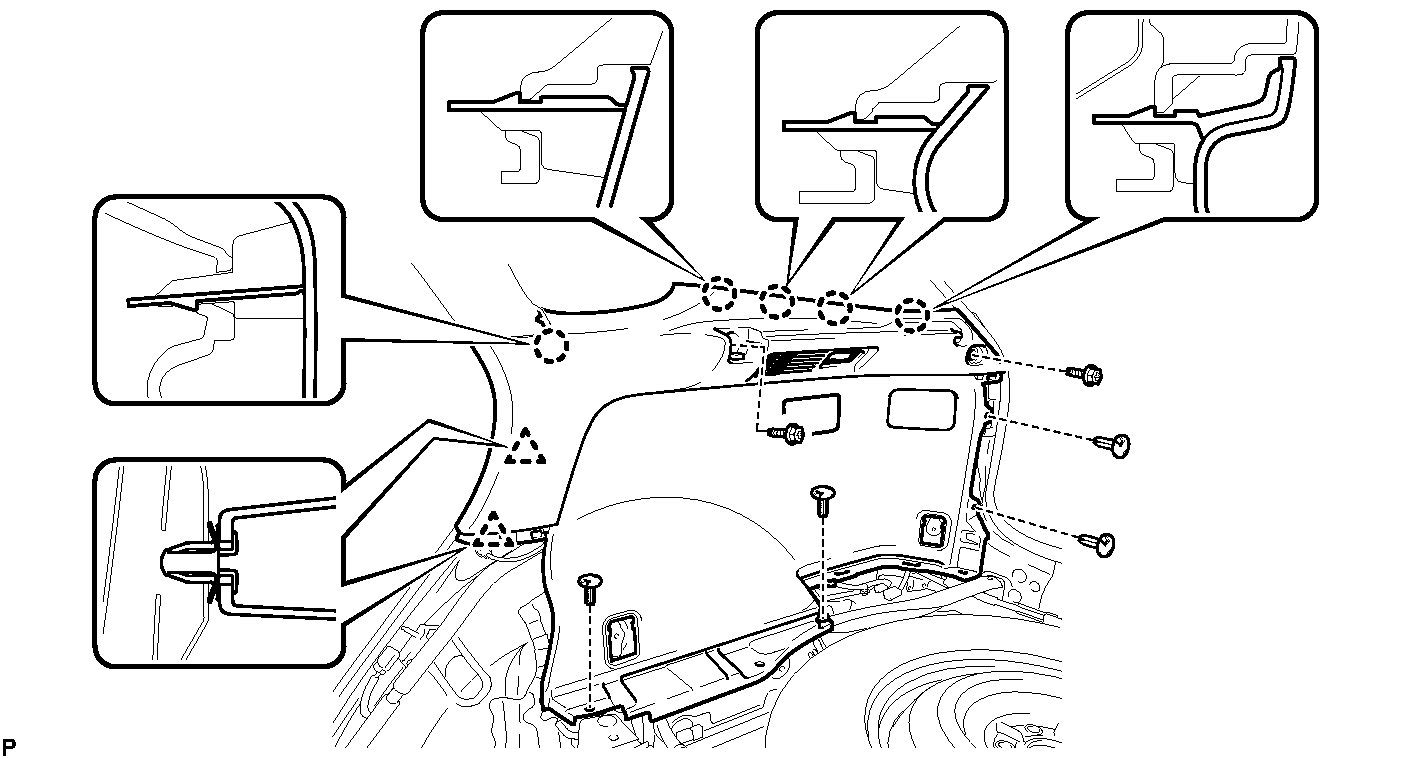

      Fig 31: Remove The 2 Screws, 4 Clips, 5 Claws And 2 Clips
      GTY279274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  48. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  49. REMOVE MAP LIGHT ASSEMBLY  . Refer to REMOVAL - Step 1
  50. REMOVE SPOT LIGHT ASSEMBLY  . Refer to REMOVAL - Step 1
  51. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Automatic High Beam System)  . Refer to REMOVAL - Step 1
  52. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ Automatic High Beam System)  . Refer to REMOVAL - Step 2
  53. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)  . Refer to REMOVAL - Step 1
  54. REMOVE COAT HOOK
    1. Remove the screw and coat hook.
      Fig 32: Coat Hook With Screw
      GTY132702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and the LH side.

  55. REMOVE ASSIST GRIP SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws and remove the 2 assist grip covers.
      Fig 33: Disengage The 4 Claws
      GTY349726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      NOTE:

      Do not forcibly pry the assist grip covers to prevent them from being deformed.

      HINT:

      Tape the screwdriver tip before use.

    2. Disengage the 2 clips and remove the assist grip sub-assembly.

      HINT:

      Use the same procedure for the other 3 assist grips.

  56. REMOVE VISOR BRACKET COVER (for LH Side)
    1. Using molding remover C, disengage the 4 claws and remove the visor bracket cover.
      Fig 34: Disengage The 4 Claws
      GTY352794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and remove the visor assembly LH.
      Fig 35: Remove The 2 Screws
      GTY277357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE VISOR BRACKET COVER (for RH Side)

    HINT:

    Use the same procedure for the RH side and the LH side.

  59. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  60. REMOVE VISOR HOLDER (for LH Side)
    1. Turn the visor holder approximately 45° and pull it out as shown in the illustration.
      Fig 36: Removing Visor Holder
      GTY230201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the visor holder.
  61. REMOVE VISOR HOLDER (for RH Side)

    HINT:

    Use the same procedure for the RH side and the LH side.

  62. REMOVE ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
    1. Disconnect the No. 2 antenna cord sub-assembly connectors and washer hose, and disengage the 2 claws and 3 clamps from the rear pillar RH.
      Fig 37: Engage The 2 Claws And 3 Clamps
      GTY270240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Rain Sensor:
      1. Disconnect the No. 1 roof wire connector from the rain sensor.
        Fig 38: Disconnect the No. 1 Roof Wire Connector
        GTY285041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the No. 1 roof wire connector from the inner rear view mirror.
      Fig 39: Disconnect The No. 1 Roof Wire Connector
      GTY277676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/o Manual (SOS) Switch:
      1. Disconnect the No. 1 roof wire connectors and disengage the 2 claws from the front pillar LH.
    5. w/ Manual (SOS) Switch:
      1. Disconnect the No. 1 roof wire connectors and No. 5 antenna cord sub-assembly connector, disengage the 2 claws from the front pillar LH.
      2. Disconnect the No. 5 antenna cord sub-assembly connector, disengage the 2 claws and clamp from the rear pillar LH.
    6. Disconnect the No. 2 antenna cord sub-assembly connector and washer hose, and disengage the 2 claws from the front pillar RH.
    7. Disengage the 12 claws and 3 clips.

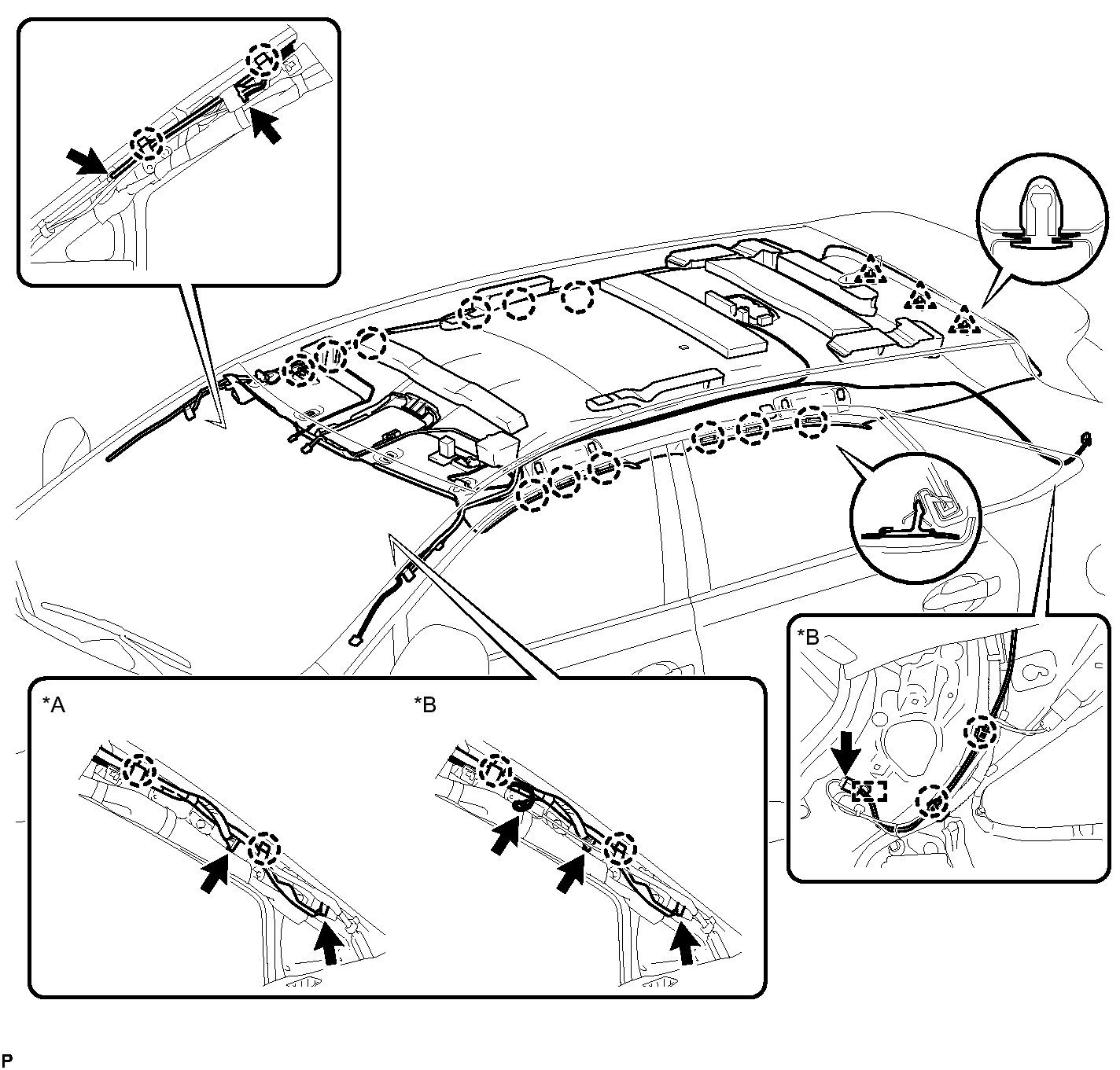

      Fig 40: Disengage The 12 Claws And 3 Clips
      GTY262469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A w/o Manual (SOS) Switch *B w/ Manual (SOS) Switch
    8. Disengage the 2 fasteners.

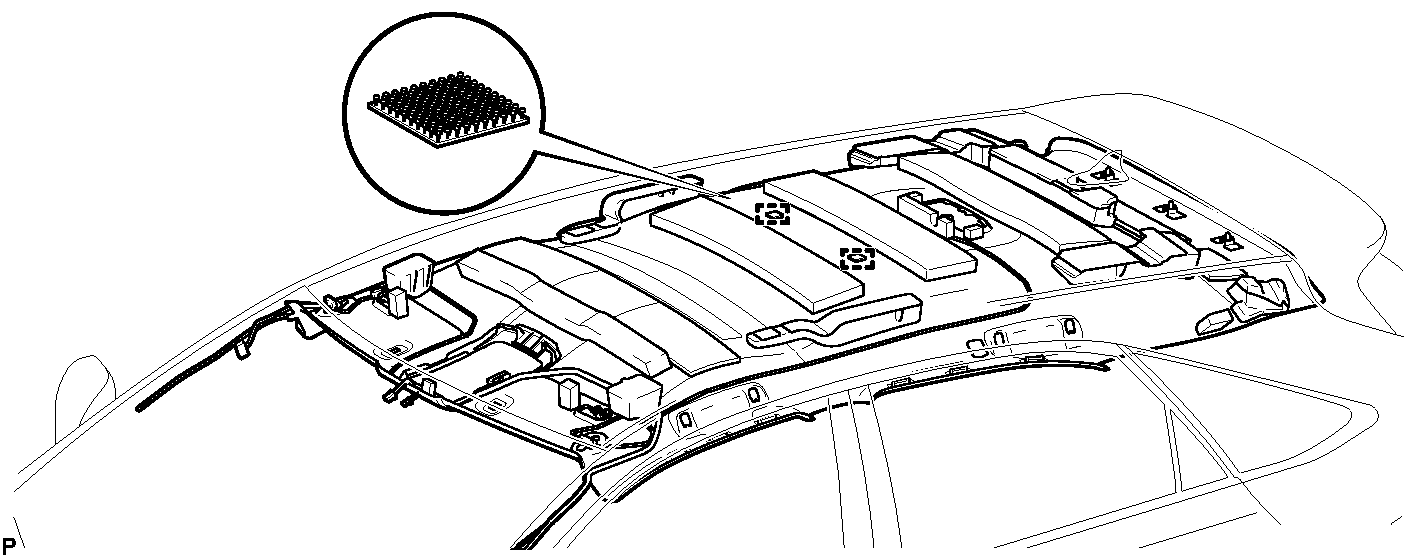

      Fig 41: Engage the 2 fasteners, 12 claws and 3 clips.
      GTY278834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the roof headlining assembly from the vehicle through the back door.
      Fig 42: Roof Headlining Assembly
      GTY352950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the roof headlining assembly or body interior.

  63. REMOVE ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
    1. Disconnect the No. 2 antenna cord sub-assembly connectors and washer hose, and disengage the 2 claws and 3 clamps from the rear pillar RH.
      Fig 43: Engage The 2 Claws And 3 Clamps
      GTY270240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Rain Sensor:
      1. Disconnect the No. 1 roof wire connector from the rain sensor.
        Fig 44: Disconnect the No. 1 Roof Wire Connector
        GTY285041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the No. 1 roof wire connector from the inner rear view mirror.
      Fig 45: Disconnect The No. 1 Roof Wire Connector
      GTY277676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/o Manual (SOS) Switch:
      1. Disconnect the No. 1 roof wire connectors and disengage the 2 claws from the front pillar LH.
    5. w/ Manual (SOS) Switch:
      1. Disconnect the No. 1 roof wire connectors and No. 5 antenna cord sub-assembly connector, disengage the 2 claws from the front pillar LH.
      2. Disconnect the No. 5 antenna cord sub-assembly connector, disengage the 2 claws and clamp from the rear pillar LH.
    6. Disconnect the No. 2 antenna cord sub-assembly connector and washer hose, and disengage the 2 claws from the front pillar RH.
    7. Disconnect the No. 1 roof wire connector from the sliding roof drive gear assembly.
    8. Disengage the 12 claws and 3 clips.

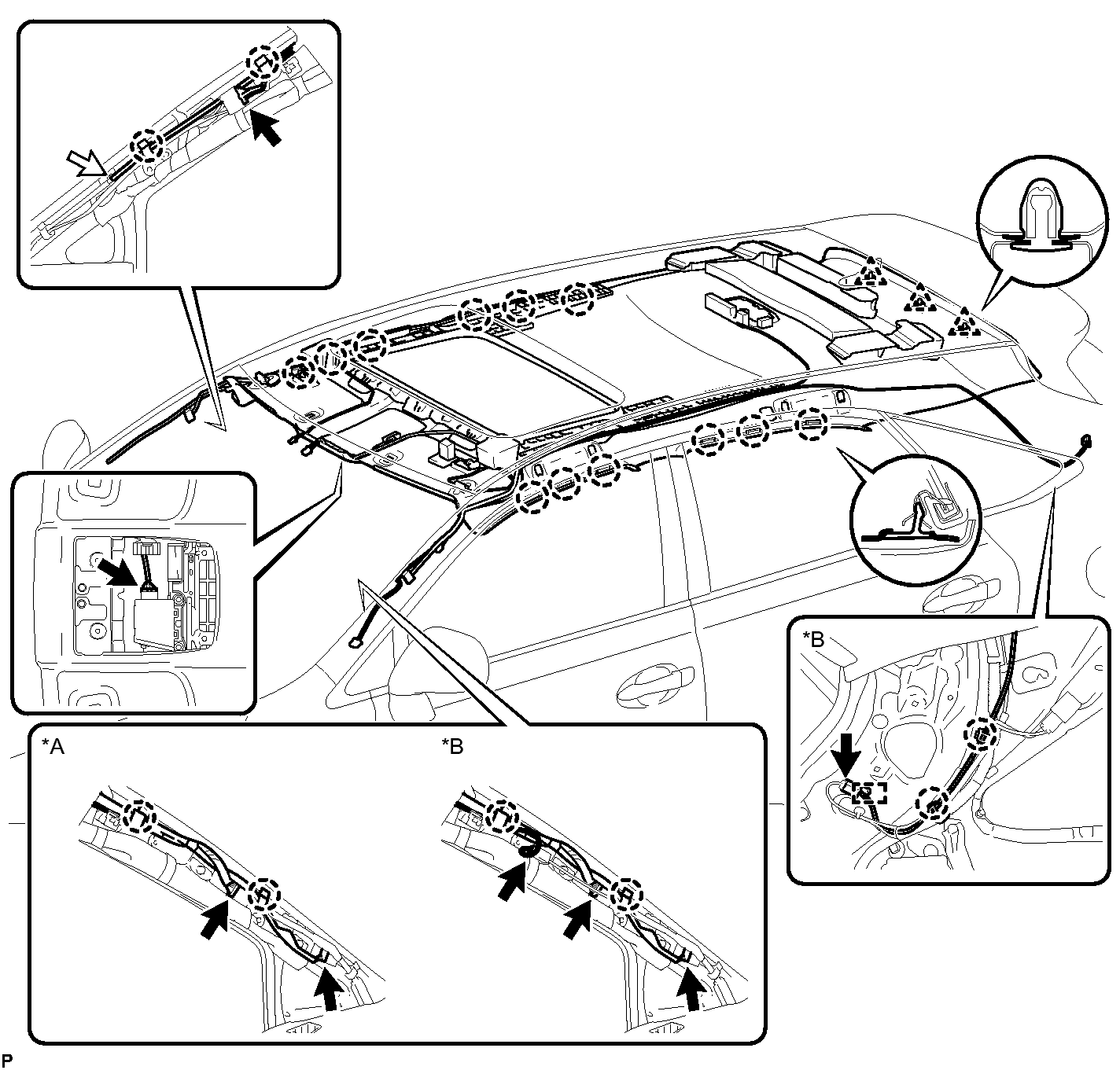

      Fig 46: Disengage The 12 Claws And 3 Clips
      GTY271247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A w/o Manual (SOS) Switch *B w/ Manual (SOS) Switch
    9. Disengage the 8 fasteners.

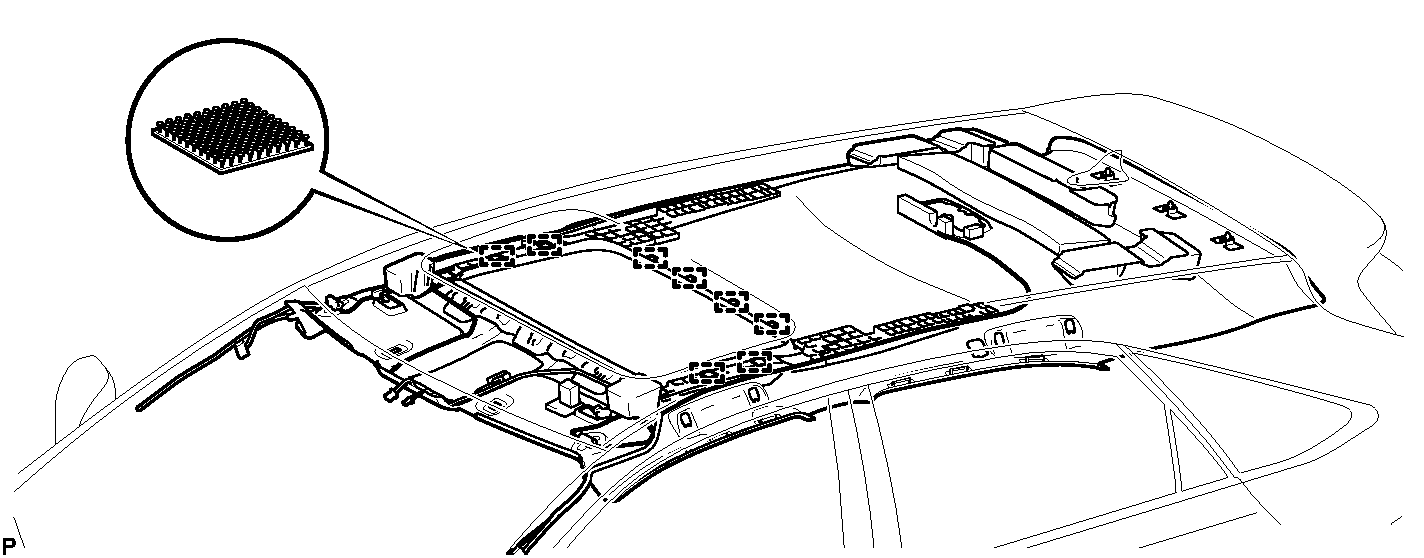

      Fig 47: Engage The 8 Fasteners, 12 Claws And 3 Clips
      GTY287783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Remove the roof headlining assembly from the vehicle through the back door.
      Fig 48: Roof Headlining Assembly
      GTY358811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the roof headlining assembly or body interior.

  64. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the front door opening trim weatherstrip LH.
      Fig 49: Front Door Opening Trim Weatherstrip LH
      GTY359360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  66. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the rear door opening trim weatherstrip LH.
      Fig 50: Rear Door Opening Trim Weatherstrip LH
      GTY356427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and the LH side.

scientia non olet · About LEMON Manuals
