Back Door: Disassembly: Disassembly

  1. REMOVE UPPER BACK WINDOW PANEL TRIM
    1. Disengage the 7 clips and 6 claws, and remove the upper back window panel trim.
      Fig 1: Identifying Upper Back Window Panel Trim, 2-Piece Type Clips & Claws
      GTY268016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 2-piece Type Clip

      HINT:

      If any clips remain on the back door panel after the upper back window panel trim is removed, remove the clips and install them to the upper back window panel trim.

  2. REMOVE TONNEAU COVER SUB-ASSEMBLY
  3. REMOVE BACK DOOR FINISH COVER LH (w/o Power Back Door)
    1. Using a molding remover, disengage the 6 claws and remove the back door finish cover LH.
      Fig 2: Disengage The 6 Claws
      GTY354508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BACK DOOR TRIM BASE (w/ Power Back Door)
    1. Using a molding remover, disengage the 4 claws and remove the back door trim base.
      Fig 3: Disengage The 4 Claws
      GTY353662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE BACK DOOR FINISH COVER RH (w/o Power Back Door)
    1. Using a molding remover, disengage the 6 claws and remove the back door finish cover RH.
      Fig 4: Disengage The 6 Claws
      GTY354512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE DOOR PULL HANDLE WITH SWITCH (w/ Power Back Door)
    1. Using a molding remover, disengage the 6 claws and remove the door pull handle with switch.
      Fig 5: Disengage The 6 Claws
      GTY353665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
  7. REMOVE BACK DOOR LOCK COVER
    1. Disengage the 4 claws and remove the back door lock cover.
      Fig 6: Identifying Back Door Lock Cover & Claws
      GTY257388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 ROOM LIGHT ASSEMBLY  . Refer to REMOVAL - Step 2
  9. REMOVE BACK DOOR UPPER TRIM COVER LH
    1. Using a screwdriver, disengage the 2 claws and remove the back door upper trim cover LH as shown in the illustration.
      Fig 7: Disengage The 2 Claws
      GTY354797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  10. REMOVE BACK DOOR UPPER TRIM COVER RH
    1. Using a screwdriver, disengage the 2 claws and remove the back door upper trim cover RH as shown in the illustration.
      Fig 8: Disengage The 2 Claws
      GTY354005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  11. REMOVE BACK DOOR SERVICE HOLE COVER LH
    1. Disengage the 5 claws and remove the back door service hole cover LH.
      Fig 9: Identifying Back Door Service Hole Cover LH & Claws
      GTY273622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE BACK DOOR SERVICE HOLE COVER RH
    1. Disengage the 5 claws and remove the back door service hole cover RH.
      Fig 10: Identifying Back Door Service Hole Cover RH & Claws
      GTY274258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE BACK DOOR TRIM PANEL ASSEMBLY
    1. Remove the 2 screws.
      Fig 11: 2 Screws
      GTY354211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Grab the service holes by hand.
      NOTE:

      Make sure to hold the clip bases as shown in the illustration.

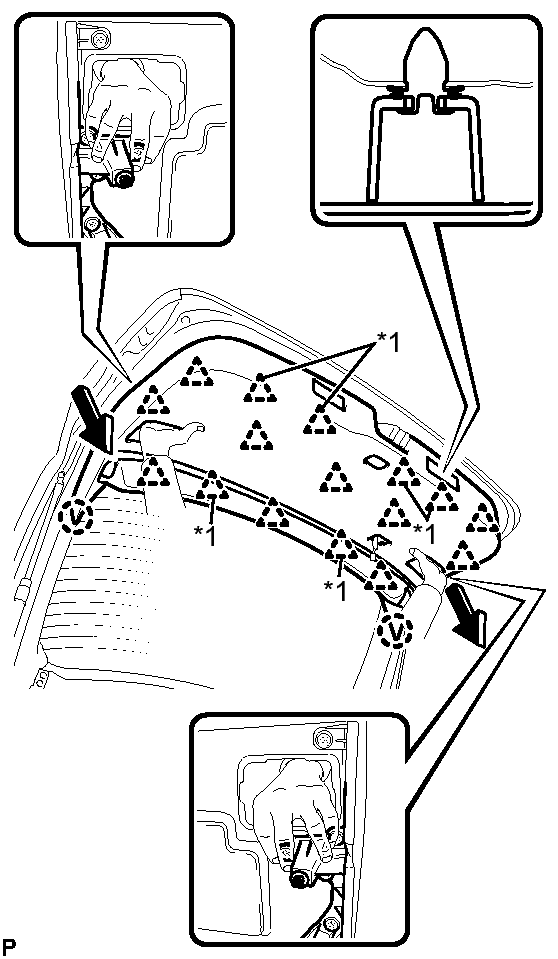

      Fig 12: Disengage The 2 Claws And 16 Clips
      GTY357308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the back door trim panel assembly in the direction shown by the arrows in the illustration (pull perpendicular to the surface of the trim panel) to disengage the 2 claws and 16 clips, and remove the back door trim panel assembly.
      TEXT IN ILLUSTRATION

      *1 2-piece Type Clip
      NOTE:

      Removing the back door trim panel assembly at an angle may cause deformation or damage. To avoid this, make sure to pull the panel in the direction shown by the arrows (pull perpendicular to the surface of the panel).

      HINT:

      If any clips remain on the back door panel after the back door trim panel assembly is removed, remove the clips and install them to the back door trim panel assembly.

  14. REMOVE BACK DOOR TRIM COVER LH
    1. Disengage the 3 clips and remove the back door trim cover LH.
      Fig 13: Identifying Back Door Trim Cover LH & Clips
      GTY281556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE BACK DOOR TRIM COVER RH
    1. Disengage the 3 clips and remove the back door trim cover RH.
      Fig 14: Identifying Back Door Trim Cover RH & Clips
      GTY282132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE BACK DOOR LOCK ASSEMBLY (w/o Power Back Door)
    1. Disconnect the connector.
      Fig 15: Identifying Connector
      GTY255800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and back door lock assembly.
      Fig 16: Remove the 3 bolts
      GTY256836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE BACK DOOR LOCK ASSEMBLY (w/ Power Back Door)
    1. Disconnect the connector.
      Fig 17: Install the bolt
      GTY256464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the bolt.
    4. Remove the 3 bolts and back door lock assembly.
      Fig 18: Remove the 3 bolts
      GTY257003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE LOWER BACK DOOR STOPPER LH
    1. Remove the bolt and lower back door stopper LH.
      Fig 19: Identifying Lower Back Door Stopper LH & Bolt
      GTY255546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE LOWER BACK DOOR STOPPER RH

    HINT:

    Use the same procedure for the RH side and LH side.

  20. REMOVE POWER BACK DOOR TOUCH SENSOR ASSEMBLY LH (w/ Power Back Door)  See step  11
  21. REMOVE POWER BACK DOOR TOUCH SENSOR ASSEMBLY RH (w/ Power Back Door)

    HINT:

    Use the same procedure for the RH side and LH side.

  22. DISCONNECT POWER BACK DOOR UNIT ASSEMBLY (w/ Power Back Door)
    1. Remove the 2 bolts and disconnect the power back door unit assembly.
      Fig 20: Identifying Power Back Door Unit Assembly & Bolts
      GTY274089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. DISCONNECT BACK DOOR STAY ASSEMBLY LH
    1. Using a screwdriver, remove the stop ring along the groove.
      Fig 21: Stop Ring Along The Groove
      GTY358964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Release the ball joint and disengage the back door stay assembly LH.
      NOTE:

      Remove the back door stay assembly while supporting the back door by hand.

  24. DISCONNECT BACK DOOR STAY ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and LH side.

  25. REMOVE BACK DOOR LOWER STAY BRACKET LH  See step  6
  26. REMOVE BACK DOOR LOWER STAY BRACKET RH

    HINT:

    Use the same procedure for the RH side and LH side.

  27. REMOVE AMPLIFIER ANTENNA ASSEMBLY  . Refer to REMOVAL - Step 18
  28. REMOVE REAR LIGHT ASSEMBLY LH  . Refer to REMOVAL - Step 14
  29. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and LH side.

  30. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY  . Refer to REMOVAL - Step 13
  31. REMOVE LICENSE PLATE LIGHT ASSEMBLY LH  . Refer to REMOVAL - Step 14
  32. REMOVE LICENSE PLATE LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and LH side.

  33. REMOVE REAR TELEVISION CAMERA ASSEMBLY (w/ Rear Monitor)  . Refer to REMOVAL - Step 13
  34. REMOVE REAR SPOILER SUB-ASSEMBLY  . Refer to REMOVAL - Step 2
  35. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY  . Refer to REMOVAL - Step 3
  36. REMOVE REAR WIPER MOTOR GROMMET  . Refer to REMOVAL - Step 4
  37. REMOVE REAR WIPER MOTOR AND BRACKET ASSEMBLY  . Refer to REMOVAL - Step 5
  38. REMOVE REAR WASHER NOZZLE  . Refer to REMOVAL - Step 6
  39. REMOVE ROOF HEADLINING ASSEMBLY

    HINT:

    Refer to the procedure up to Remove Roof Headlining Assembly. Refer to REMOVAL .

  40. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY  . Refer to REMOVAL - Step 6
  41. REMOVE RADIO SETTING CONDENSER  . Refer to REMOVAL - Step 13
