Multiplex Communication System (CAN), Multiplex Communication System (LIN)

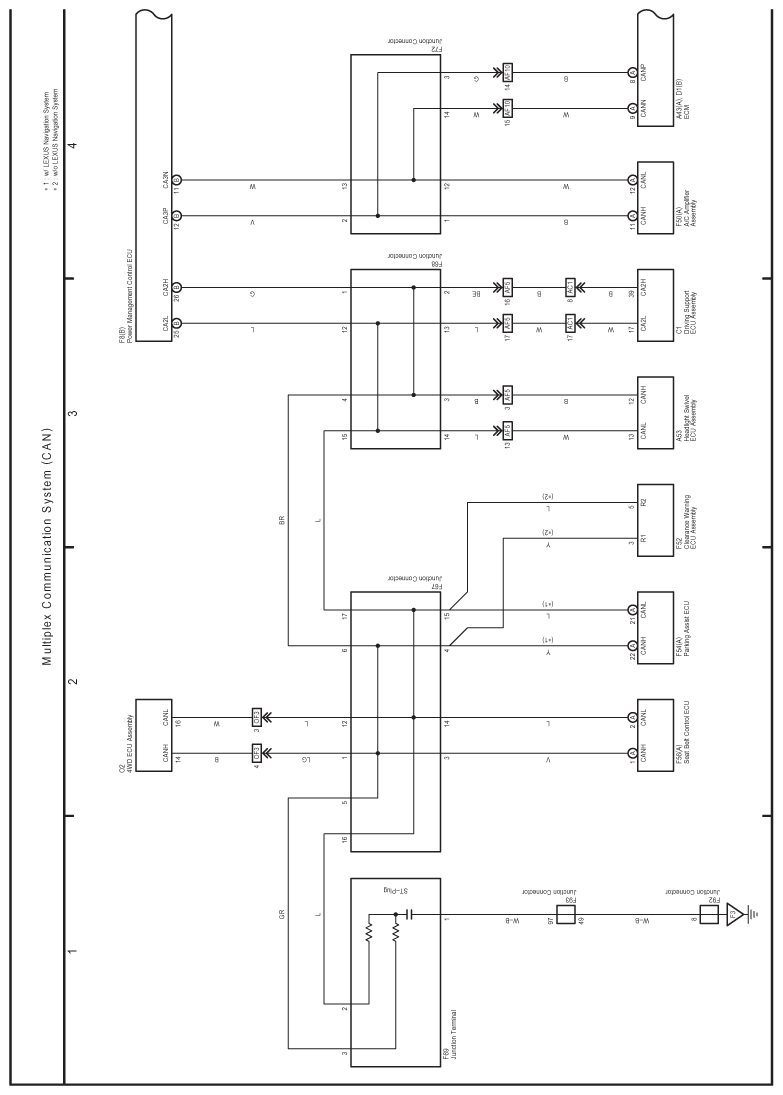

Fig 1: Multiplex Communication System (AVC-LAN) Electrical Wiring Diagram (1 Of 4)
G07576383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

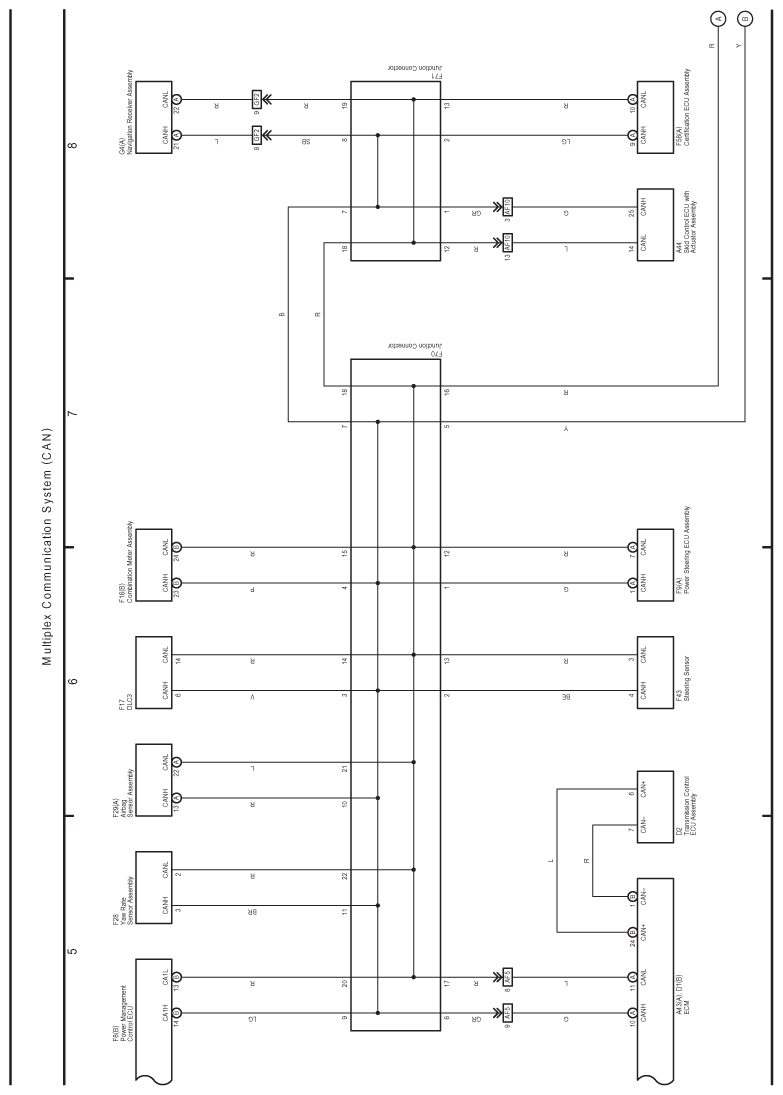

Fig 2: Multiplex Communication System (AVC-LAN) Electrical Wiring Diagram (2 Of 4)
G07576384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

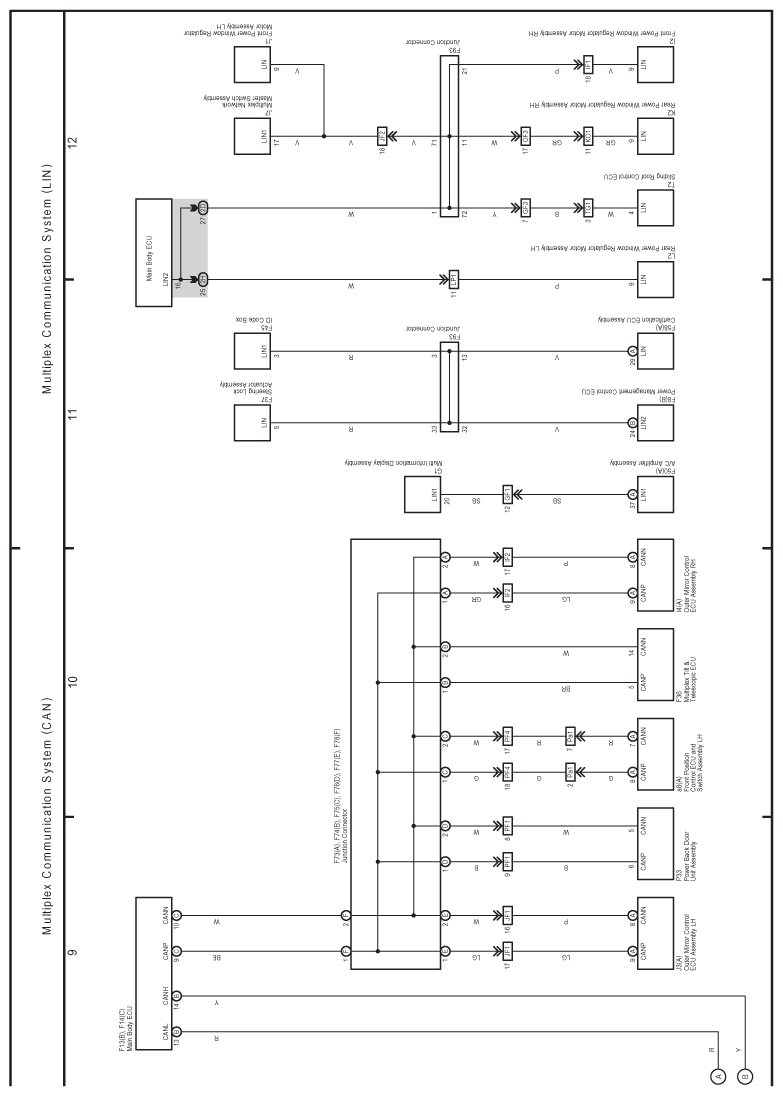

Fig 3: Multiplex Communication System (AVC-LAN) Electrical Wiring Diagram (3 Of 4)
G07576385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
