High Pitched Horn: Components: Illustration

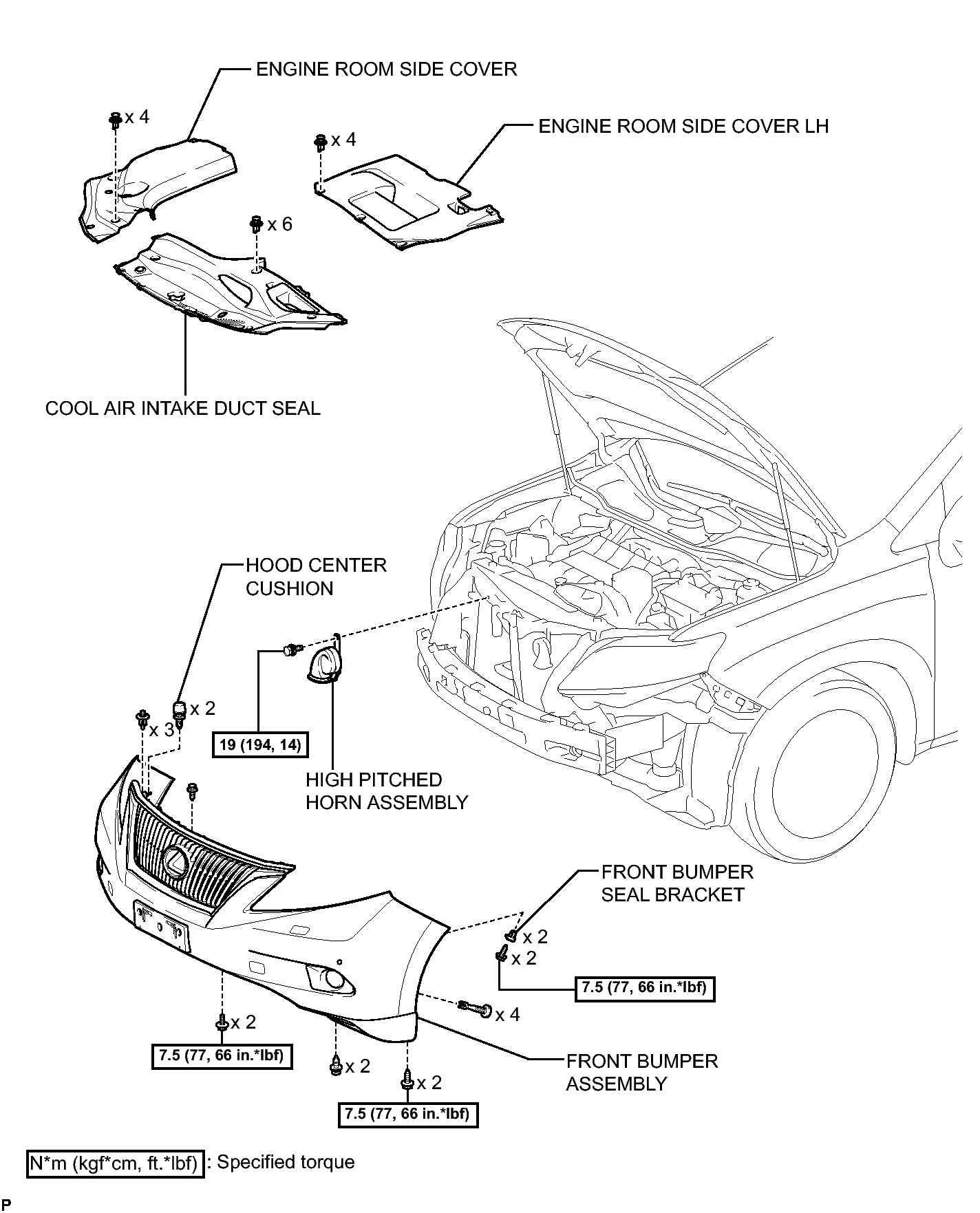

Fig 1: Identifying High Pitched Horn Replacement Components With Torque Specifications

GTY279665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
