Parts Location: Illustration

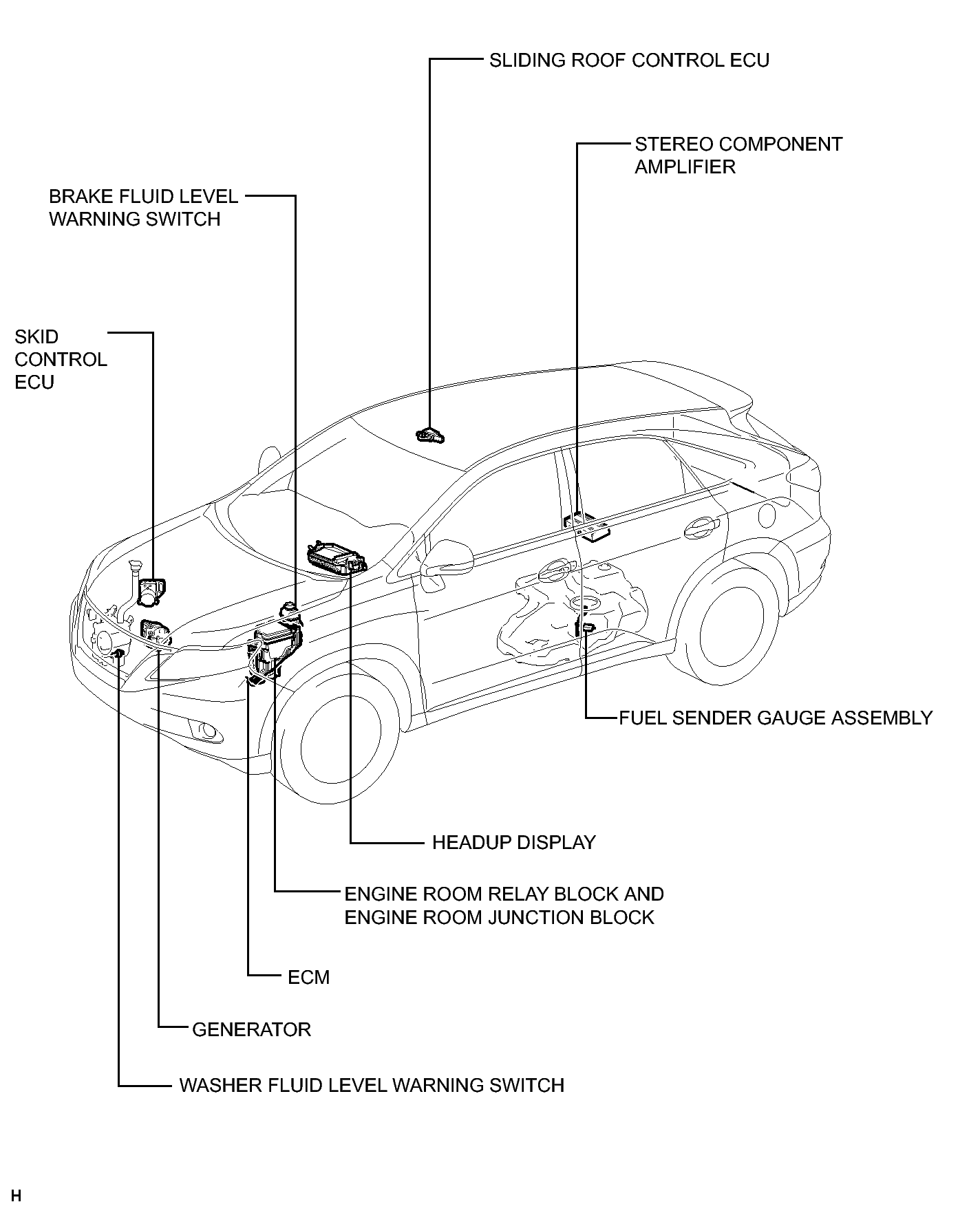

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 3)
GTY278699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

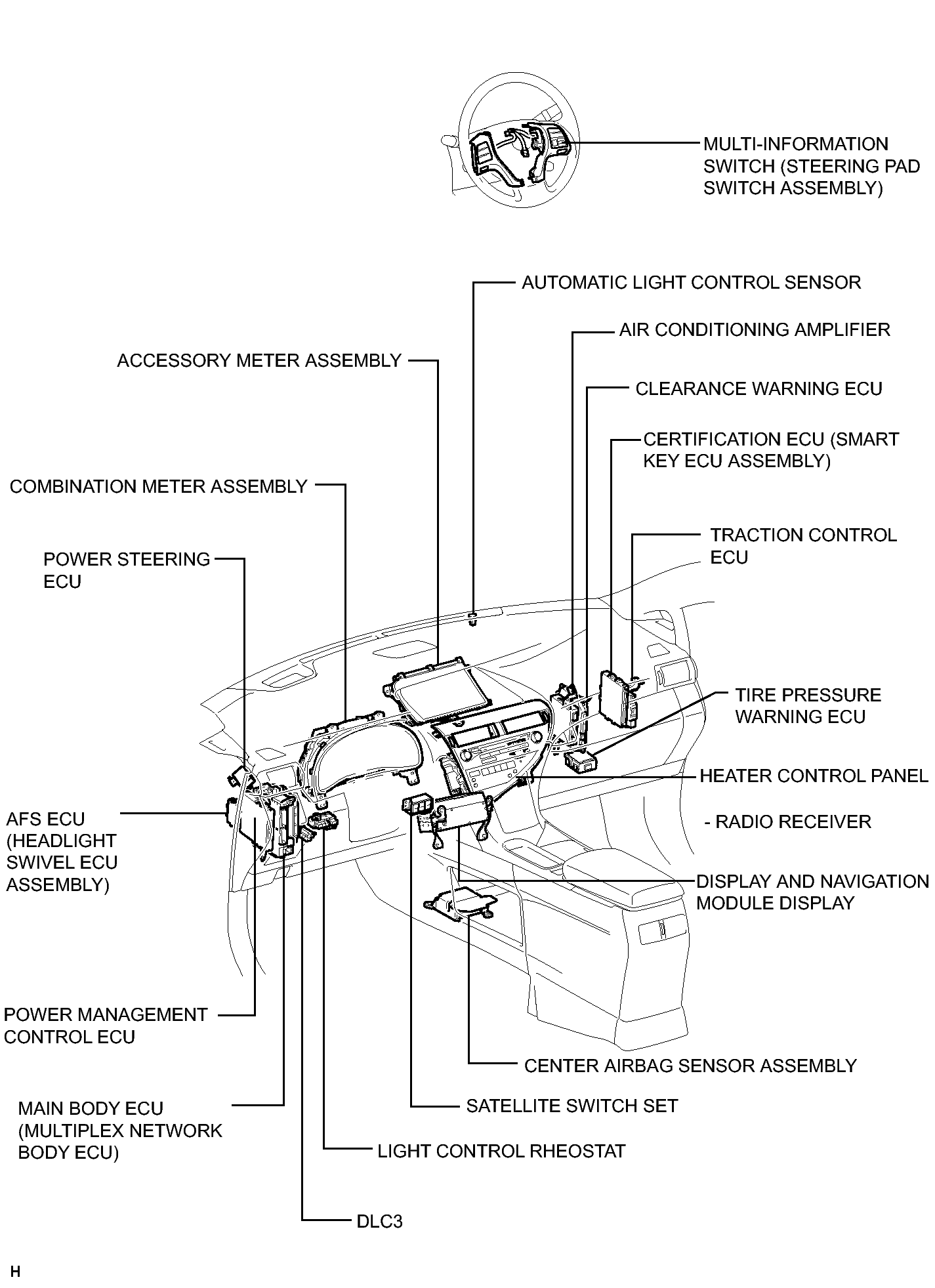

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 3)
GTY271389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

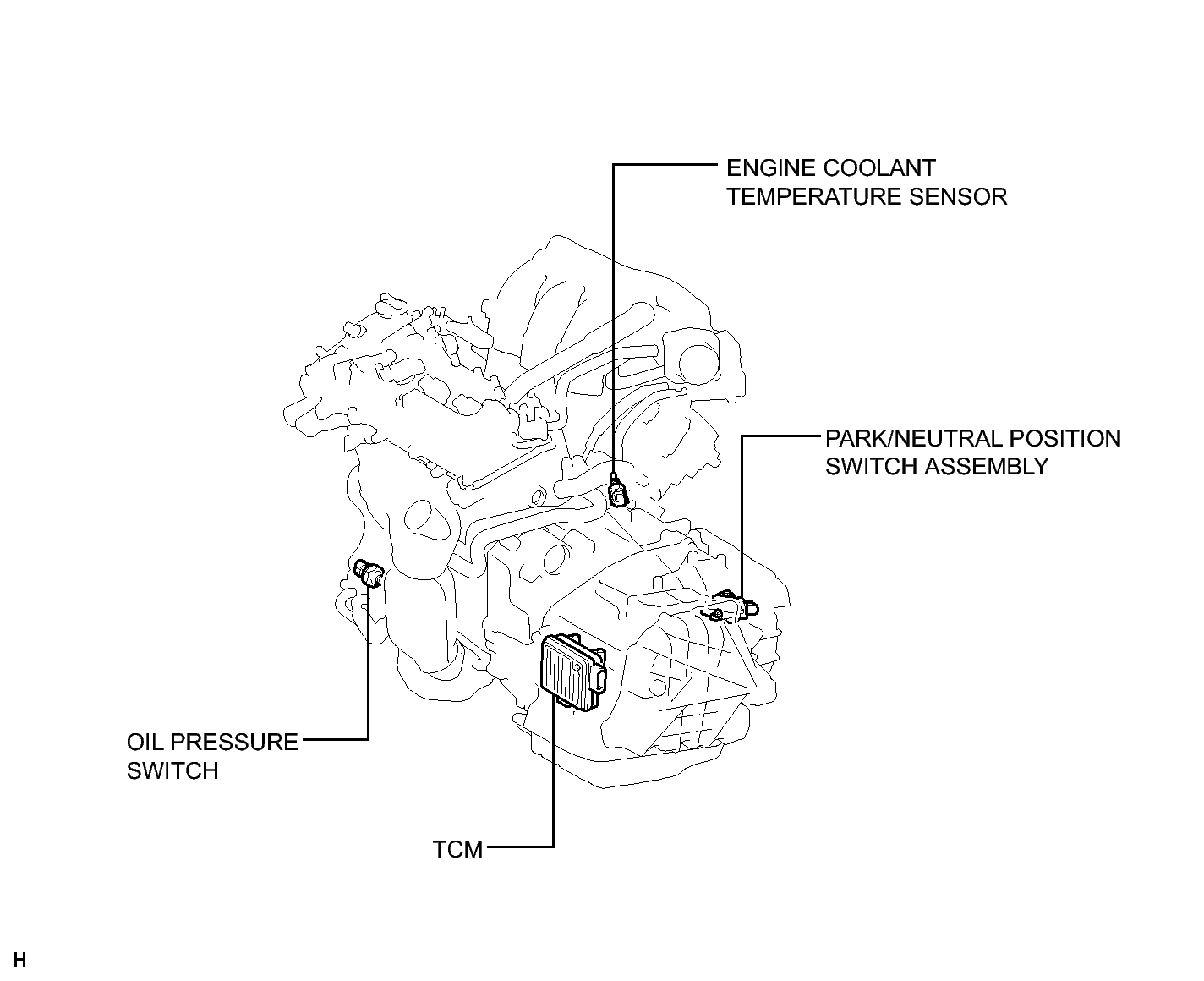

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 3)
GTY264392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
