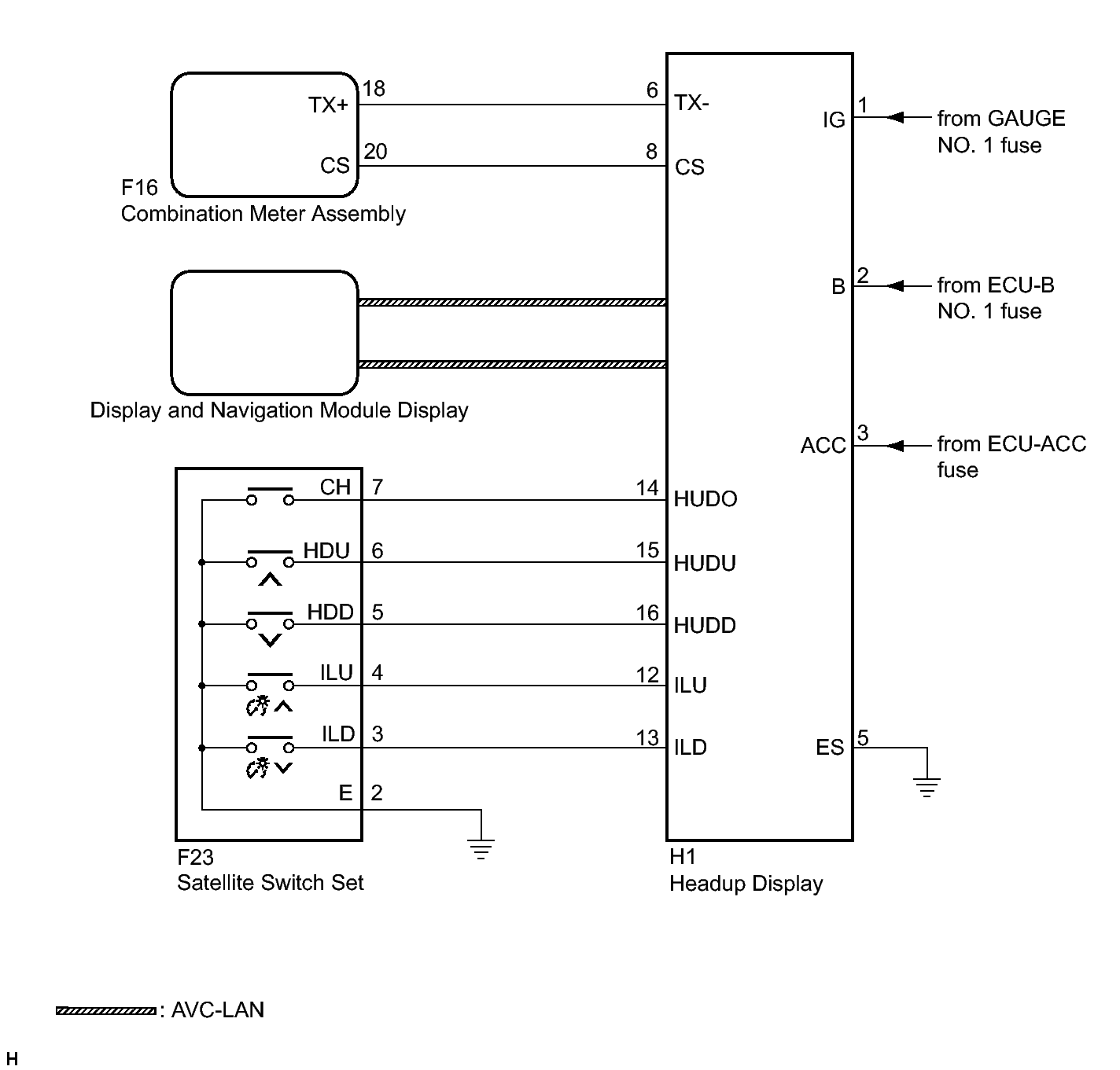

Home >> Lexus >> 2011 >> RX 350 AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Gauges >> Meter / Gauge / Display (Diagnostic Codes & Symptom Tests) >> Meter / Gauge System >> Symptom Tests >> Headup Display Malfunction >> Wiring Diagram
