Seat Belt Warning, SRS

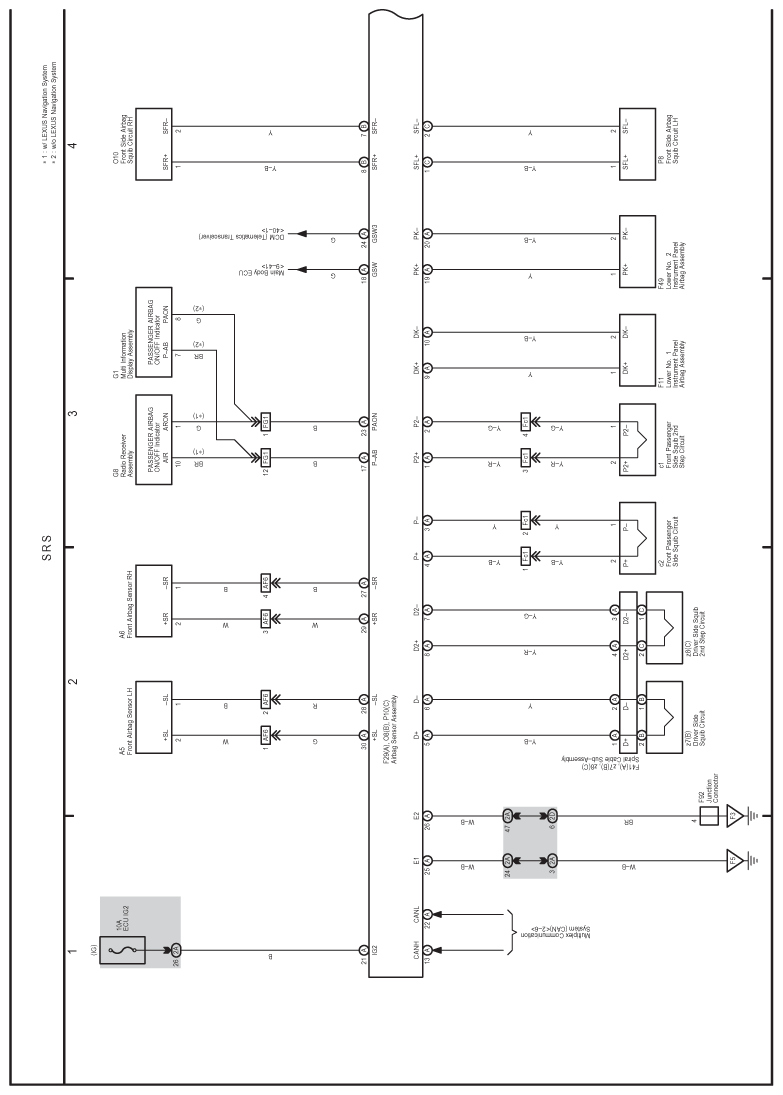

Fig 1: SRS Electrical Wiring Diagram (1 Of 2)
G07576432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

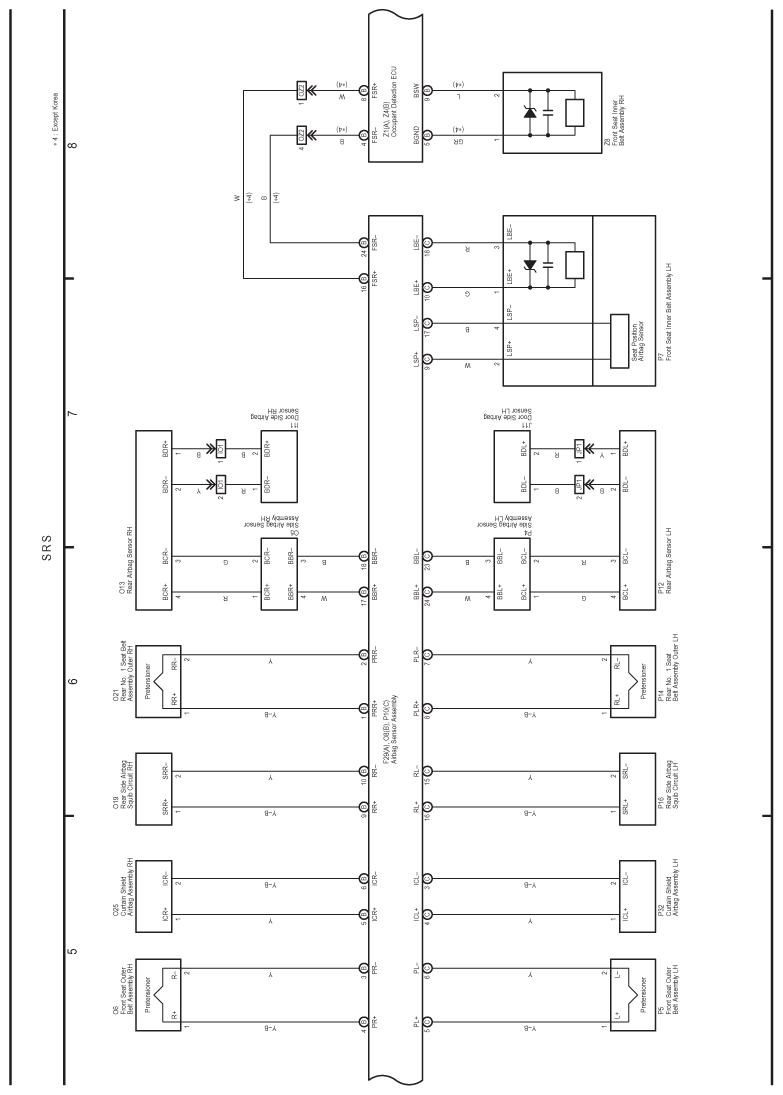

Fig 2: SRS Electrical Wiring Diagram (2 Of 2)
G07576433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

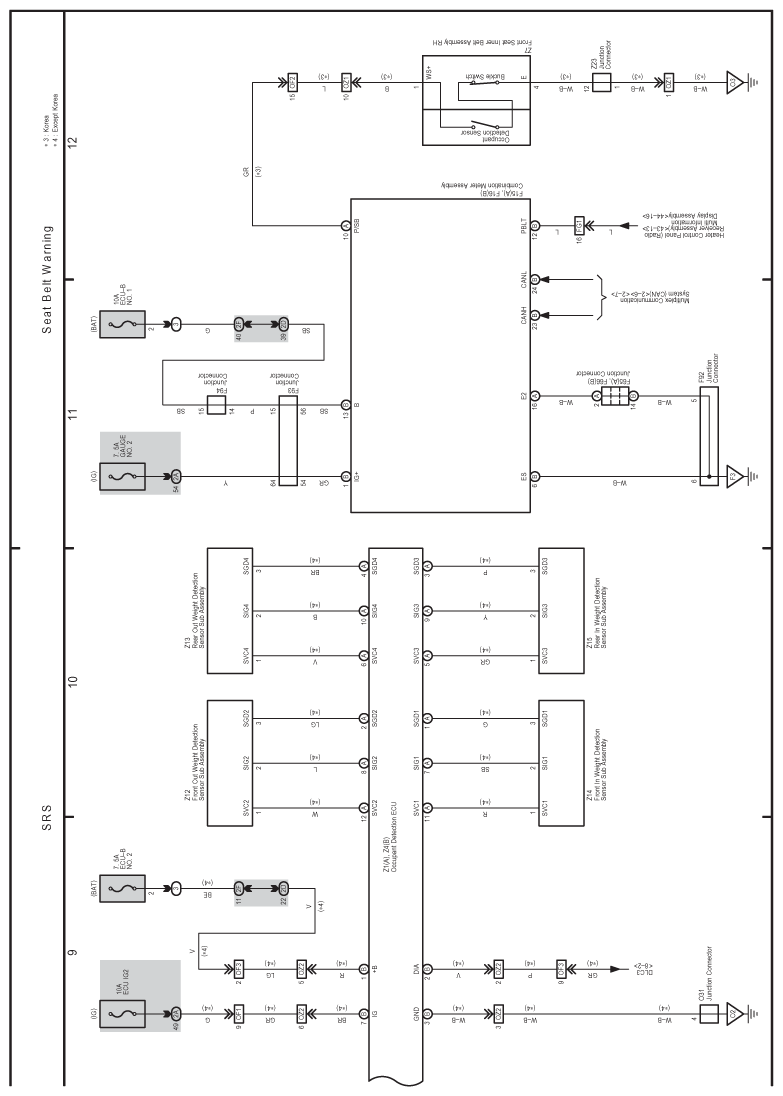

Fig 3: Seat Belt Warning Electrical Wiring Diagram
G07576434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
