Overall Electrical Wiring Diagram
>>
Power Tilt and Power Telescopic
Power Tilt and Power Telescopic

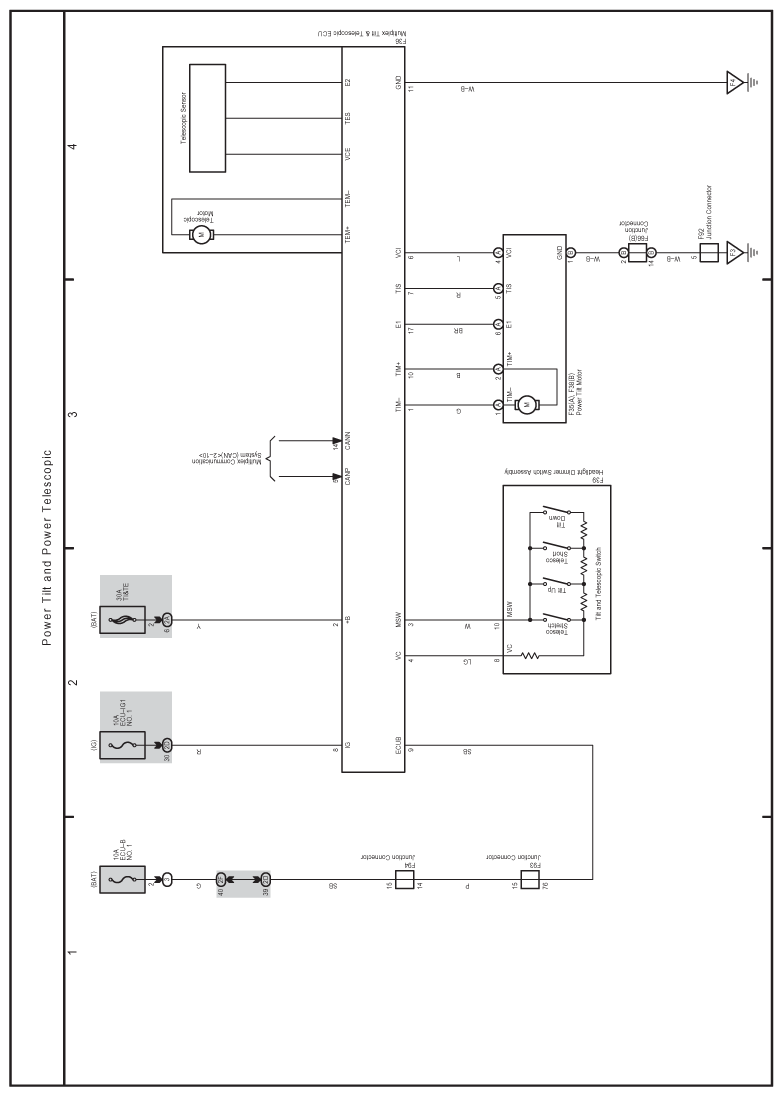

Fig 1: Power Tilt And Power Telescopic Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
