Power Seat (Driver's Seat w/ Seat Position Memory)

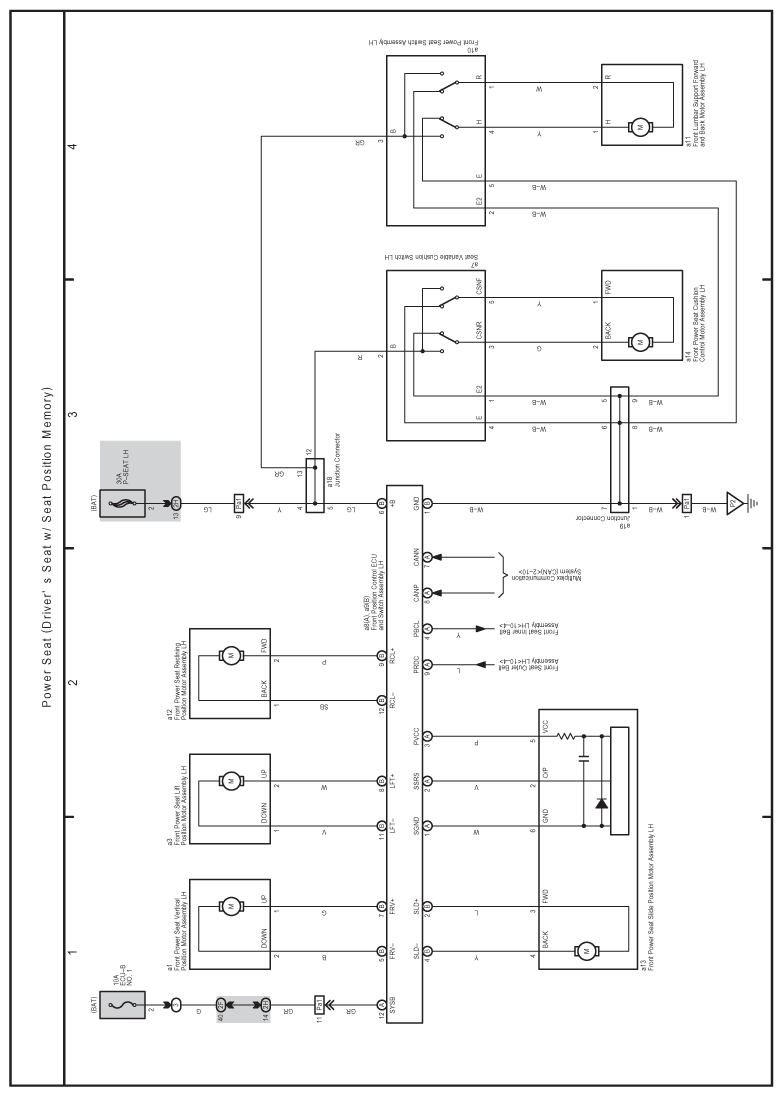

Fig 1: Power Seat (Drivers Seat W/ Seat Position Memory) Electrical Wiring Diagram

G07576443

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
