Home >> Lexus >> 2011 >> RX 350 AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Power Back Door

Power Back Door

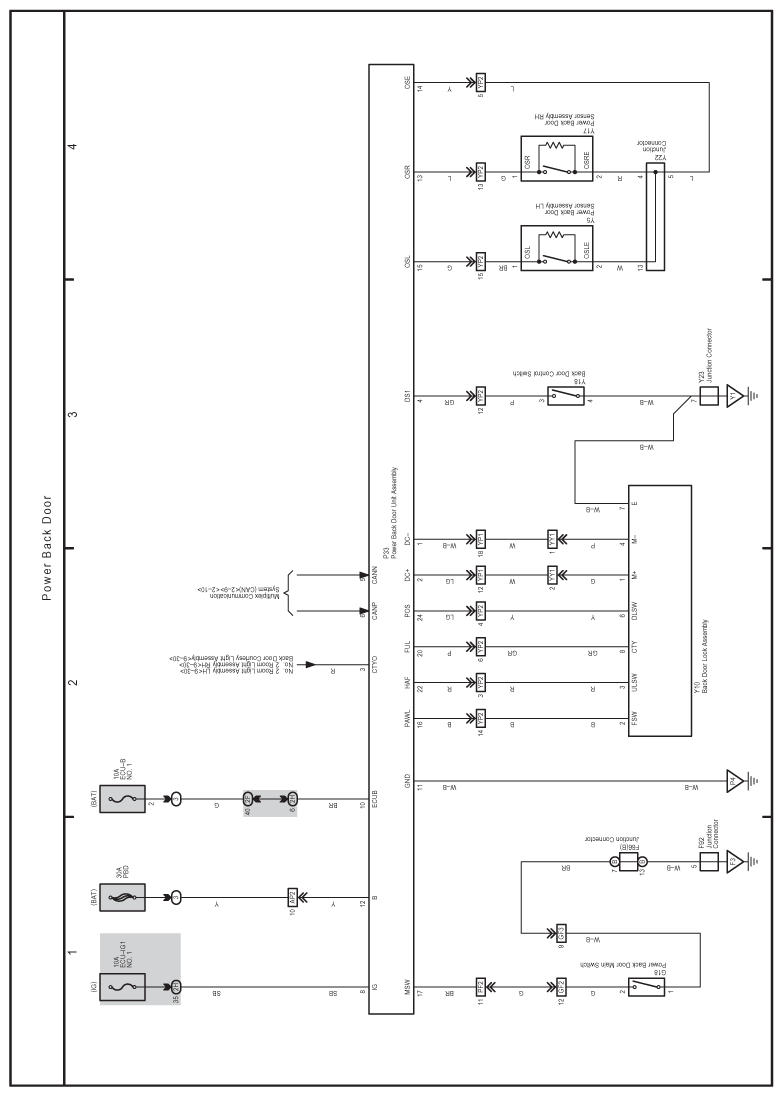

Fig 1: Power Back Door Electrical Wiring Diagram

G07576422

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
