How To Read This Section

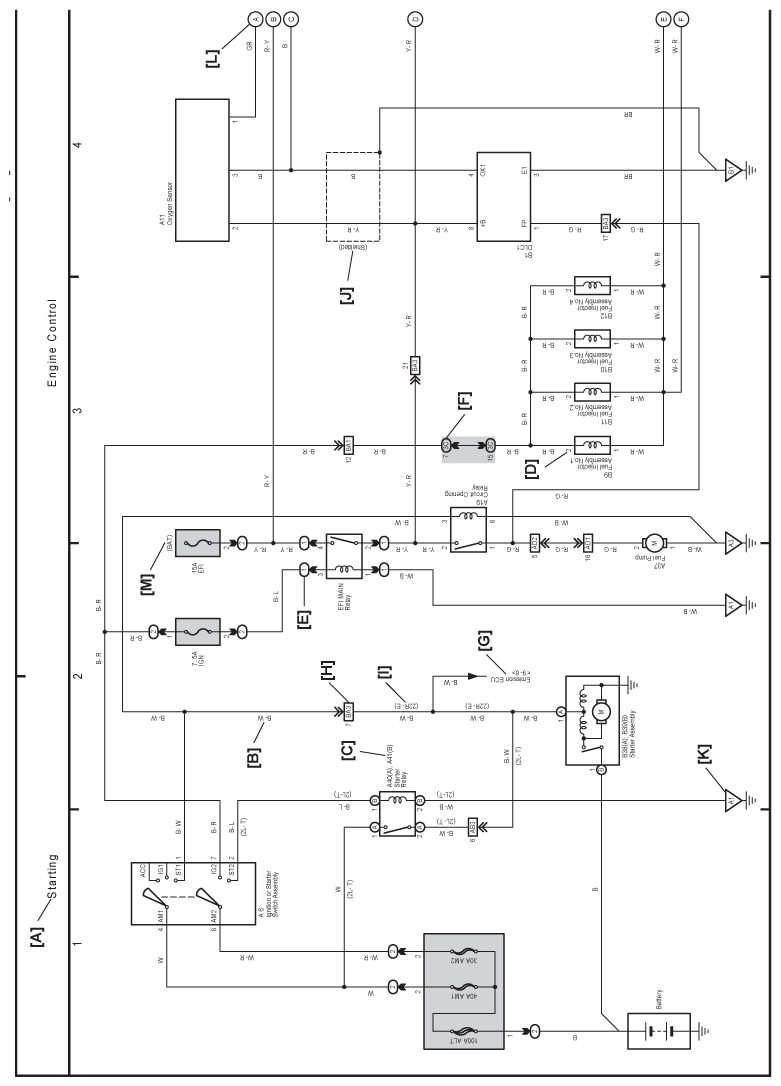

Fig 1: Engine Control Electrical Circuit Diagram (Example)
G07576378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

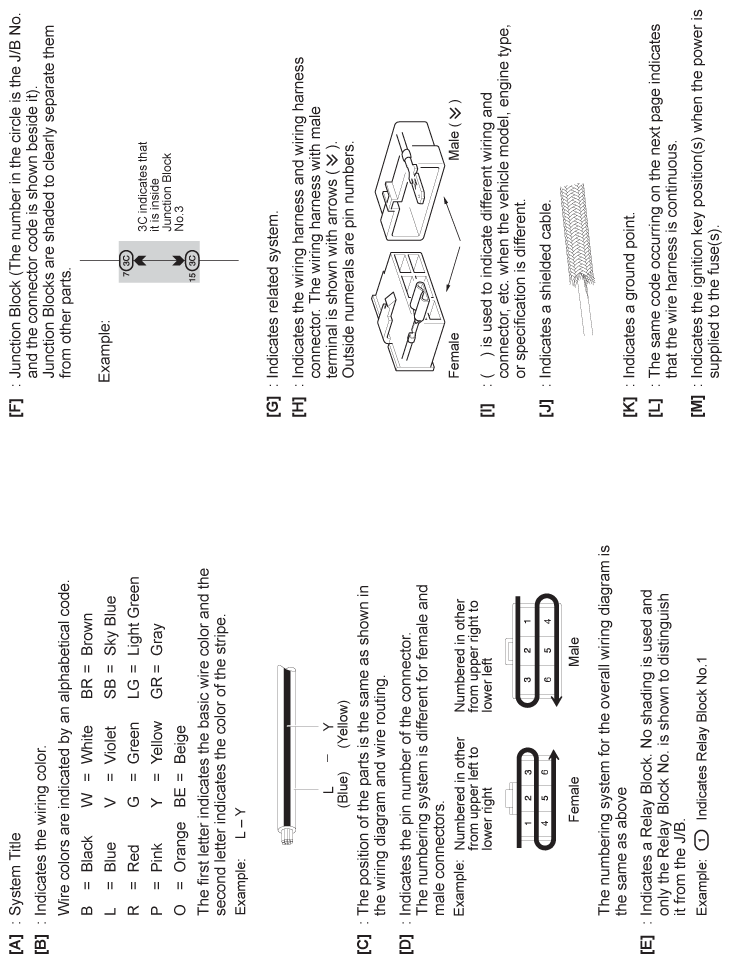

Fig 2: Engine Control Electrical Circuit Legend
G07576379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
