Front Wiper and Washer (w/o Auto Wiper System)

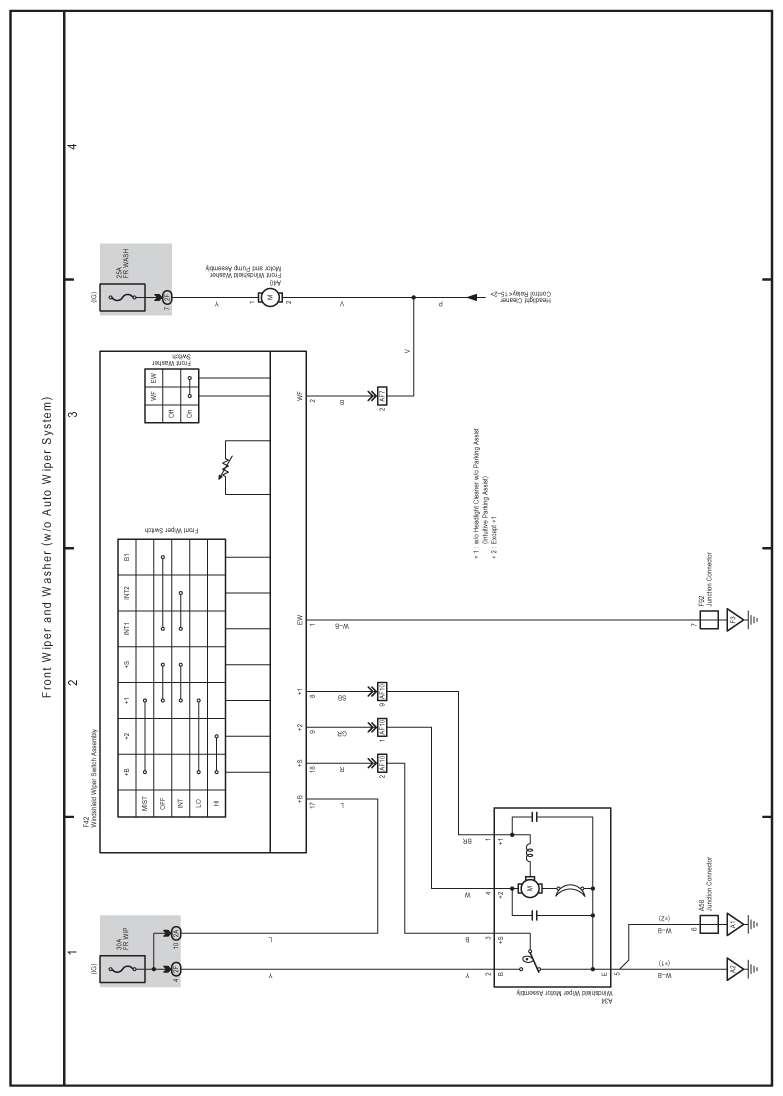

Fig 1: Front Wiper And Washer (W/O Auto Wiper System) Electrical Wiring Diagram

G07576438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
