Front Wiper and Washer (w/ Auto Wiper System)

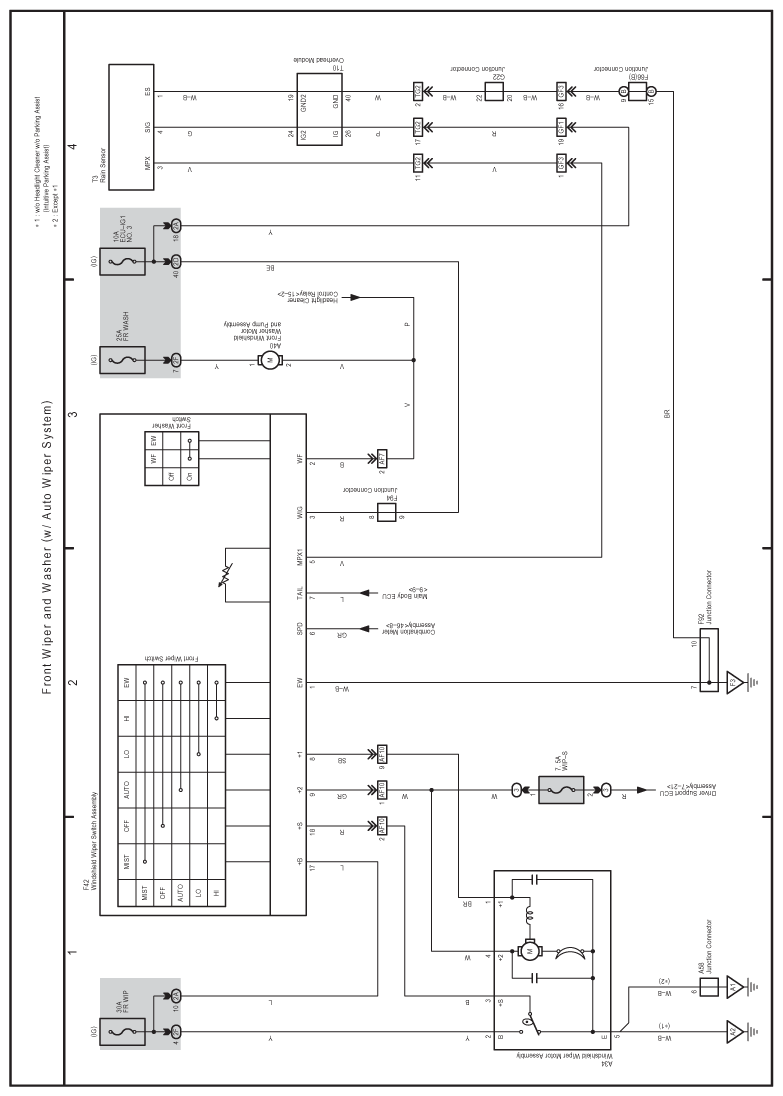

Fig 1: Front Wiper And Washer (W/ Auto Wiper System) Electrical Wiring Diagram

G07576437

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
